Telephone Wall Jack

The telephone wall jack is an essential component to using a telephone or fax machine. If your phone, fax machine or other communication device matches the following telephone wall sockets, please do not hesitate to contact us.

Description

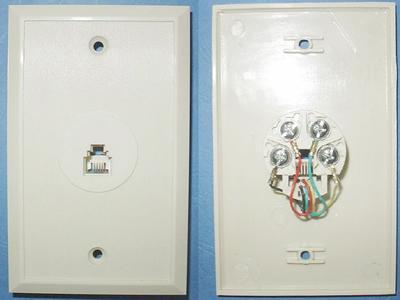

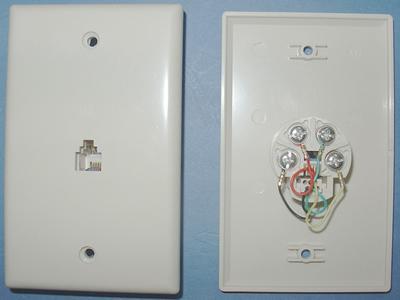

This is a US phone and data wall plate. Connect the arranged internal box telephone wires to their proper locations, and attach them using screws. The settled US RJ11 telephone socket can be connected to a phone or a fax machine using a RJ11 extension cable. The case shell is made using ABS and features a better ductility, and is impact, high, and low temperature resistance. The plate is suitable for telephones, fax machines or any other communication devices.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case shell: ABS
  RJ11 socket: gold plated phosphor copper

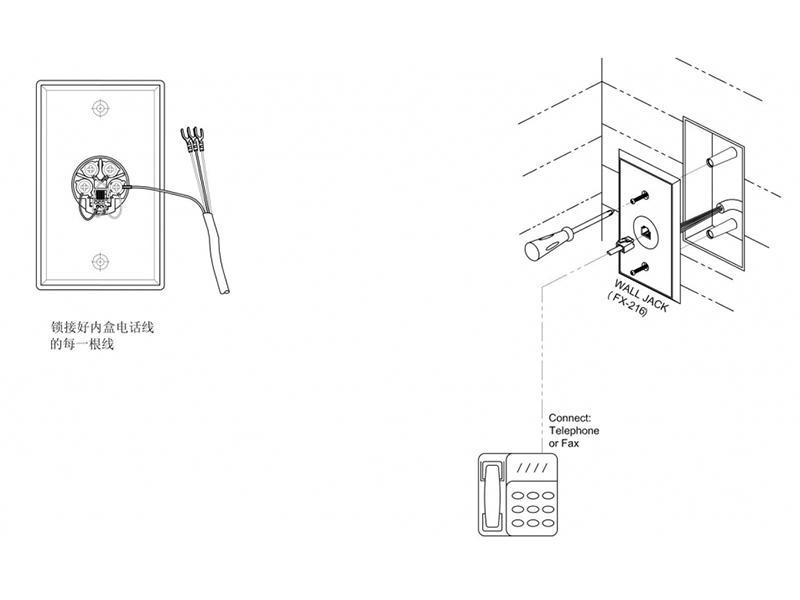

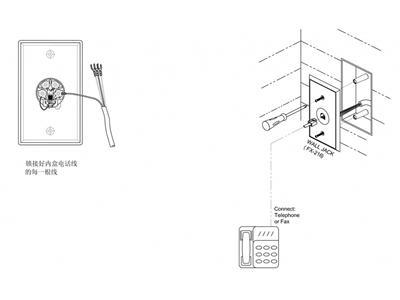

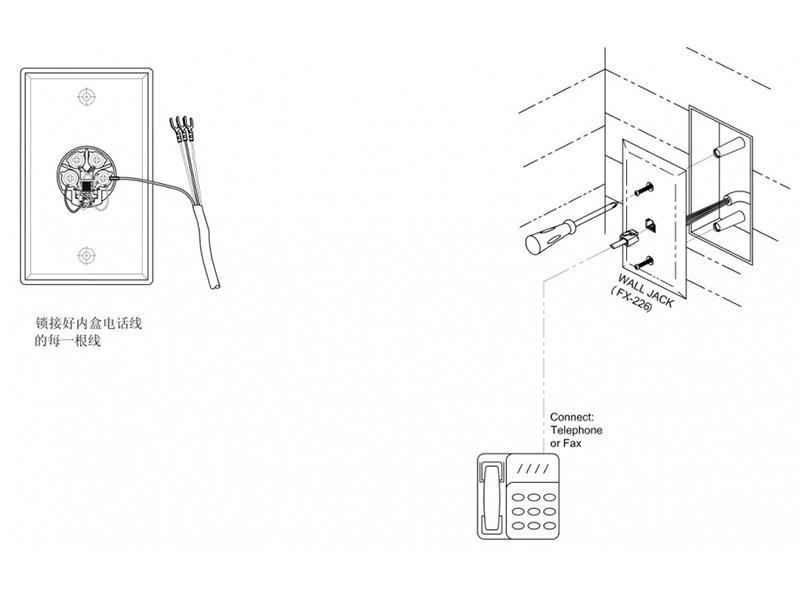

Installation
* Connect the arranged internal box telephone wires to the identified screw terminals to connect the signal.
* Fix the wall jack on the internal box using the attached screws.
* Connect the wall jack to a phone or a fax machine with the use of an RJ11 extension cable.

Description

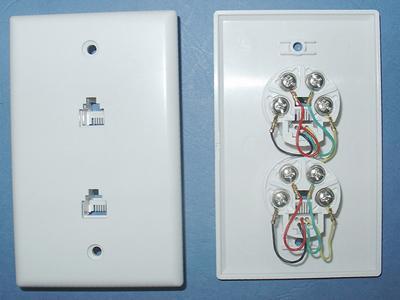

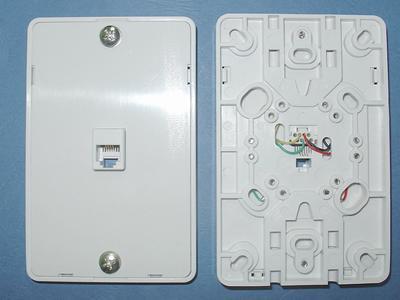

This is a US phone wall plate. Connect the arranged internal box telephone wires to their proper locations, and attach them using screws. The settled US RJ11 telephone socket can be connected to a phone or a fax machine using an RJ11 extension cable. The case shell is made using ABS and features a better ductility, and is impact, high, and low temperature resistance. The plate is suitable for telephones, fax machines or any other communication devices.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case shell: ABS
  RJ11 socket: gold plated phosphor copper

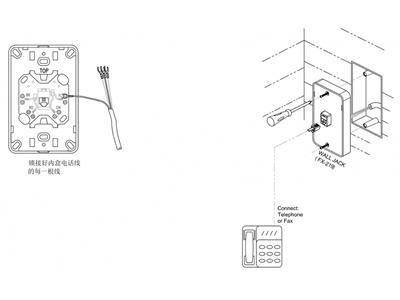

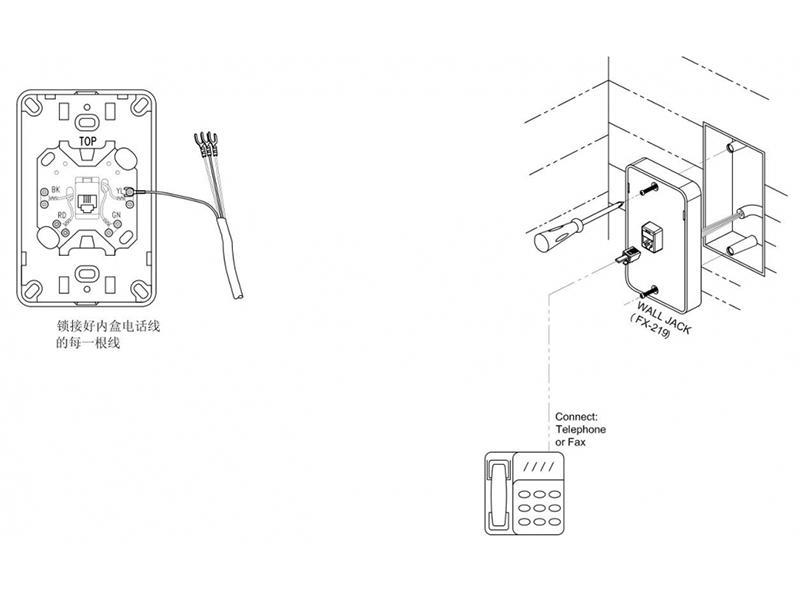

Installation
* Connect the arranged internal box telephone wires to the identified screw terminals to connect the signal.
* Fix the wall jack on the internal box using the attached screws.
* Connect the wall jack to a phone or a fax machine with the use of an RJ11 extension cable.

Description

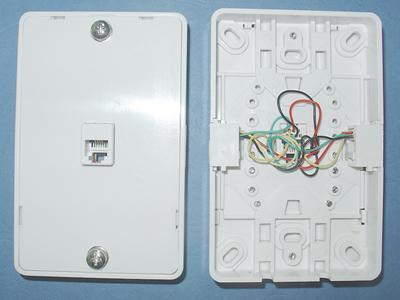

This is a US phone and data wall plate. Connect the arranged internal box telephone wires to their proper locations, and attach them using screws. The settled US RJ11 telephone socket can be connected to a phone or a fax machine using an RJ11 extension cable. The case shell is made using ABS and features a better ductility, and is impact, high, and low temperature resistance. The plate is suitable for telephones, fax machines or any other communication devices.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case shell: ABS
  RJ11 socket: gold plated phosphor copper

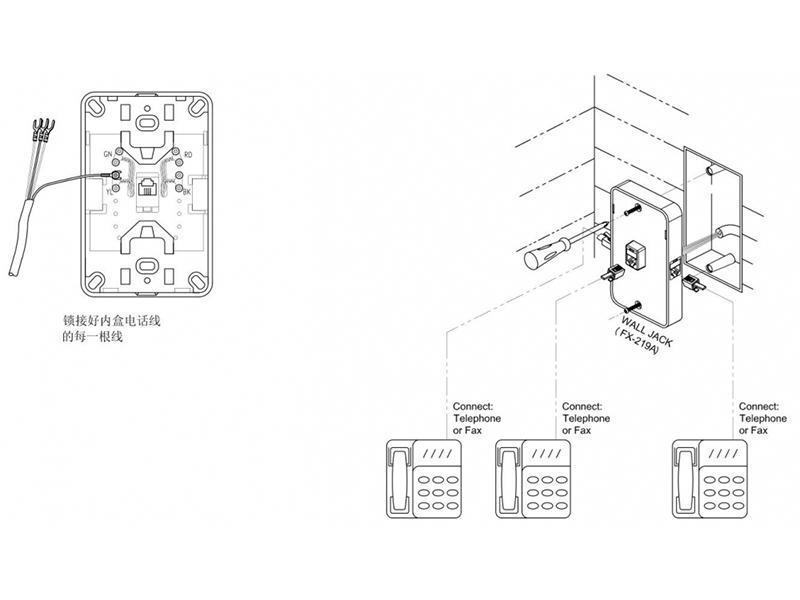

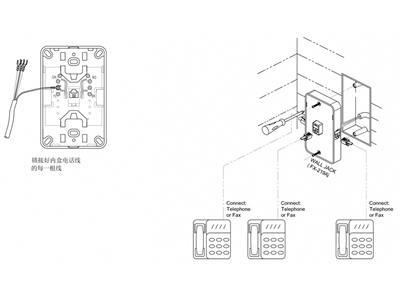

Installation
* Connect the arranged internal box telephone wires to the identified screw terminals to connect the signal.
* Fix the wall jack on the internal box using the attached screws.
* Connect the 3 wall jacks to 3 phone or a fax machines with the use of 3 RJ11 extension cables.

Our company provides all kinds of the accessories for multiline phone systems, networking and communication systems. If the color, shape and jack types do not satisfy your demands, please tell us your needs, and we can customize phone accessories upon request.
