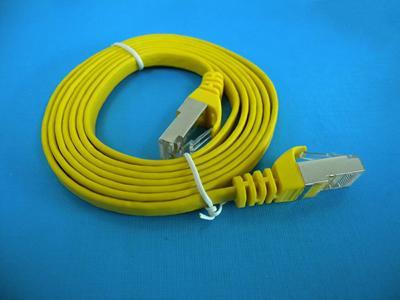

Cat 7 Ethernet Cable

Description
The Cat 7 ethernet cable is used to connect modems (or routers or switches) and network cards. The maximum transfer rate is up to 10Gbps and supports 10 Gigabit Ethernet standard (within 100 meters)

• Performance parameter

  Mechanical durability: 1000 minimum insertion and withdrawal
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for continuous 1 minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  RJ45 case shell: transparent PC
  Chip connector: gold plated pure copper
  Conductor: pure copper
  Transfer rate: up to 10Gbps

• The RJ45 modular plug utilizes PC material as the case shell, thanks to its excellent tenacity, hot and cold temperature resistance, and long retaining pin service life.
• It utilizes copper in the terminals and plate gold, ensuring an outstanding corrosion and oxidation resistance, as well as an excellent electrical conductivity.
• This conductor uses pure copper, which features an excellent electrical conductivity, a low resistivity and a high tensile strength.
• Aluminum foil pair shields and aluminum foil cable shields effectively reduce the crosstalk among line pairs.
• Supports 10 Gigabit Ethernet standard (within 100 meters)
