PCB Mount Jack

PCB Mount Jack
PCB Mount JackPB01 PCB Mount JackPB01D PCB Mount JackPB02 PCB Mount JackPB03 PCB Mount JackPB04 PCB Mount JackPB05E PCB Mount JackPB06 PCB Mount JackPB07 PCB Mount JackPB08 PCB Mount JackPB08E PCB Mount JackPB09 PCB Mount JackPB10 PCB Mount JackPB21 PCB Mount JackPB22 PCB Mount JackPB25 PCB Mount JackPB26 PCB Mount JackPB30A PCB Mount JackPB30B

Description

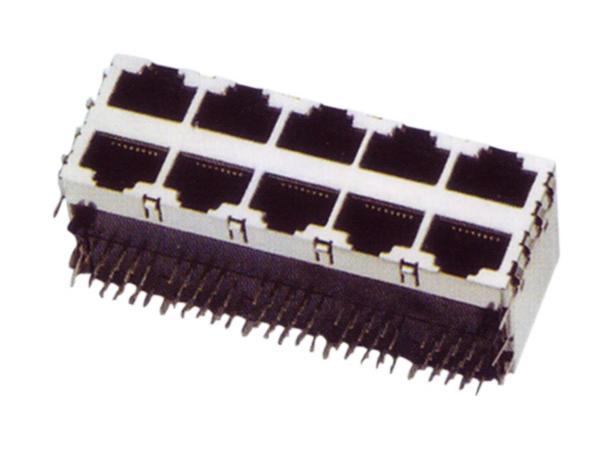

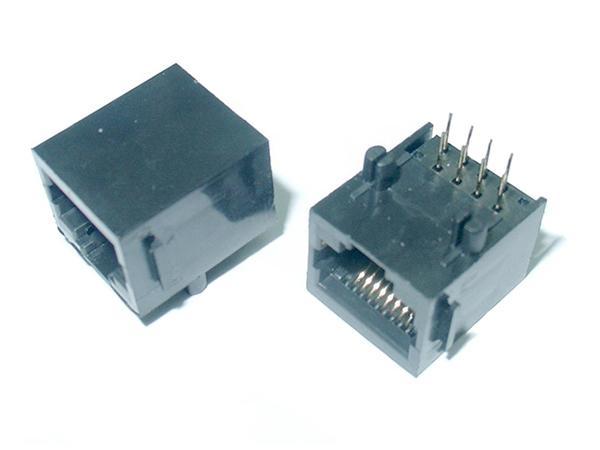

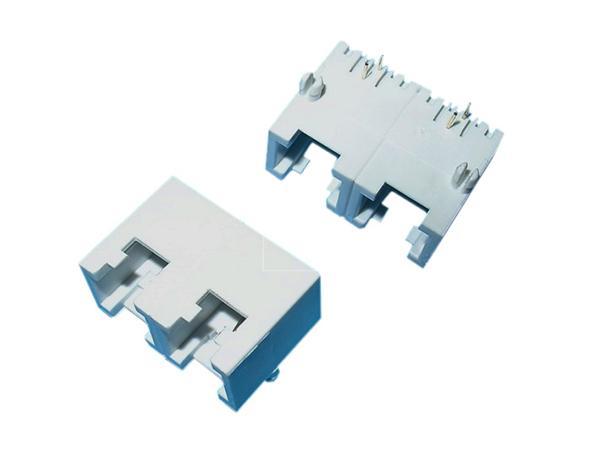

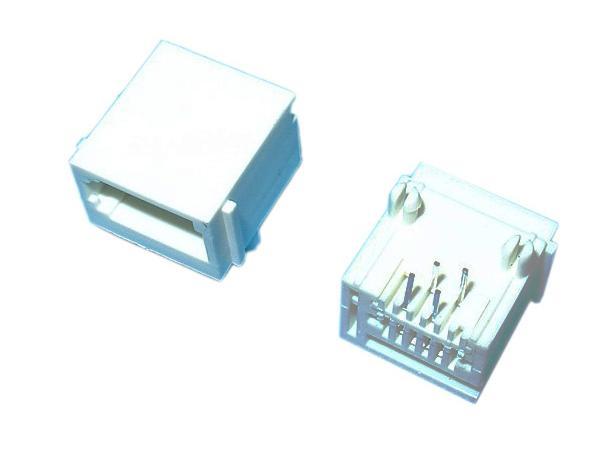

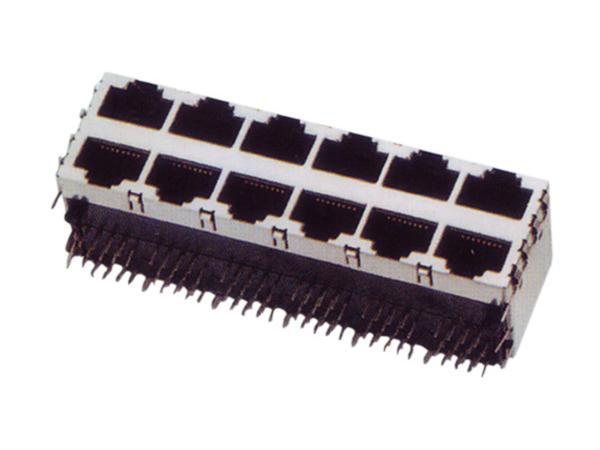

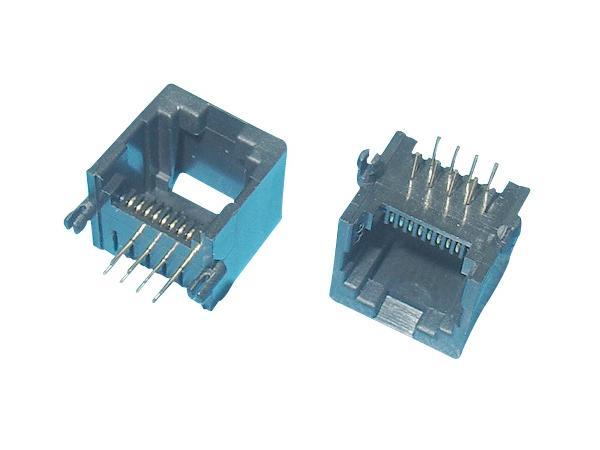

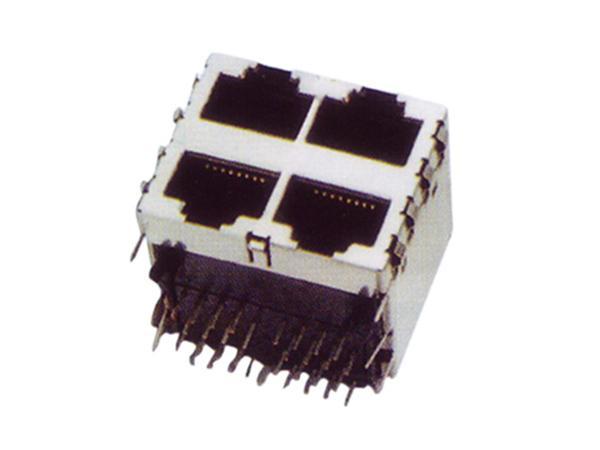

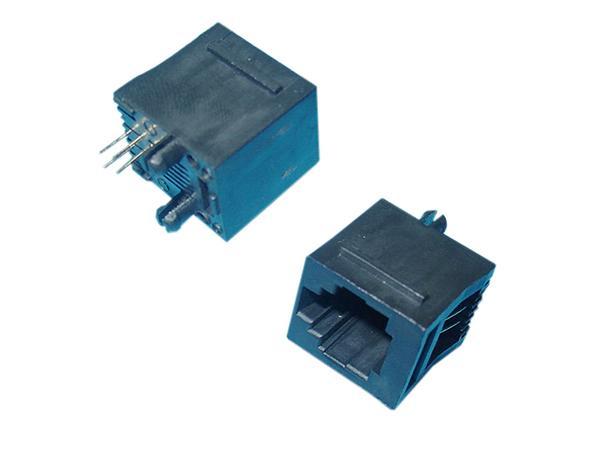

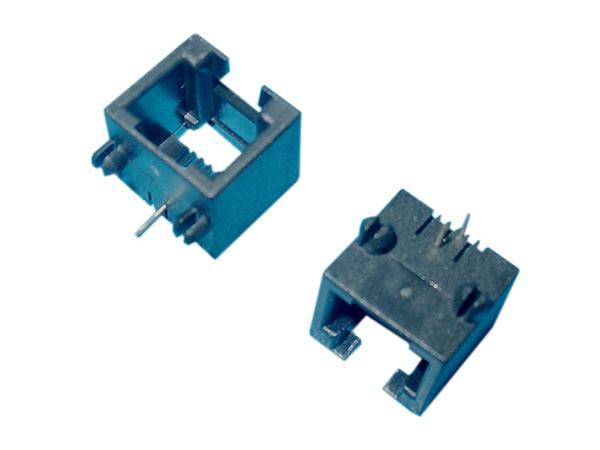

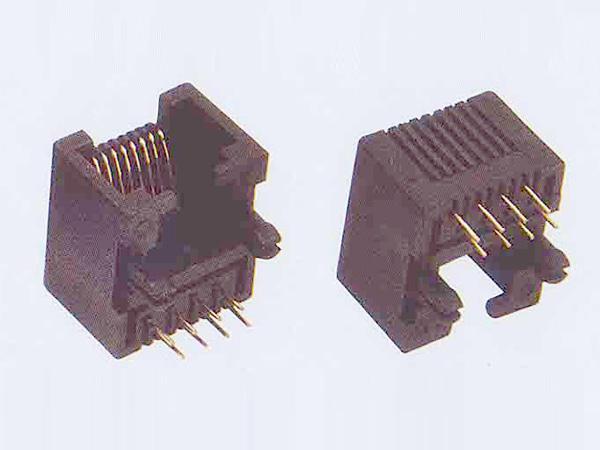

This is a standard module US telephone socket with mounted contact pin. The telecom component can be directly welded on the PCB to ensure convenience for other component production. The case shell is made using PBT, giving it an outstanding ductility, impact, hot, and cold resistance. The wire jack is a standard component, and should not be used alone. Any equipment with telephone communication or internet connection can be paired with the wall jack. The PCB mount jack is widely used within the communication industry for phones, fax machines, and more.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case shell: ABS
      Contact Pin: gold plated phosphor copper
      Hook-up wire insulating layer: PVC
      Hook-up ire conductor: bare copper (BC)
      RJ11 socket: gold plated phosphor copper
Features
  • The case shell utilizes BPT material, which ensures a better ductility and impact resistance. The shell's high temperature resistance protects it through the tin stove, wave soldering, reflow soldering and other processes.
  • The contact pin uses a gold plated phosphor copper, giving it an excellent corrosion resistance, oxidation resistance, electrical conductivity and elasticity- all of which extend the service life.

Our company provides all kinds of the accessories for multiline phone systems, networking and communication systems. If the color, shape and jack types do not satisfy your demands, please tell us your needs, and we can customize phone accessories upon request.
