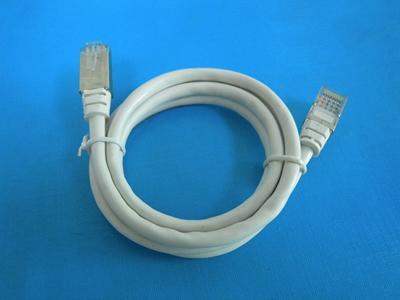

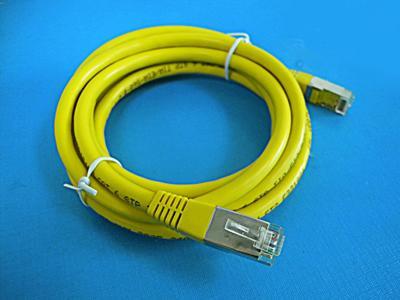

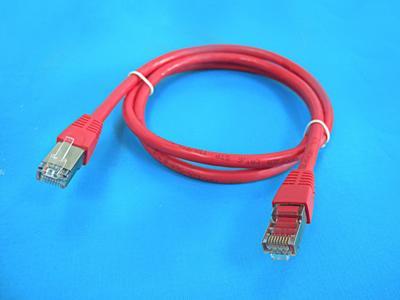

Cat 6 Ethernet Cable

Description
The Cat 6 ethernet cable is used to connect modems (or routers or switches) and a network card. The maximum transfer rate is up to 2400Mbps and supports 10 Gigabit Ethernet standards (within 37 meters)

• Performance parameter

  Mechanical durability: 1000 minimum insertion and withdrawal
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for continuous 1 minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  RJ45 case shell: transparent PC
  Chip connector: gold plated pure copper
  Conductor: pure copper
  Transfer rate: up to 2400Mbps

• The RJ45 modular plug utilizes PC material as the case shell, thanks to its excellent tenacity, hot and cold temperature resistance, and long retaining pin service life.
• It utilizes copper in the terminals and plate gold, ensuring an outstanding corrosion and oxidation resistance, as well as an excellent electrical conductivity.
• This conductor uses pure copper, which features an excellent electrical conductivity, a low resistivity and a high tensile strength.
• The cross separator effectively reduces the crosstalk among line pairs.
• Support 10 Gigabit Ethernet standards (within 37 meters).
