DSL Filter Splitter with French Jack
Description

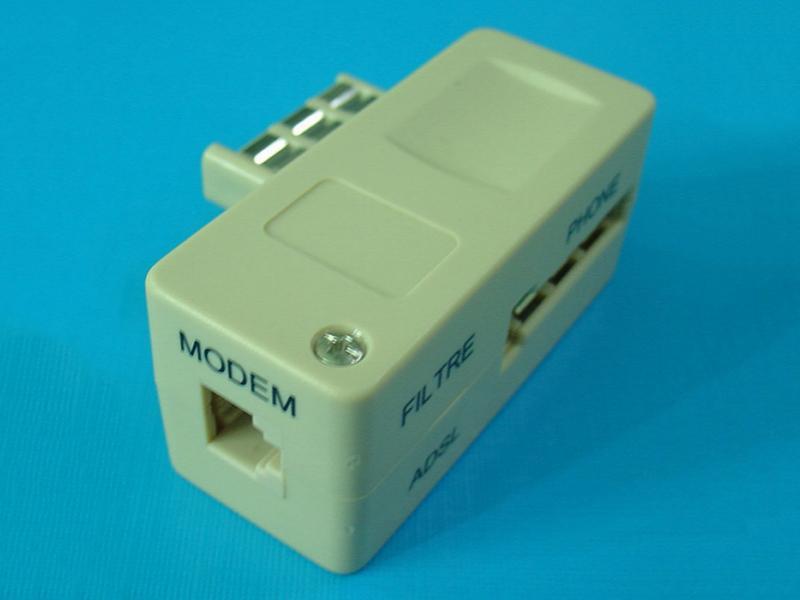

The FX-FR06A DSL filter splitter has French plug and jack with US RJ11 socket. The filter is suitable in France.
- Performance parameter
- Mechanical durability: more than 500 times for plug in and plug out
- Direct current resistance: <25Ω
- Insulation resistance: >10MΩ
- Frequency distortion loss: ±1.0dB (200~4 KHz)
- Insertion loss: <0.3 dB (1KHz)
- Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
- DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
- Adaptive temperature: -20℃~+60℃
- Adaptive humidity: 0%～96%
- Materials
- Case Shell: ABS
- Pin: nickel plated brass
- RJ11 socket: ABS/gold plated phosphor copper
- Weight: 37.1g
Description
The FX-FR06S DSL filter splitter has French plug and jack with US RJ11 socket. The filter is suitable in France.
- Performance parameter
- Mechanical durability: more than 500 times for plug in and plug out
- Direct current resistance: <25Ω
- Insulation resistance: >10MΩ
- Frequency distortion loss: ±1.0dB (200~4 KHz)
- Insertion loss: <0.3 dB (1KHz)
- Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
- DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
- Adaptive temperature: -20℃~+60℃
- Adaptive humidity: 0%～96%
- Materials
- Case Shell: ABS
- Pin: nickel plated brass
- RJ11 socket: PBT/gold plated phosphor copper
- Weight: 38.1g

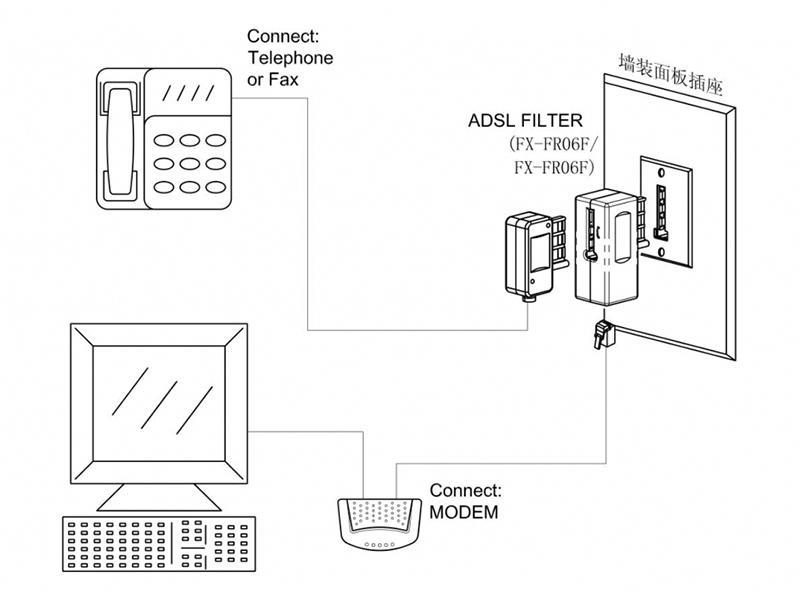

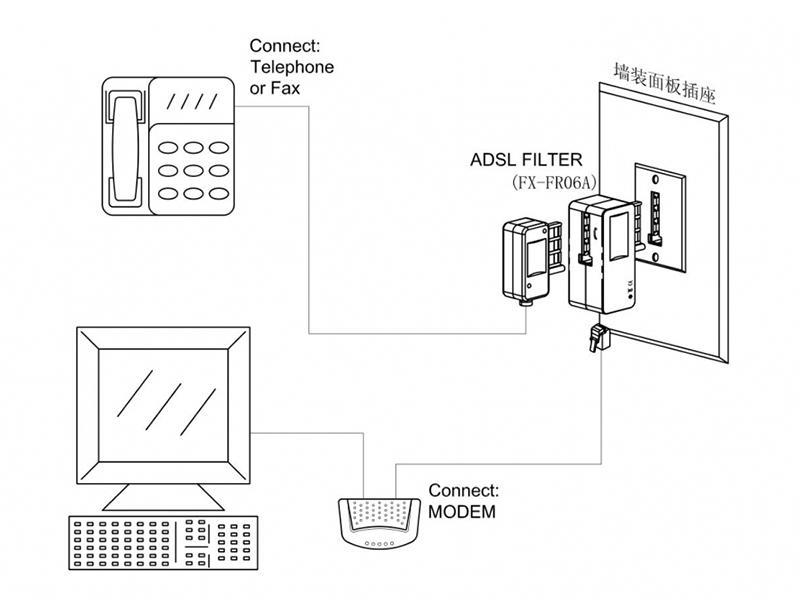

Connect the plug of DSL Filter to the telephone wall jack.
Plug the telephone line to the socket of DSL filter splitter which marked "PHONE" or phone symbol.
Connect the DSL modem to the RJ11 socket of DSL filter splitter which marked "MODEM" or computer symbol.
Follow the above steps, you can use the telephone and surf the internet at the same time.
The high quality DSL filter shown above is designed for broadband internet connection over telephone lines. You can choose the right products according to plug types of the equipment. We can also customize the DSL filter splitters to meet the specific requirements of your communication system.
