In-line DSL Filter 1 Male to 1 Female RJ11
Description

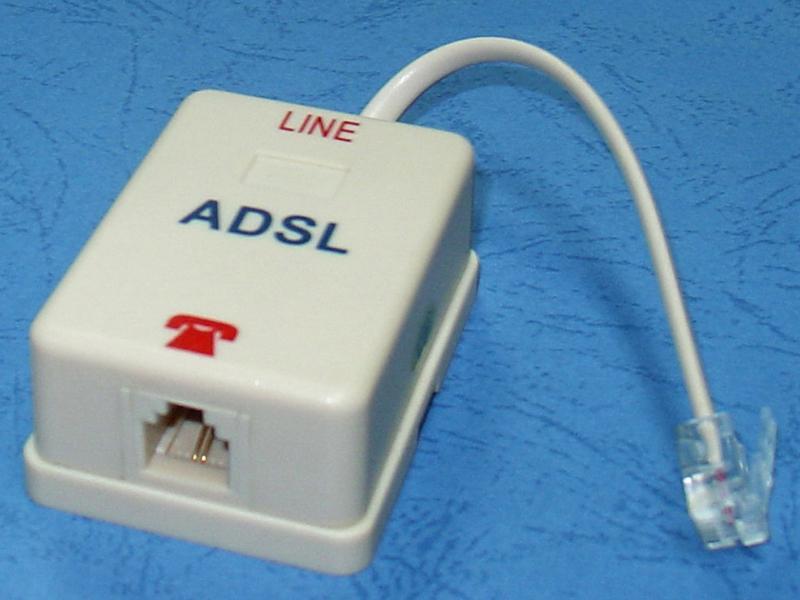

FX-468SA 1 male to 1 female in-line DSL filter splitter uses US standard 1×RJ11 plug and 1×RJ11 socket, and it is suitable for America, China, Italy and other countries.
- Performance parameter
- Mechanical durability: more than 500 times for plug in and plug out
- Direct current resistance: <25Ω
- Insulation resistance: >10MΩ
- Frequency distortion loss: ±1.0dB (200~4 KHz)
- Insertion loss: <0.3 dB (1KHz)
- Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
- DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
- Adaptive temperature: -20℃~+60℃
- Adaptive humidity: 0%～96%
- Materials
- Case Shell: ABS
- RJ11 plug and socket: gold plated phosphor copper
- Weight: 15.7g
Description

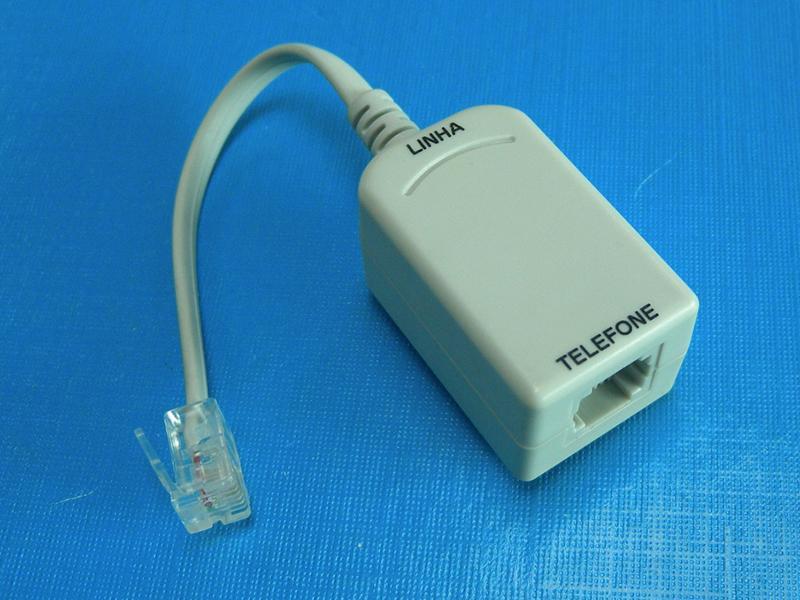

FX-US01F 1 male to 1 female in-line DSL filter splitter uses US standard 1×RJ11 plug and 1×RJ11 socket, and it is suitable for America, China, Brazil and other countries.
- Performance parameter
- Mechanical durability: more than 500 times for plug in and plug out
- Direct current resistance: <25Ω
- Insulation resistance: >10MΩ
- Frequency distortion loss: ±1.0dB(200~4 KHz)
- Insertion loss: <0.3 dB (1KHz)
- Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
- DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
- Adaptive temperature: -20℃~+60℃
- Adaptive humidity: 0%～96%
- Materials
- Case Shell: ABS
- RJ11 plug and socket: PC/PBT/gold plated phosphor copper
- Weight: 15.7g
Description

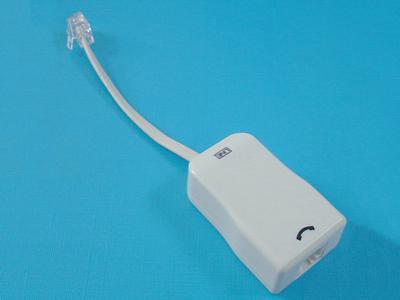

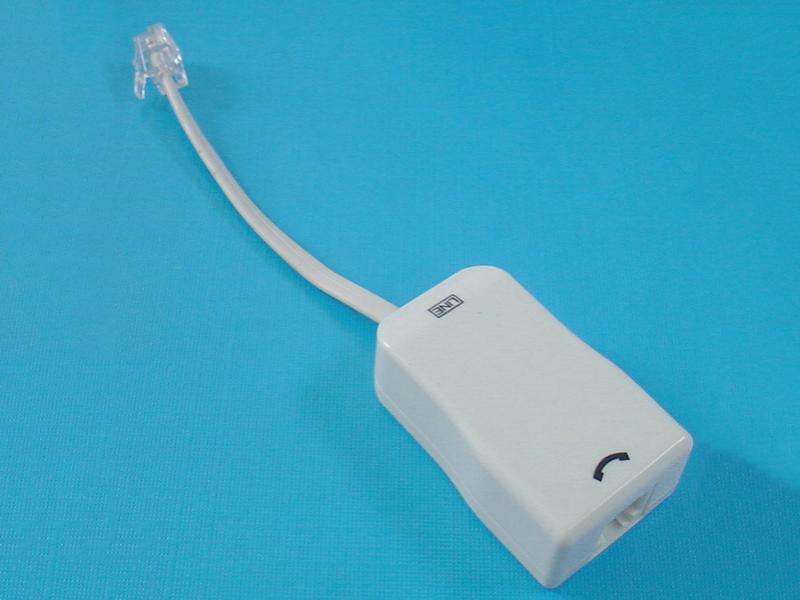

FX-US02M 1 male to 1 female in-line DSL filter splitter uses US standard RJ11 jack, and it is suitable for America, China, Brazil and other countries.
- Performance parameter
- Mechanical durability: more than 500 times for plug in and plug out
- Direct current resistance: <25Ω
- Insulation resistance: >10MΩ
- Frequency distortion loss: ±1.0dB (200~4 KHz)
- Insertion loss: <0.3 dB (1KHz)
- Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
- DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
- Adaptive temperature: -20℃~+60℃
- Adaptive humidity: 0%～96%
- Materials
- Case Shell: ABS
- RJ11 plug and socket: PC/PBT/gold plated phosphor copper
- Weight: 24.8g
Description

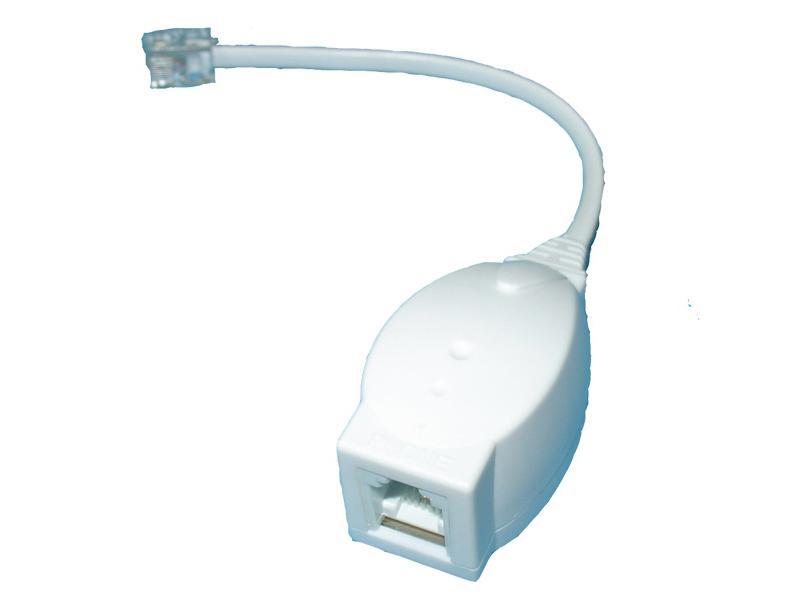

FX-US05A 1 male to 1 female in-line DSL filter splitter uses US standard RJ11 jack, and it is suitable for America, China, Brazil and other countries.
- Performance parameter
- Mechanical durability: 500 minimum insert and extract
- Direct current resistance: <25Ω
- Insulation resistance: >10MΩ
- Frequency distortion loss: ±1.0dB (200~4 KHz)
- Insertion loss: <0.3 dB (1KHz)
- Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
- DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
- Adaptive temperature: -20℃~+60℃
- Adaptive humidity: 0%～96%
- Materials
- Case Shell: ABS
- RJ11 plug and socket: PC/PBT/gold plated phosphor copper
- Weight: 18.5g

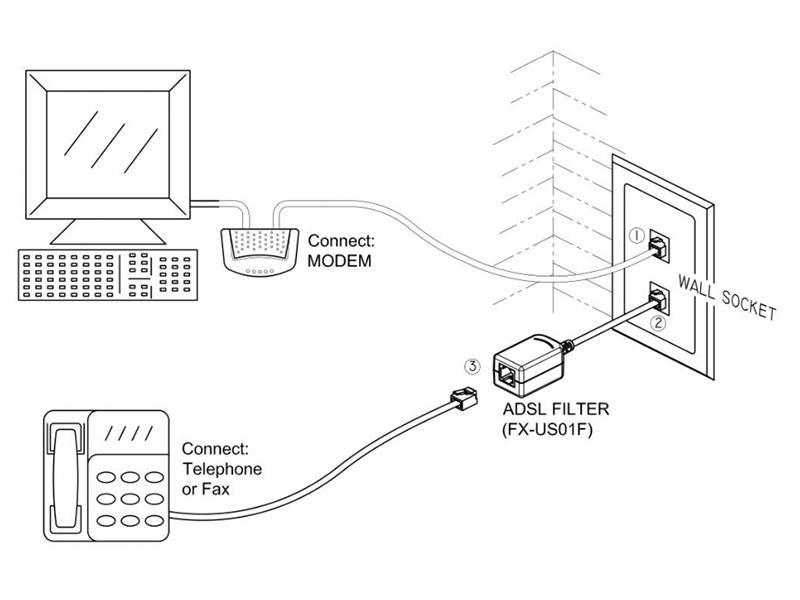

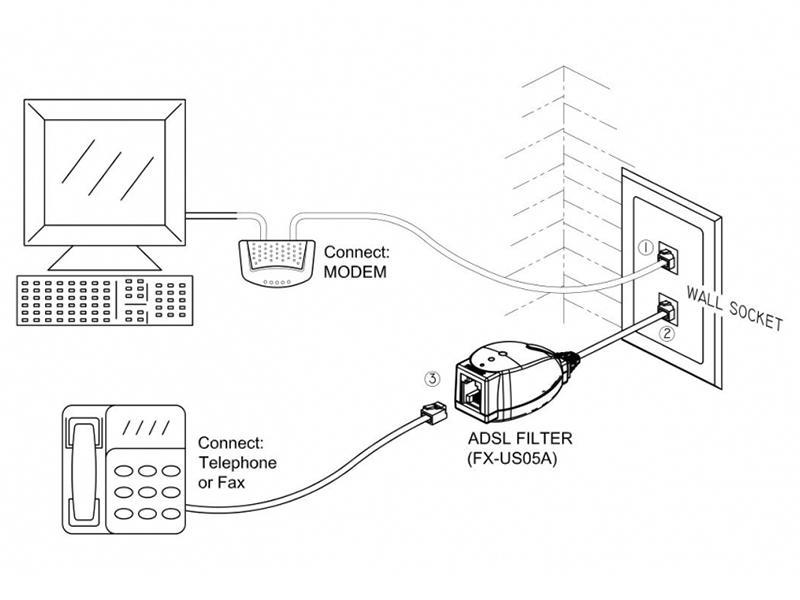

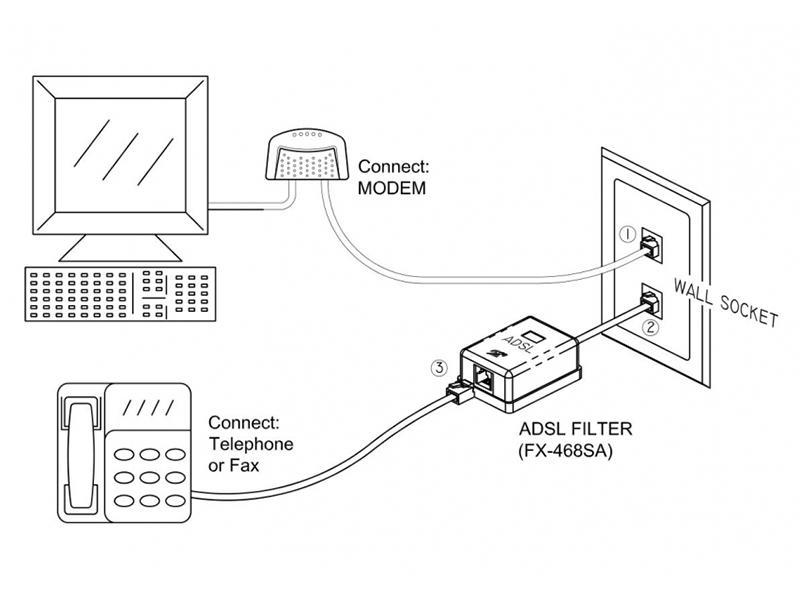

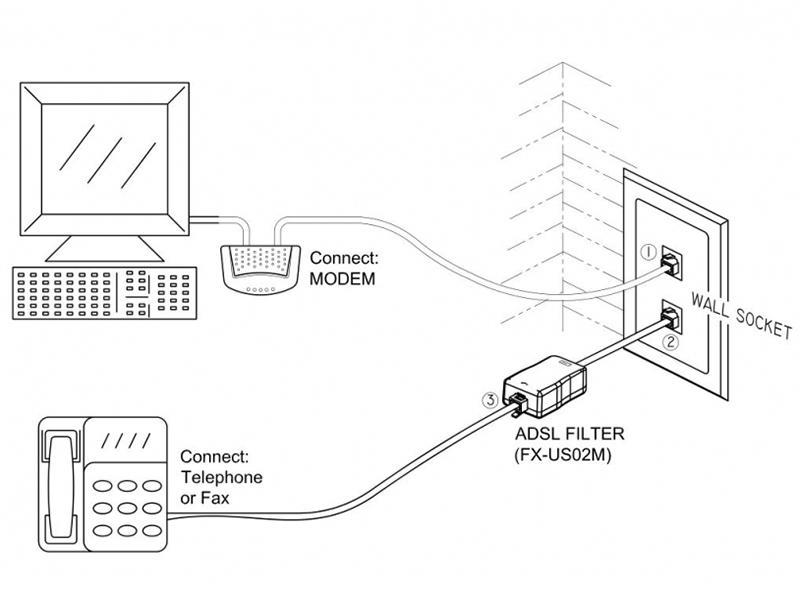

Connect your modem line to the wall jack.
Plug the ADSL filter splitter into another socket.
Connect the telephone or fax machine to the socket of ADSL filter splitter which marked "PHONE".
Listed above is one type of our inline DSL filter products. If it meets the requirements of your communication system, you can place an order immediately and quickly receive your items. However, if you have additional requirements in which this product may be insufficient, we have other types and can also provide you with customized DSL filter splitters to match your communication equipment.
