In-line DSL Filter Splitter 1 Male to 2 Female RJ11

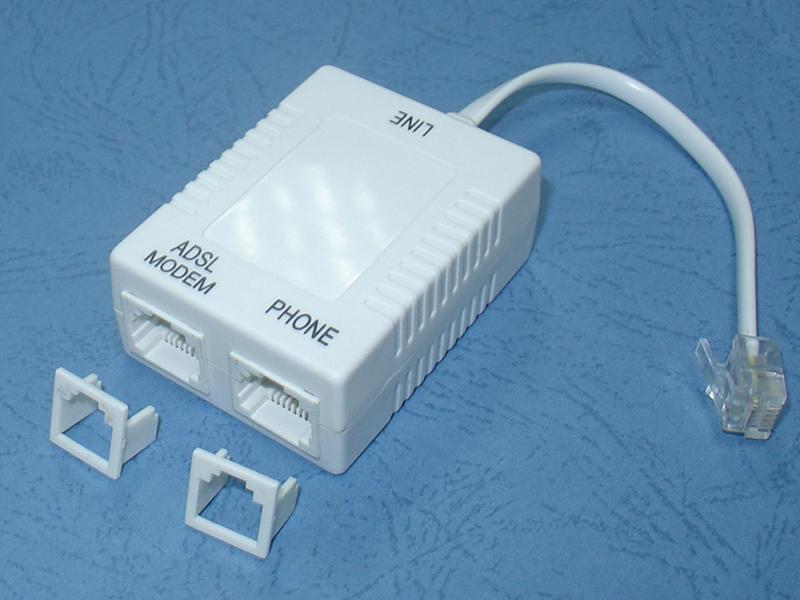

FX-US01A DSL Filter Splitter

Description
The FX-US01A 1 male to 2 female in-line DSL filter splitter uses US standard RJ45 plug and sockets, and it is suitable for France, America and other countries.

Parameters
  • Performance parameter
      Mechanical durability: more than 500 times for plug in and plug out
      Direct current resistance: <25Ω
      Insulation resistance: >10MΩ
      Frequency distortion loss: ±1.0dB (200~4 KHz)
      Insertion loss: <0.3 dB (1KHz)
      Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
      DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      RJ45 plug and socket: PBT/gold plated phosphor copper
      Weight: 36g

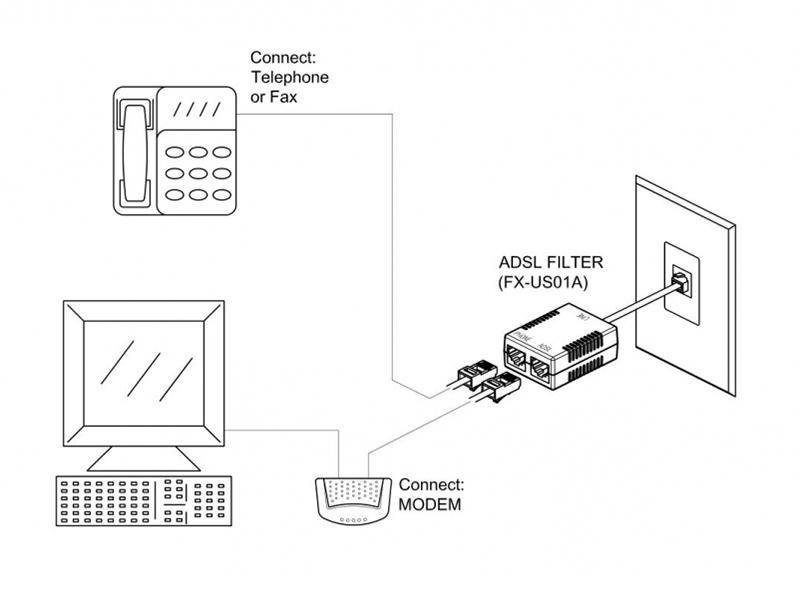

Installation

Connect in-line DSL filter splitter to the telephone wall jack.
Plug the telephone line into the socket of in-line DSL filter splitter which marked "PHONE" or phone symbol.
Connect the DSL modem to the RJ45 socket of in-line DSL filter splitter which marked "MODEM" or computer symbol.

Follow the above steps, you can use the telephone and surf the internet at the same time.

Listed above is one type of our inline DSL filter products. If it meets the requirements of your communication system, you can place an order immediately and quickly receive your items. However, if you have additional requirements in which this product may be insufficient, we have other types and can also provide you with customized DSL filter splitters to match your communication equipment.
