In-line DSL Filter Splitter 1 Male to 2 Female RJ11

FX-468DA DSL Filter Splitter

Description

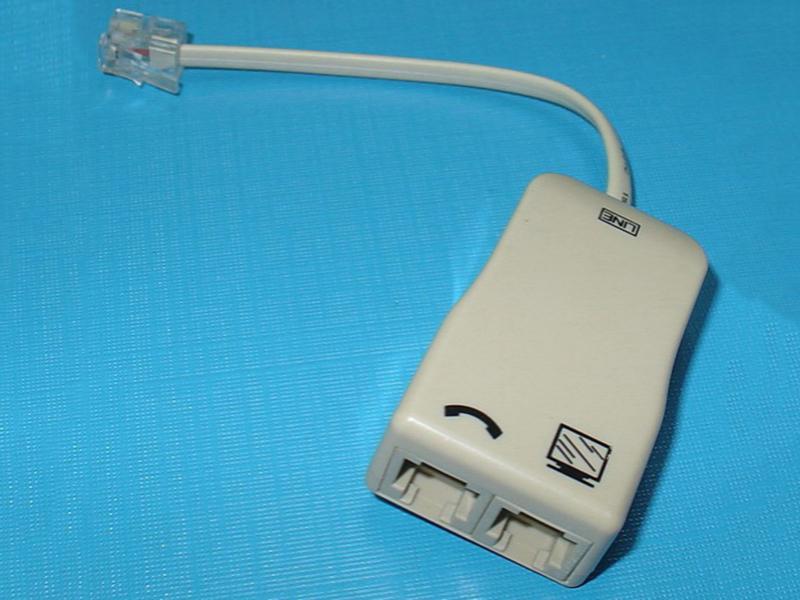

FX-468DA 1 male to 2 female in-line DSL filter splitter uses one US standard RJ11 plug and two RJ11 sockets, and it is suitable for America, China, Italy and other countries.

Parameters
  • Performance parameter
      Mechanical durability: more than 500 times for plug in and plug out
      Direct current resistance: <25Ω
      Insulation resistance: >10MΩ
      Frequency distortion loss: ±1.0dB (200~4 KHz)
      Insertion loss: <0.3 dB (1KHz)
      Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
      DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      RJ11 plug and socket: gold plated phosphor copper
      Weight: 31.7g

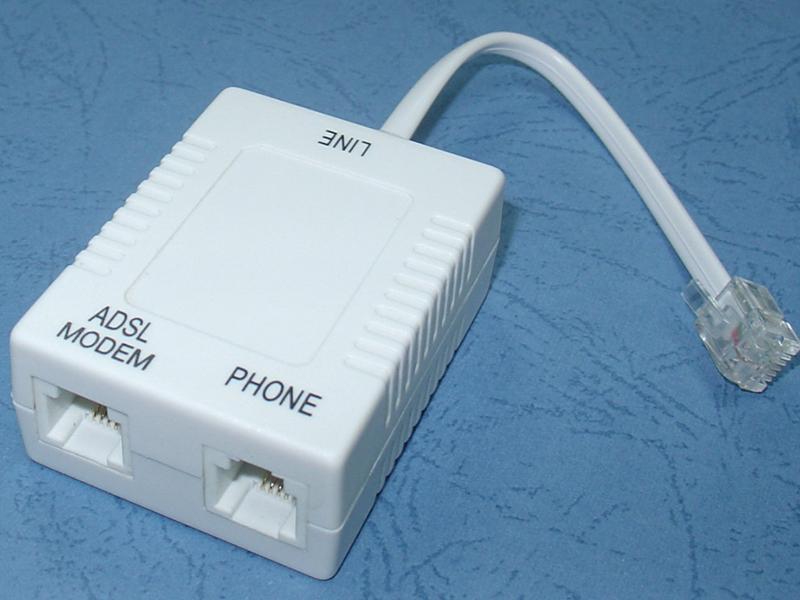

FX-US01L ADSL Filter Splitter

Description
FX-US01L 1 male to 2 female in-line DSL filter splitter uses US standard RJ11 plug and sockets, and it is suitable for America, China and other countries.

Parameters
  • Performance parameter
      Mechanical durability: more than 500 times for plug in and plug out
      Direct current resistance: <25Ω
      Insulation resistance: >10MΩ
      Frequency distortion loss: ±1.0dB (200~4 KHz)
      Insertion loss: <0.3 dB (1KHz)
      Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
      DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      RJ11 plug: PC/gold plated phosphor copper
      RJ11 socket: gold plated phosphor copper
      Weight: 34g

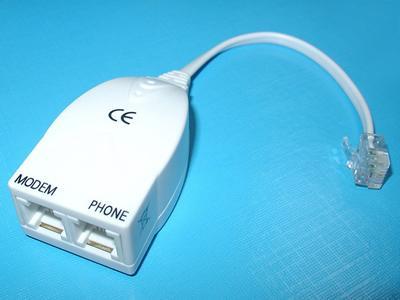

FX-US05M DSL Filter Splitter

Description
FX-US05M 1 male to 2 female in-line DSL filter splitter uses US standard RJ11 plug and sockets, and it is suitable for America, China, Brazil and other countries.

Parameters
  • Performance parameter
      Mechanical durability: more than 500 times for plug in and plug out
      Direct current resistance: <25Ω
      Insulation resistance: >10MΩ
      Frequency distortion loss: ±1.0dB (200~4 KHz)
      Insertion loss: <0.3 dB (1KHz)
      Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
      DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      RJ11 plug and socket: PC/PBT/gold plated phosphor copper
      Weight: 22.1g

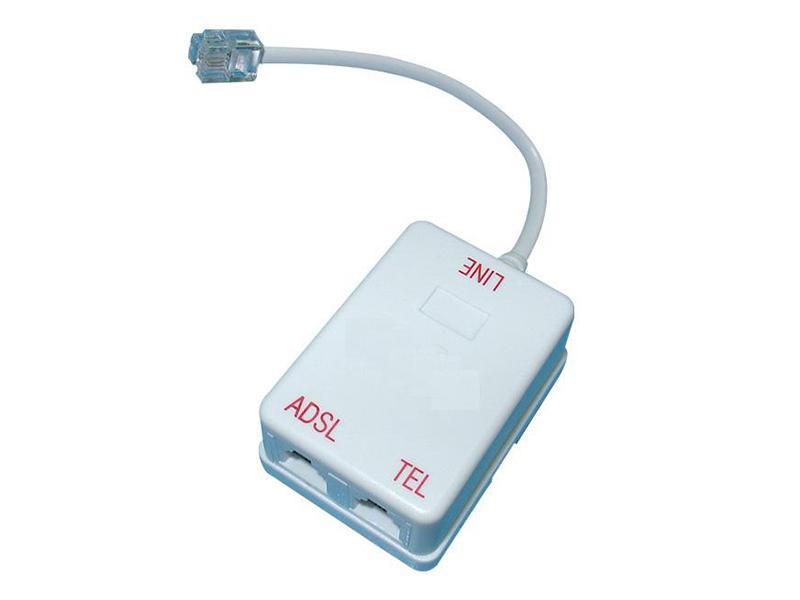

FX-US05D DSL Filter Splitter

Description
FX-US05D 1 male to 2 female in-line DSL filter splitter uses US standard RJ11 plug and sockets, and it is suitable for America, China, Brazil and other countries.

Parameters
  • Performance parameter
      Mechanical durability: more than 500 times for plug in and plug out
      Direct current resistance: <25Ω
      Insulation resistance: >10MΩ
      Frequency distortion loss: ±1.0dB (200~4 KHz)
      Insertion loss: <0.3 dB (1KHz)
      Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
      DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      RJ11 plug and socket: PC/PBT/gold plated phosphor copper
      Weight: 22.4g
FX-UK01A DSL Filter Splitter

Description
FX-UK01A 1 male to 2 female in-line DSL filter splitter uses British Telecom plug and socket with US standard socket (1×BT plug, 1×BT socket, 1×RJ11 socket) and is suitable for UK, Israel and other countries.

Parameters
  • Performance parameter
      Mechanical durability: more than 500 times for plug in and plug out
      Direct current resistance: <25Ω
      Insulation resistance: >10MΩ
      Frequency distortion loss: ±1.0dB (200~4 KHz)
      Insertion loss: <0.3 dB (1KHz)
      Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
      DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      BT plug and socket: PC/PBT/gold plated phosphor copper
      RJ11 socket: gold plated phosphor copper
      Weight: 37g
FX-UK01N DSL Filter Splitter

Description
FX-UK01N 1 male to 2 female in-line DSL filter splitter uses British Telecom plug and socket with US standard socket (1×BT plug,1×BT socket,1×RJ11 socket) and is suitable for UK, Israel and other countries.

Parameters
  • Performance parameter
      Mechanical durability: more than 500 times for plug in and plug out
      Direct current resistance: <25Ω
      Insulation resistance: >10MΩ
      Frequency distortion loss: ±1.0dB (200~4 KHz)
      Insertion loss: <0.3 dB (1KHz)
      Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
      DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      BT plug and socket: PC/PBT/gold plated phosphor copper
      RJ11 socket: gold plated phosphor copper
      Weight: 38g
FX-UK02A DSL Filter Splitter

Description
FX-UK02A 1 male to 2 female in-line DSL filter splitter uses British Telecom plug and US standard sockets (1×BT plug, 2×RJ11 sockets) and is suitable for UK, Israel and other countries.

Parameters
  • Performance parameter
      Mechanical durability: more than 500 times for plug in and plug out
      Direct current resistance: <25Ω
      Insulation resistance: >10MΩ
      Frequency distortion loss: ±1.0dB (200~4 KHz)
      Insertion loss: <0.3 dB (1KHz)
      Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
      DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      BT plug and socket: PC/PBT/gold plated phosphor copper
      RJ11 socket: gold plated phosphor copper
      Weight: 38.2g

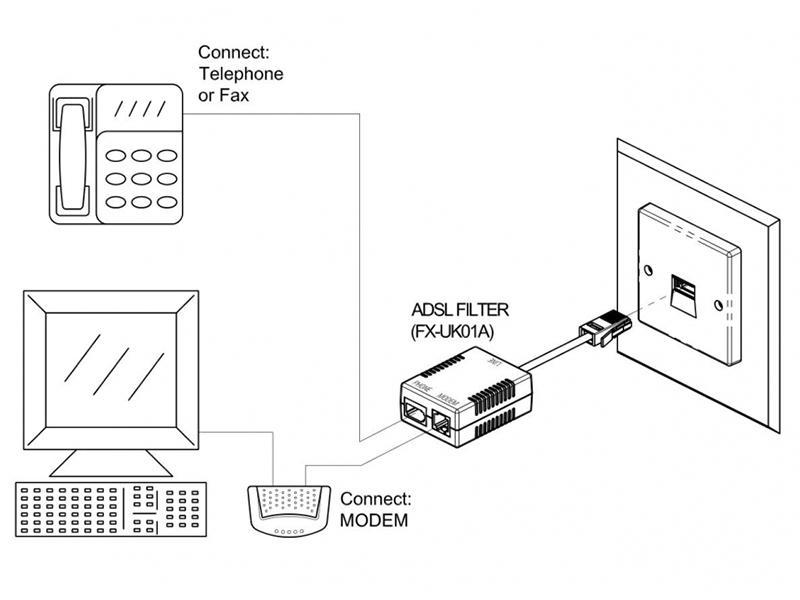

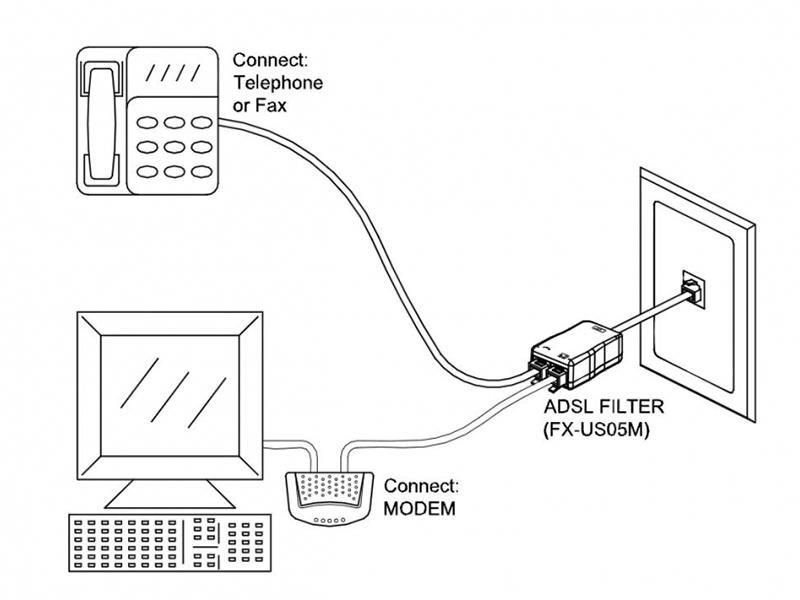

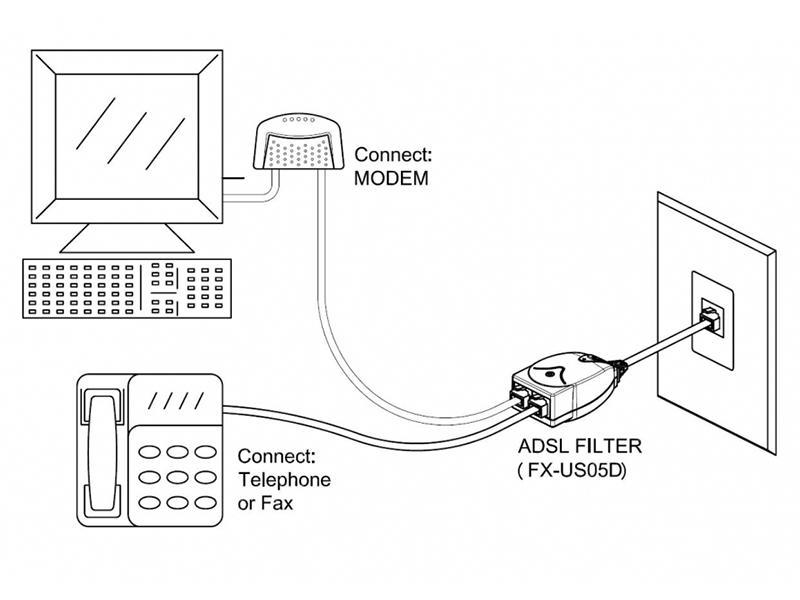

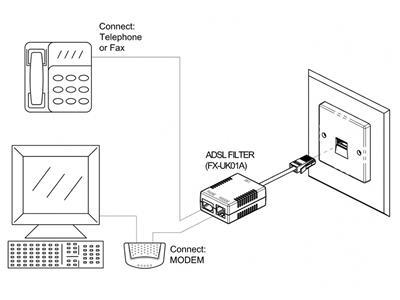

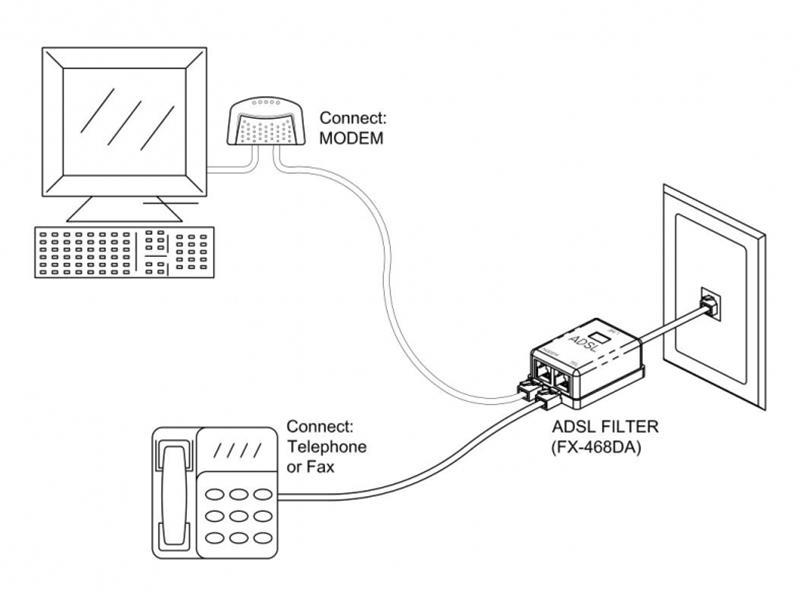

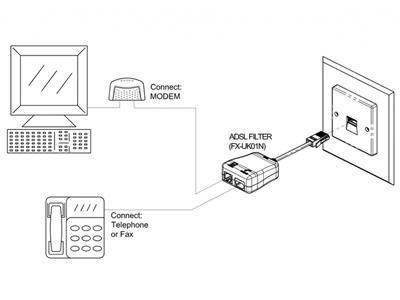

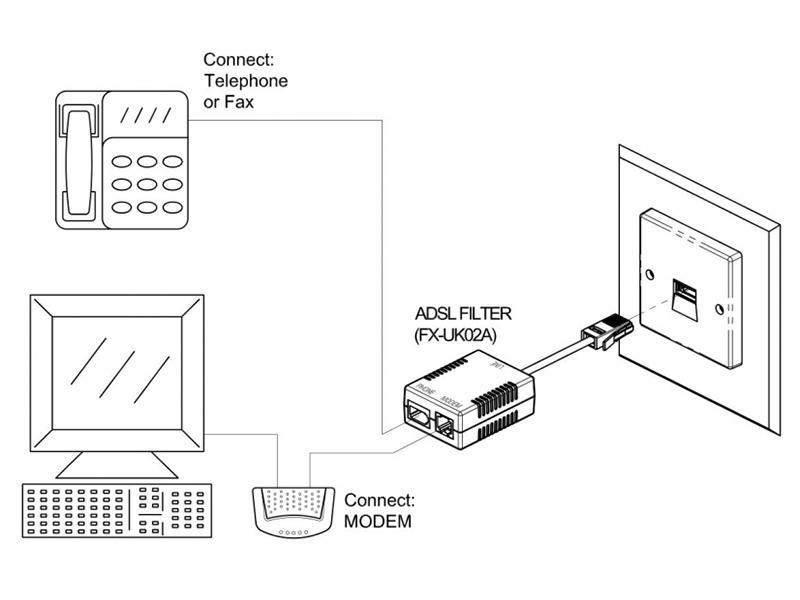

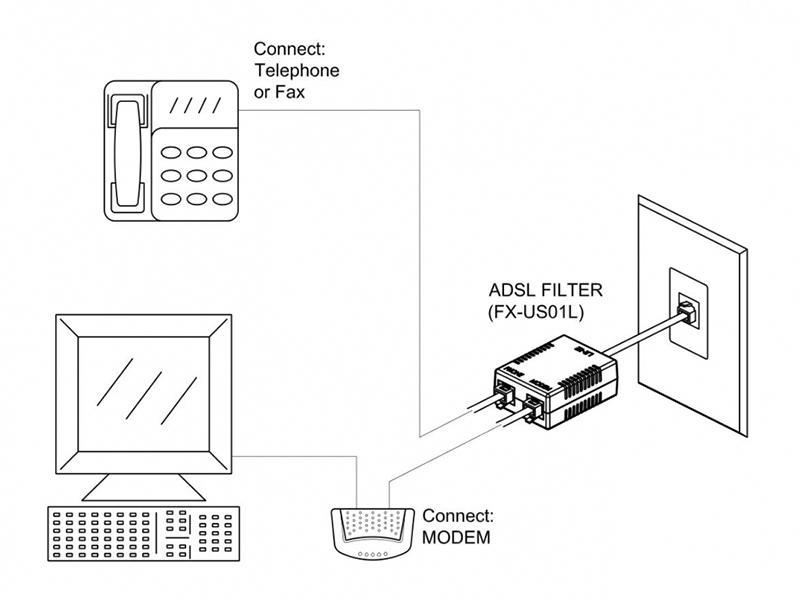

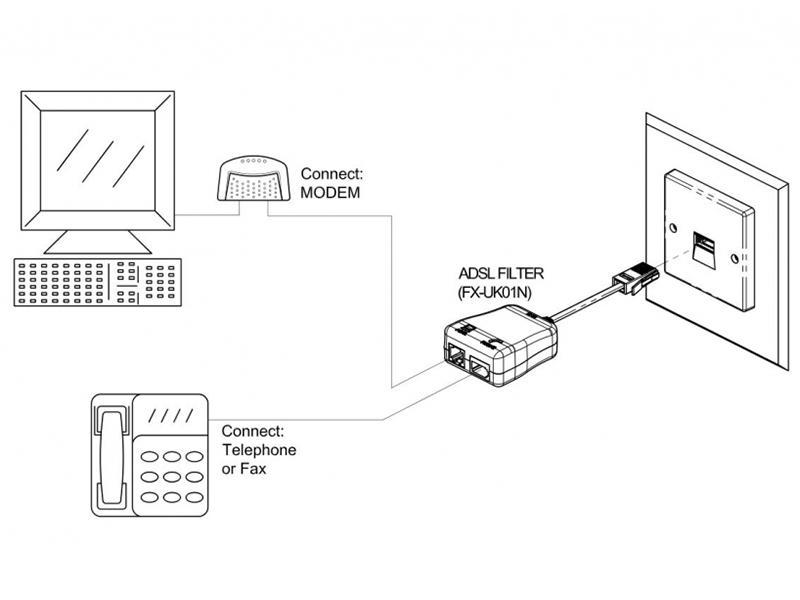

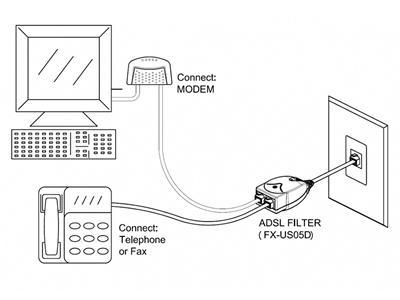

Installation

Connect in-line DSL filter splitter to the telephone wall jack.

Plug the telephone line into the socket of in-line DSL filter splitter which marked "PHONE" or phone symbol.

Connect the DSL modem to the RJ11 socket of in-line DSL filter splitter which marked "MODEM" or computer symbol.

Follow the above steps, you can use the telephone and surf the internet at the same time.

Listed above is one type of our inline DSL filter products. If it meets the requirements of your communication system, you can place an order immediately and quickly receive your items. However, if you have additional requirements in which this product may be insufficient, we have other types and can also provide you with customized DSL filter splitters to match your communication equipment.
