Telephone Adapter to Swiss

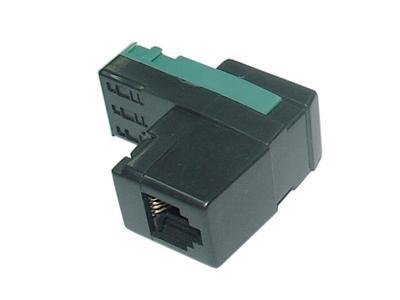

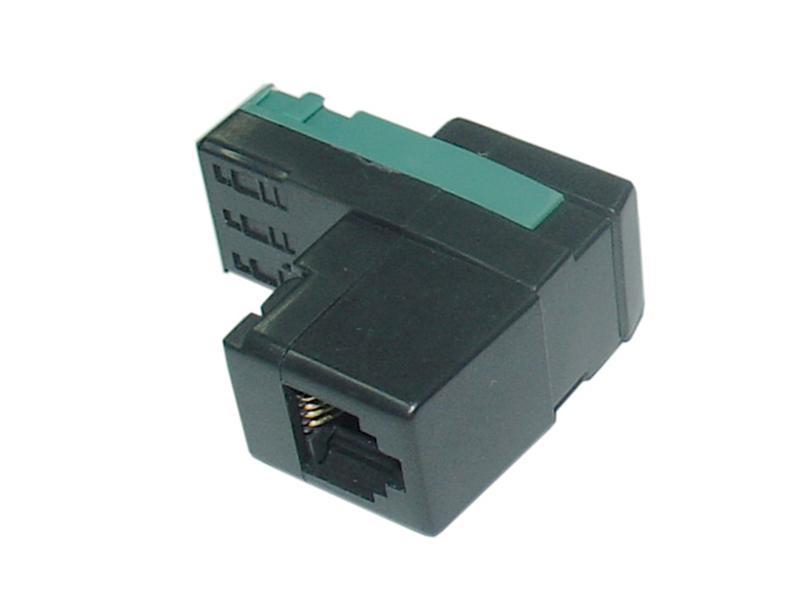

FX-SW02 Telephone Jack Adapter

Description
The telephone splitter adapter, switching the Swiss plug to the US (RJ11/RJ12) receptacle, adapts to the connection of phones, fax machines and other communication devices.

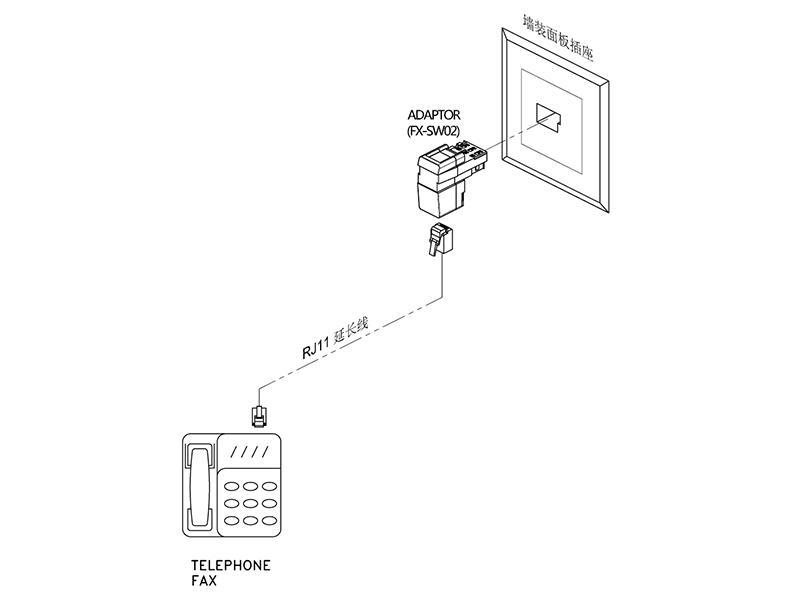

Installation
* Plug the adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, whose another end connects to a telephone or fax machine.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Pin: nickel plated brass
      RJ11/RJ12 jack: gold plated phosphor copper

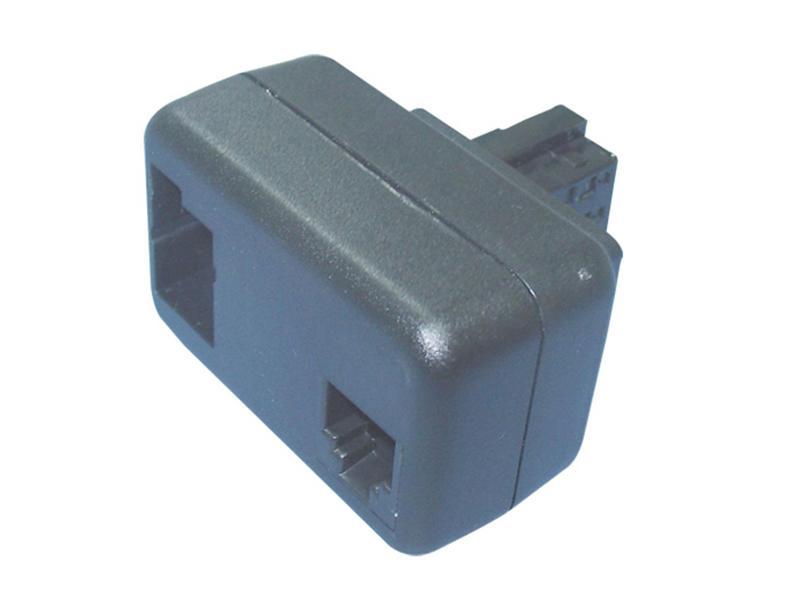

FX-SW06 Telephone Jack Adapter

Description
The telephone splitter adapter, switching the Swiss plug to the American (RJ11/RJ12) jack, adapts to the connection of phones, fax machines and other communication devices. Meanwhile another Swiss phone plug can be connected to the female jack of the adapter.

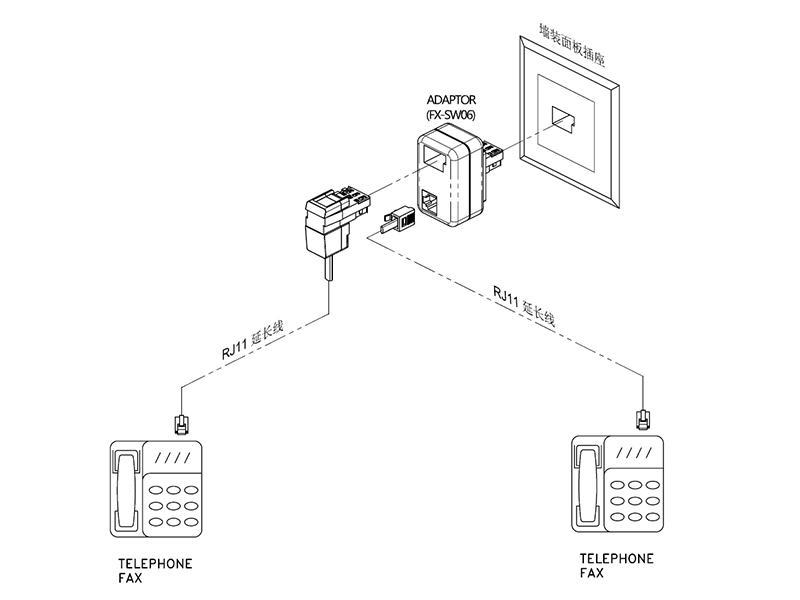

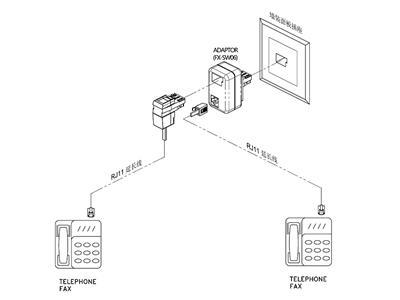

Installation
* Plug the adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, whose another end connects to a telephone or fax machine.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Pin and female pin: nickel plated brass
      RJ11/RJ12 socket: gold plated phosphor copper

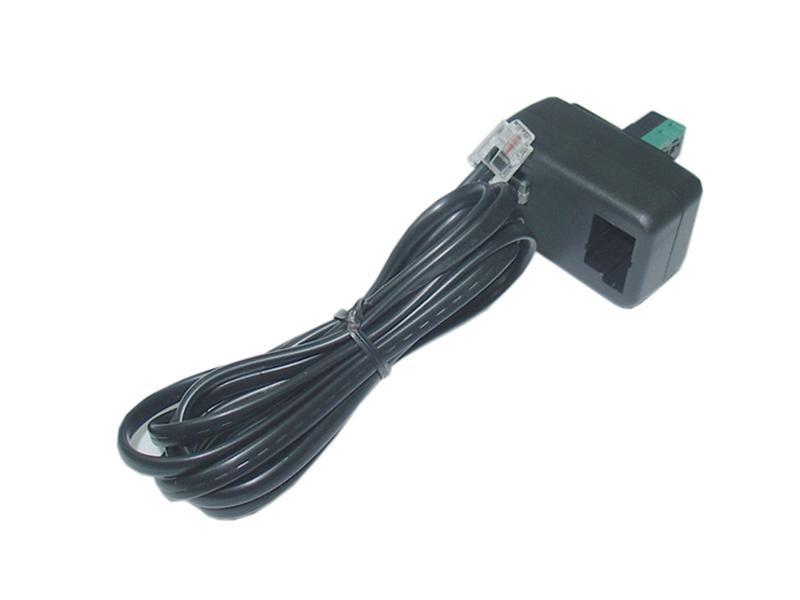

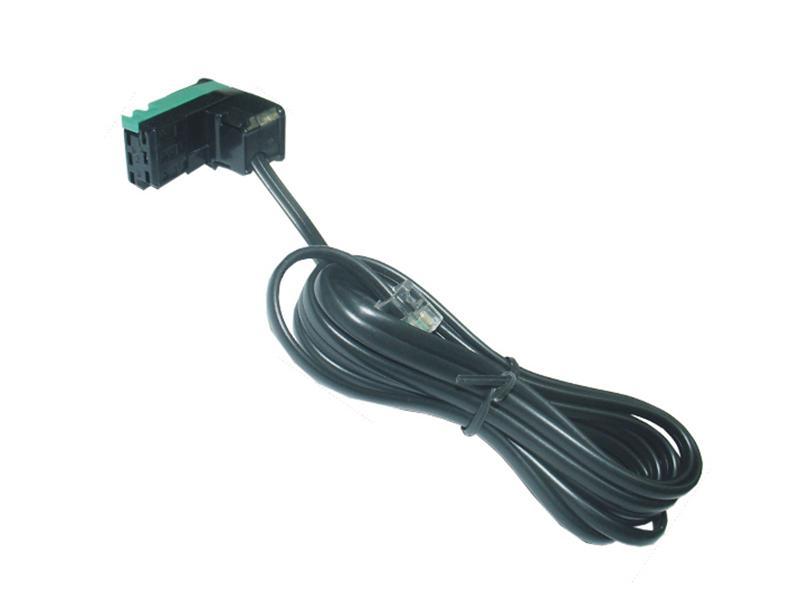

FX-SW11 Telephone Socket Adapter

Description
The telephone splitter adapter switches the Swiss telecom plug to the American (RJ11/RJ12) plug, which can directly connect phones, fax machines and other communication devices.

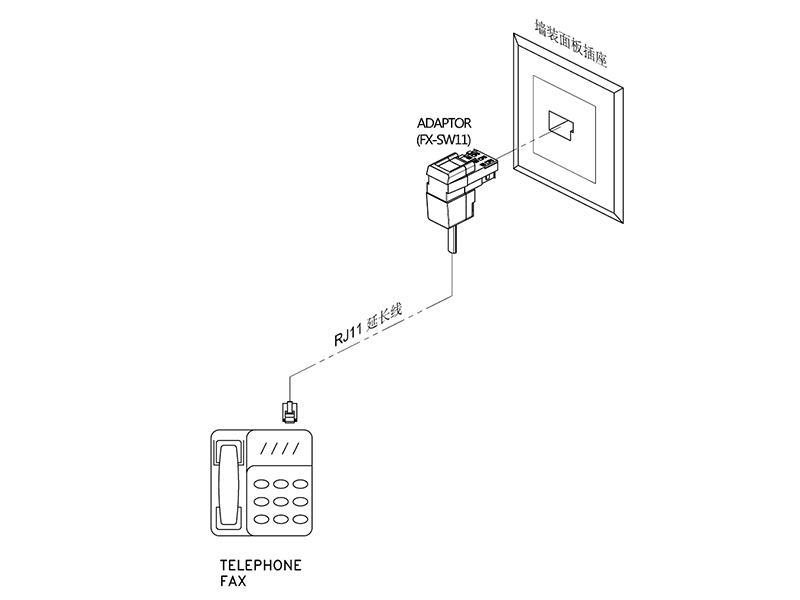

Installation
* Plug the adapter into the wall socket panel
* RJ11 extension cable can be plugged in the RJ11 female jack of the adapter, whose another end connects to a telephone or fax machine.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Telephone wire: 26AWG/28AWG pure copper core
      Pin: nickel plated brass
      RJ11/RJ12 jack: gold plated phosphor copper
FX-SW12 Telephone Socket Adapter

Description
The telephone accessory, switching the Swiss plug to the American (RJ11/RJ12) plug, which can directly connect to phones, fax machines and other communication devices. At the same time another Swiss phone plug can be connected to the female jack of the adapter.

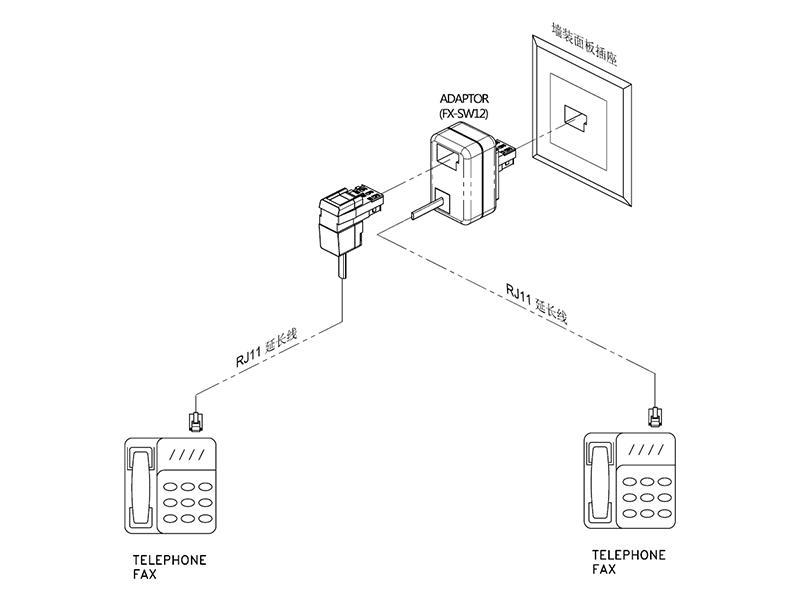

Installation
* Insert the plug of your adapter into the wall socket panel.
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, which can connect a telephone or fax machine.
* Corresponding extension cable can be plugged in the native female jack, which can connect another telephone or fax machine. * Two telephones or fax machines can be used at the same time for adaption of different interfaces.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Telephone wire: 26AWG/28AWG pure copper core
      Pin: nickel plated brass
      RJ11/RJ12 socket: gold plated phosphor copper

Shown above are some of our telephone adapters made according to the socket types of the equipment. We have wall mount adapters and inline adapters according to the needs of your communication application. If you have specific needs, please let us know your complete list of specifications and we can provide custom products for your communication system.
