Telephone Adapter to German

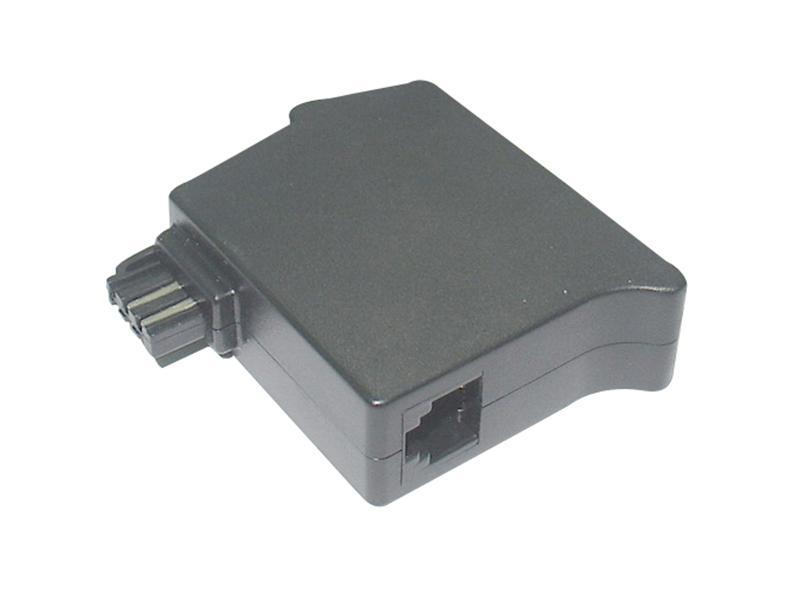

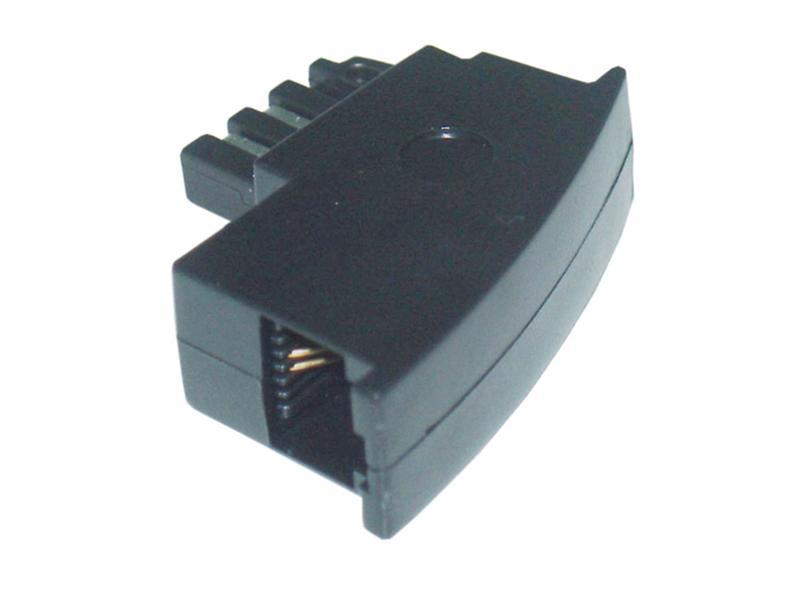

FX-GM02 Telephone Adapter

Description
A telephone splitter adapter, switching German style plugs to the US (RJ11/RJ12) jack. It adapts to the connection of communication equipment, such as telephone, fax machines and etc.

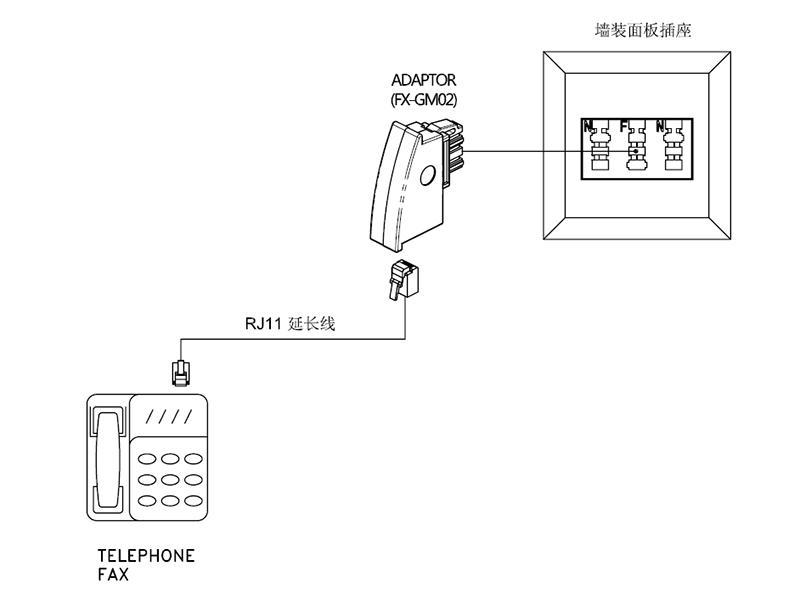

Installation
* Plug your adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, which can connect a telephone or fax machine.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Pin: nickel plated brass
      RJ11/RJ12 jack: gold plated phosphor copper
FX-GM06 Telephone Adapter

Description
A telephone adapter, switching the Germany plug to the US (RJ11/RJ12) jack, adapts to the connection of communication devices, such as telephones, fax machines and etc. Meanwhile the female jack of the adapter can connect to another Germany phone plug.

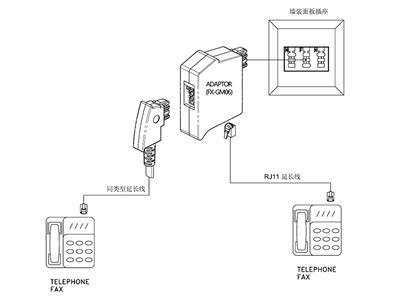

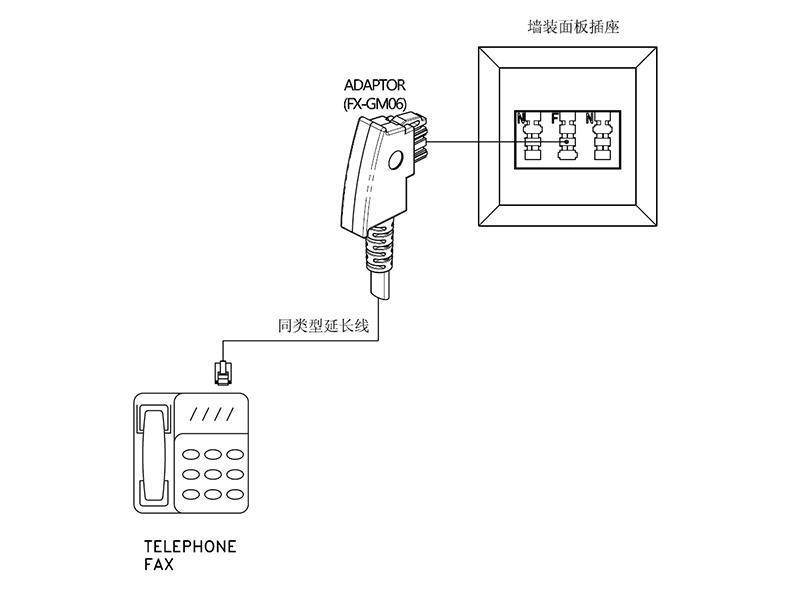

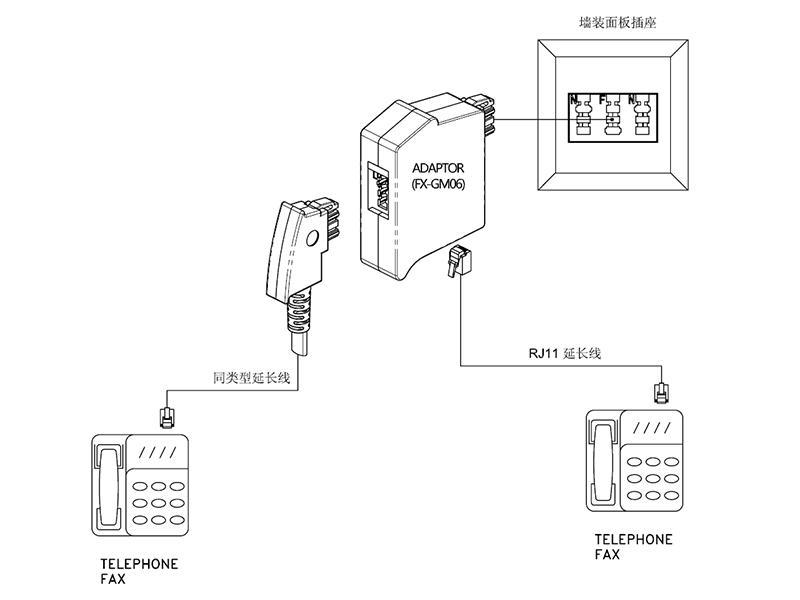

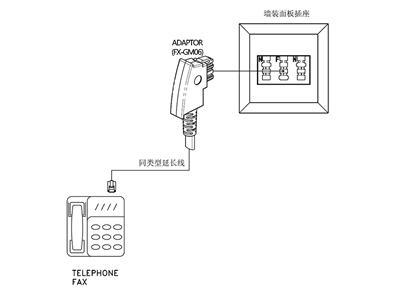

Installation
* Insert the plug of the adapter into the wall socket panel.
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter and connected to a telephone or fax machine.
* Corresponding same-type extension cord can be plugged in the native female socket of the adapter and another end can connect another telephone or fax machine.
* Two telephones or fax machines can be used at the same time to adapt to different sockets.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Pin/Female pin: nickel plated brass
      RJ11/RJ12 jack: gold plated phosphor copper
FX-GM06M Telephone Jack Adapter

Description
A telephone adapter, switching the Germany plug to the US (RJ11/RJ12) jack, adapts to the connection of telecoms equipment, such as telephones, fax machines and etc. at the same time the female jack of the adapter can connect to another Germany phone plug.

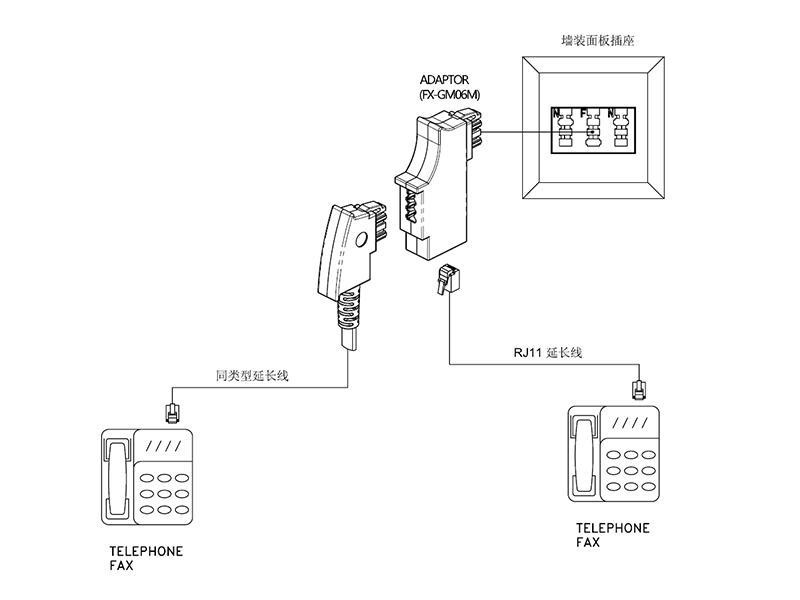

Installation
* Insert the plug of your adapter into the wall socket panel.
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter and connected to a telephone or fax machine.
* Corresponding same-type extension cord can be plugged in the native female socket of the adapter and another end can connect another telephone or fax machine.
* Two telephones or fax machines can be used simultaneously to adapt to different sockets.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Pin/ Female pin: nickel plated brass
      RJ11/RJ12 jack: gold plated phosphor copper

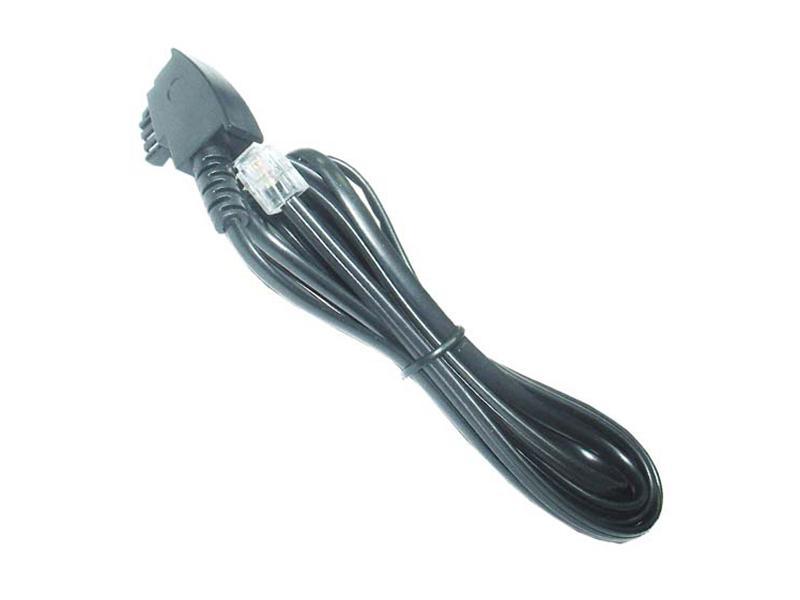

FX-GM11 Telephone Socket Adapter

Description
A telephone socket adapter, switching the Germany plug to the US (RJ11/RJ12) jack, adapts to the connection of telephones, fax machines and other telecoms equipment. At the same time the female jack of the adapter can connect to another Germany phone plug.

Installation
* Plug your adapter into the wall socket panel.
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, which can connect a telephone or fax machine.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Telephone wire: 26AWG/28AWG pure copper core
      Pin/Female pin: nickel plated brass
      RJ11/RJ12 jack: gold plated phosphor copper

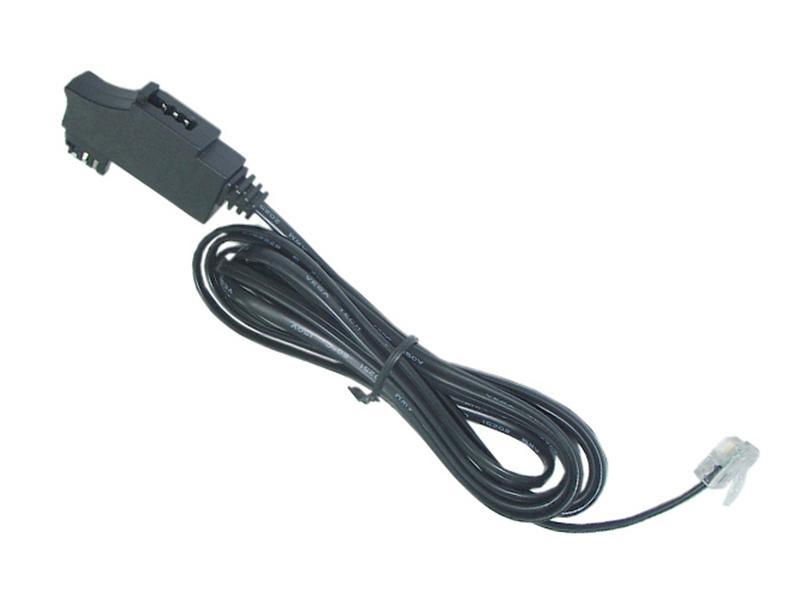

FX-GM12 Telephone Socket Adapter

Description
A telephone socket adapter, switching the Germany telephone plug to the US (RJ11/RJ12) plug, which can directly connect to telephones, fax machines and other telecoms devices. Meanwhile the female socket of the adapter can connect to another Germany phone plug.

Installation
* Insert the plug of your adapter into the wall socket panel.
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter and connected to a telephone or fax machine.
* Corresponding same-type extension cord can be plugged in the native female socket of the adapter and another end can connect another telephone or fax machine.
* Two telephones or fax machines can be used simultaneously to adapt to different sockets.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Telephone wire: 26AWG/28AWG pure copper core
      Pin/Female pin: nickel plated brass
      RJ11/RJ12 jack: gold plated phosphor copper

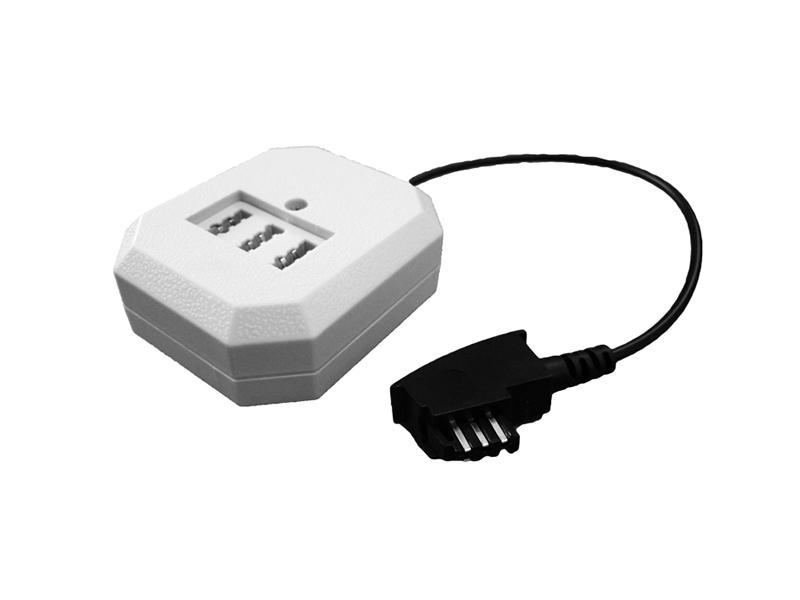

FX-GM30 Telephone Socket Adapter

Description
A telephone socket adapter, switching the Germany telephone plug to the US (RJ11/RJ12) plug, which can directly connect to telephones, fax machines and other telecoms devices. Meanwhile other three kinds of Germany telephone plugs can be connected to the female socket of the adapte.

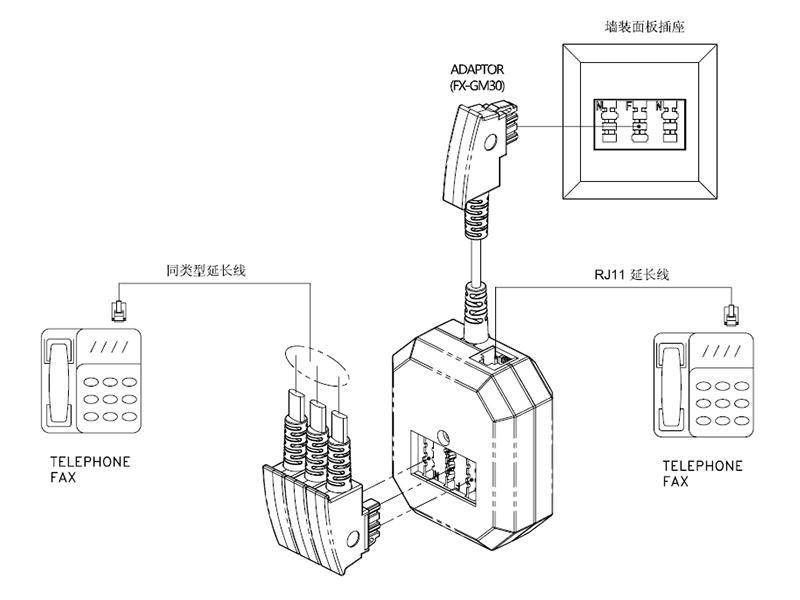

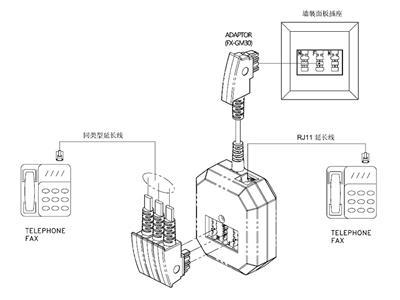

Installation
* Insert the plug of your adapter into the wall socket panel.
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter and connected to a telephone or fax machine.
* In replacement of the 3 original receptacles, three female jacks of the adapter will be utilized to connect other components.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Telephone wire: 26AWG/28AWG pure copper core
      Pin/Female pin: nickel plated brass
      RJ11/RJ12 socket: gold plated phosphor copper

Shown above are some of our telephone adapters made according to the socket types of the equipment. We have wall mount adapters and inline adapters according to the needs of your communication application. If you have specific needs, please let us know your complete list of specifications and we can provide custom products for your communication system.
