Telephone Adapter to UK

Description

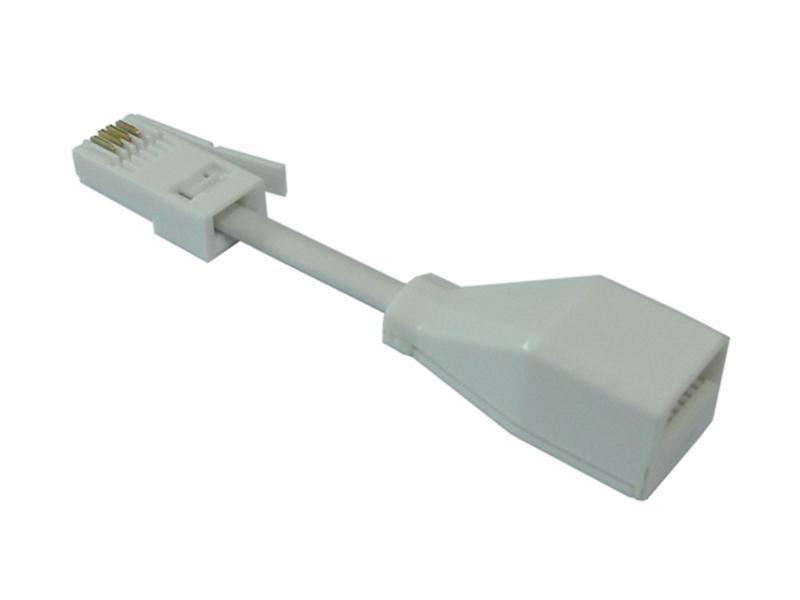

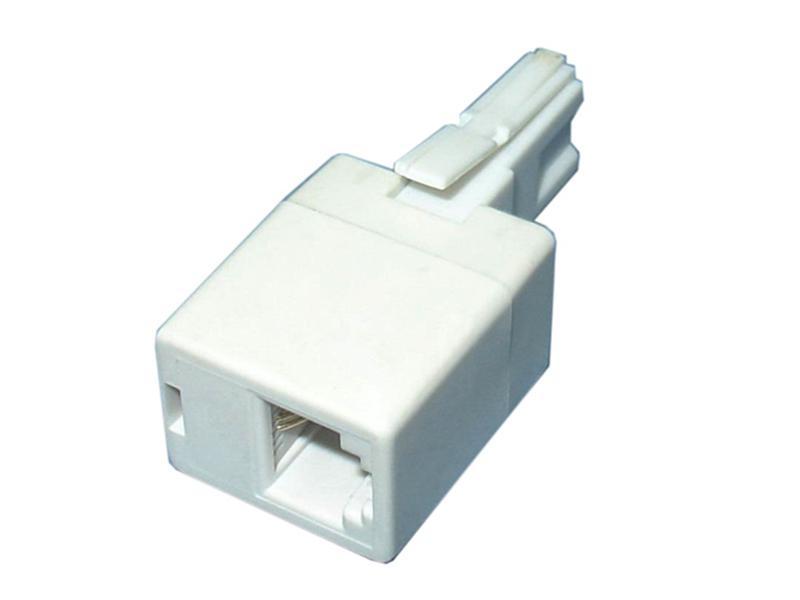

The network fitting, switching the BT plug to the US (RJ11/RJ12) receptacle, adapts to the connection of phones, fax machines and network terminal equipment.

Installation

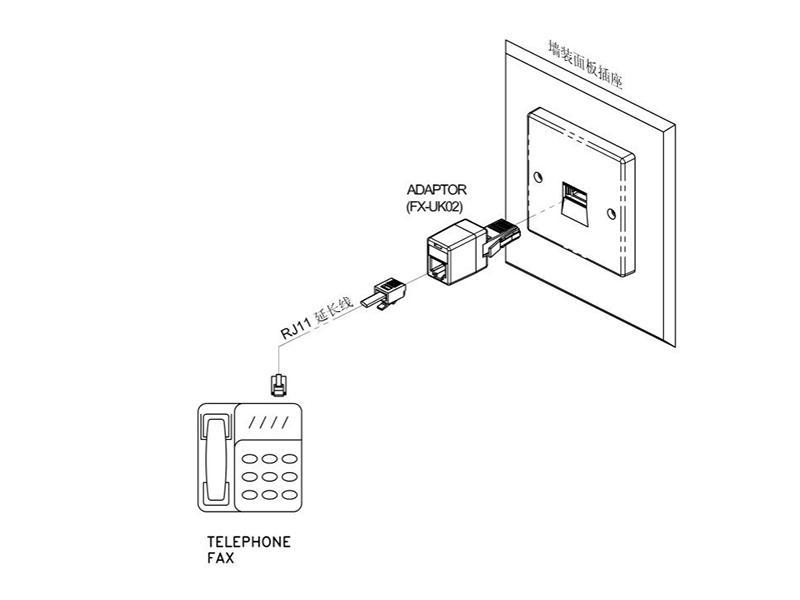

* Plug the adapter into the wall socket.
* RJ11 extension cable can be plugged in the RJ11 female jack of the adapter, whose another end connects to a telephone or fax machine.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  British plug terminal: nickel plated brass
  RJ11/RJ12 jack: gold plated phosphor copper

Description

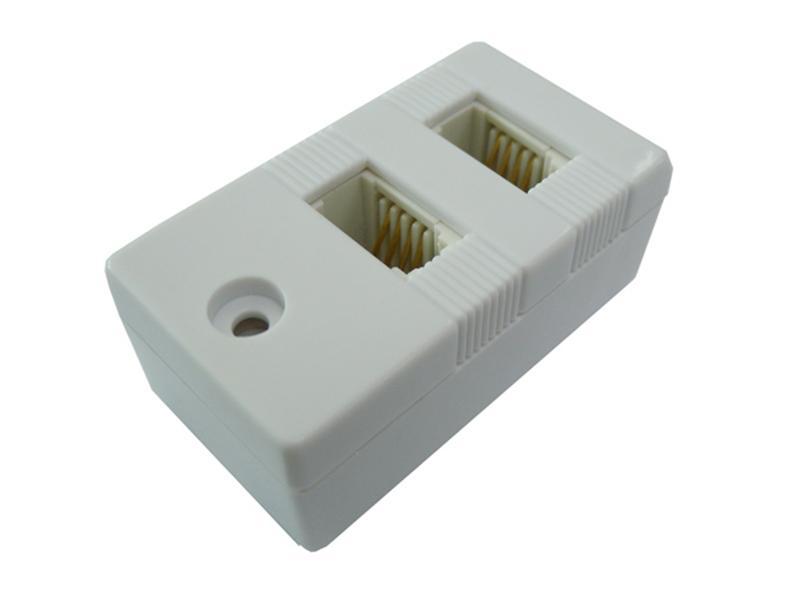

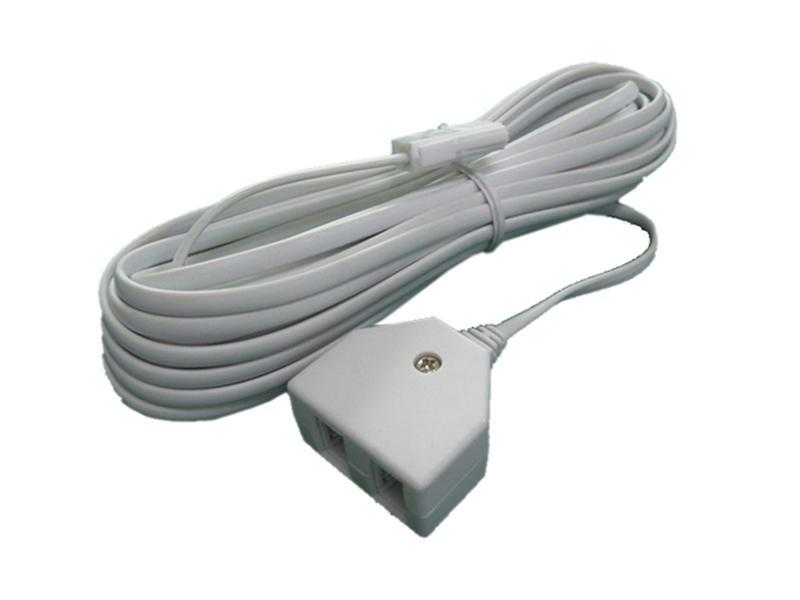

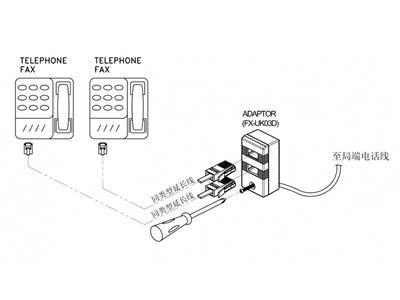

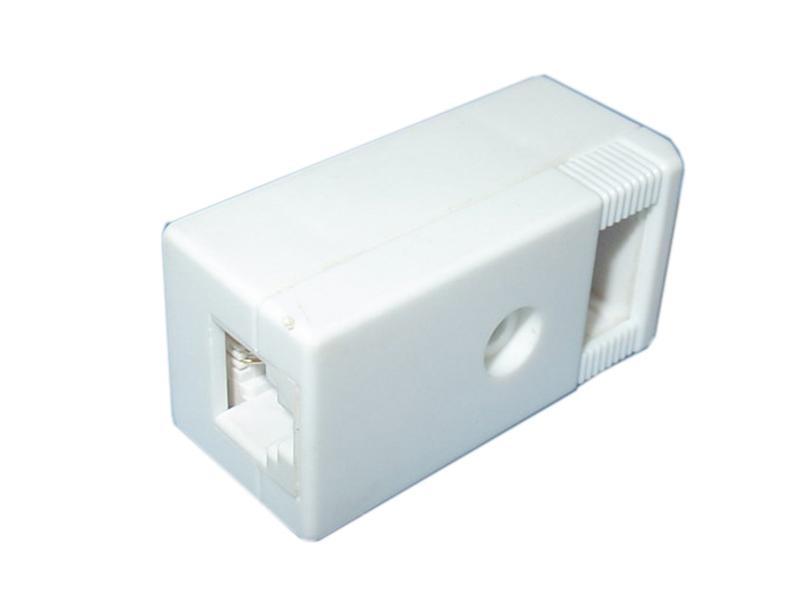

A British telephone junction box, which connects the settled communication wires to the built-in terminals, which are connected with the pins of the sockets. The sockets are British standardized telephone receptacles, which are convenient for the connection of phones, fax machines and other communication devices. Matched screws are attached to mount the junction box on the wall if necessary.

Installation

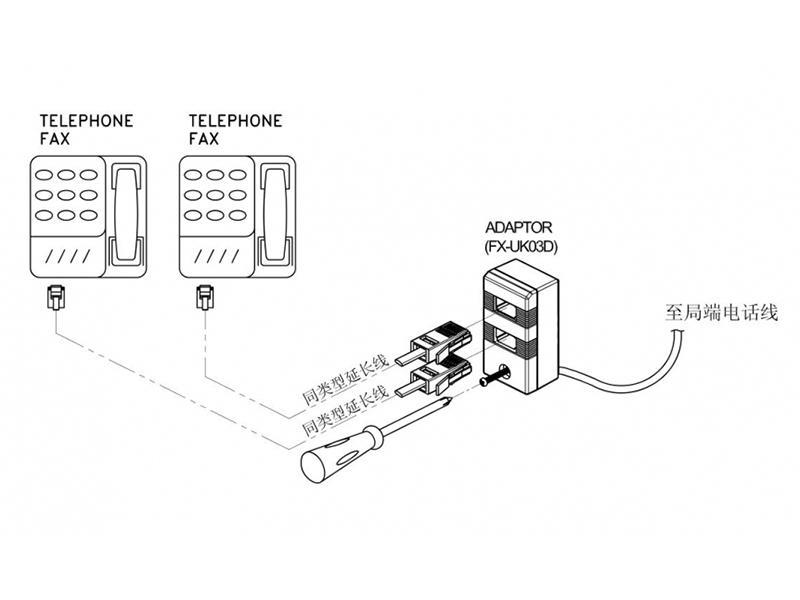

* The adapter is split into two sockets.
* Lock the telephone wire inside the junction box then the signal is linked.
* The splitter adapter features two sockets, which can respectively connect one telephone or fax machine according to the needs.
* Matched screws are attached to mount the junction box on the wall if necessary.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case shell: ABS
  Female pin: gold plated phosphor copper
  RJ11/RJ12 socket: gold plated phosphor copper

Description

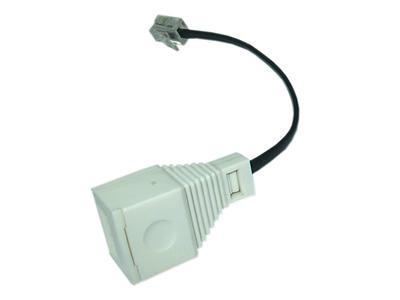

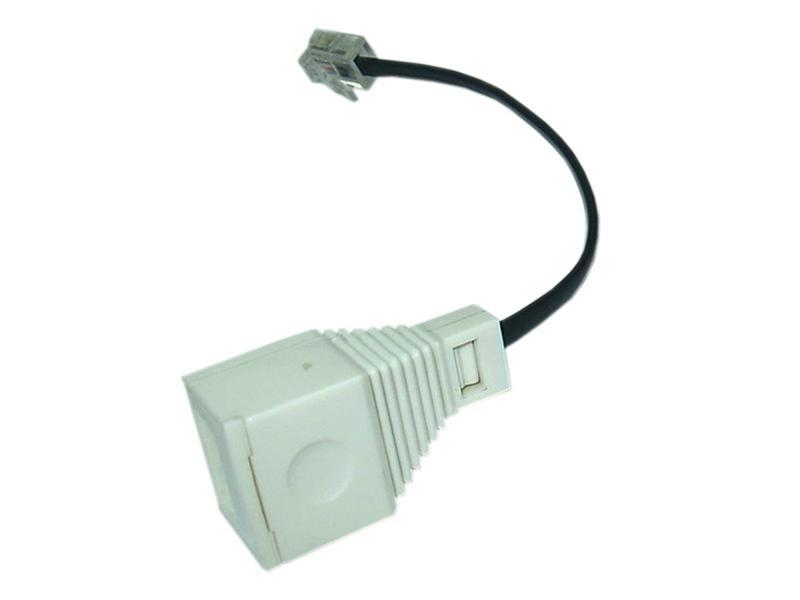

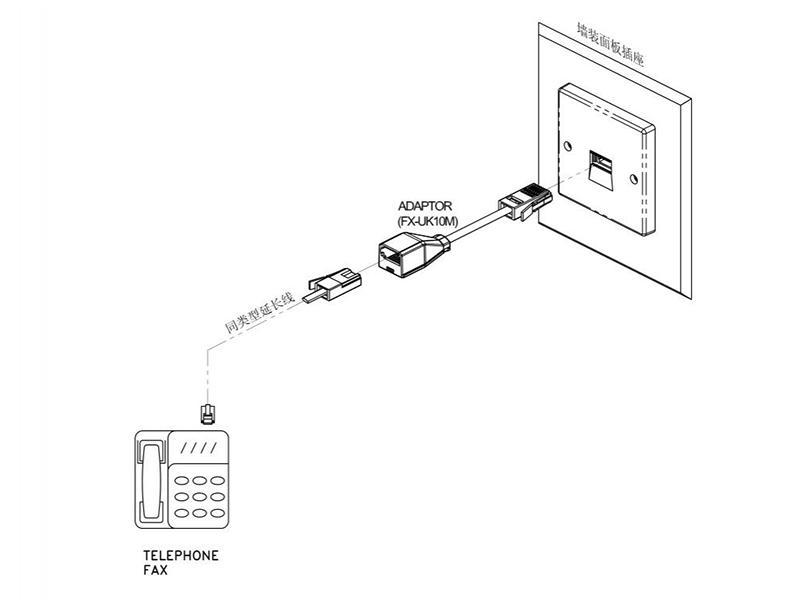

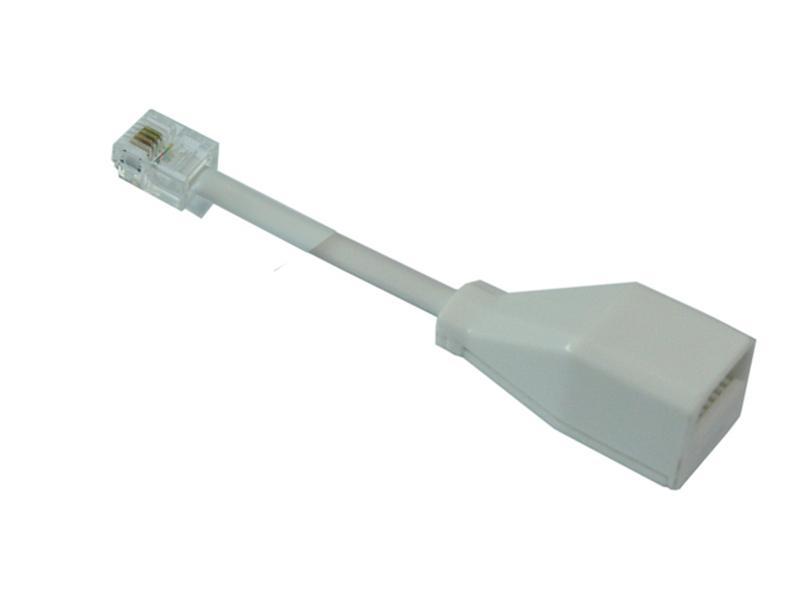

The network accessory, switching the American (RJ11/RJ12) socket to the British socket, adapts to the connection of phones, fax machines and other communication equipment. Matched screws are attached to mount the adapter on the wall if necessary.

Installation

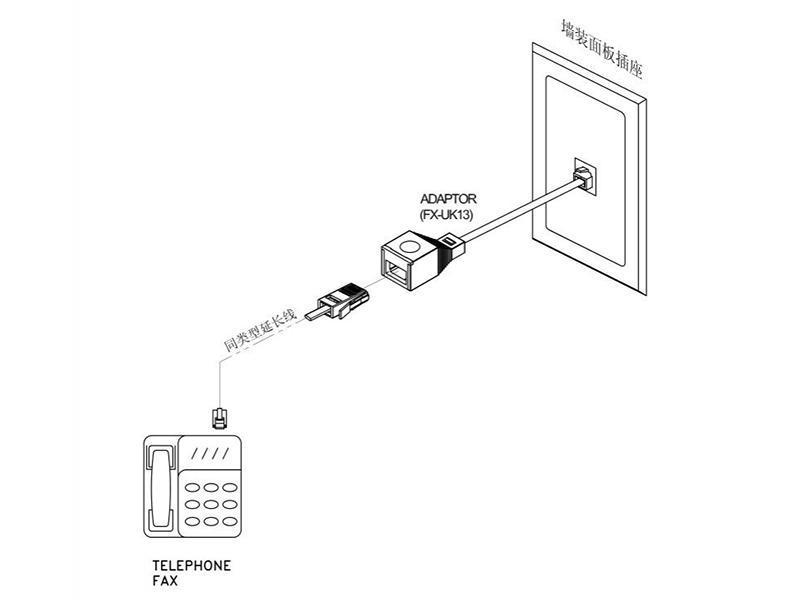

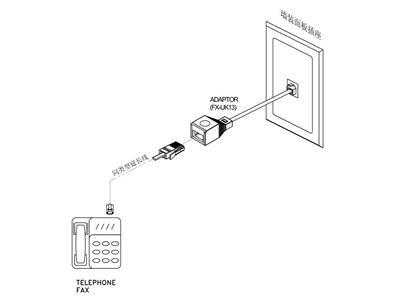

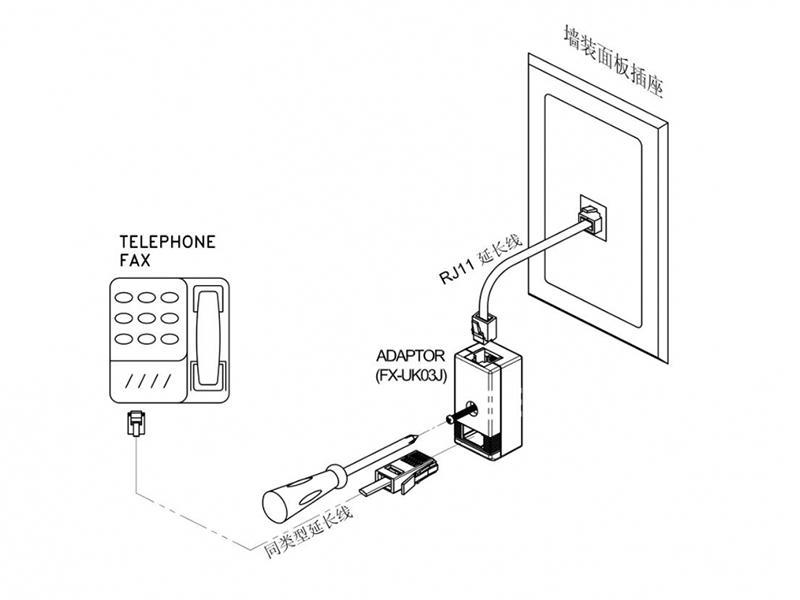

* The telephone adapter is used to convert the American (RJ11/RJ12) socket to the British socket by the help of a RJ11 extension cable.
* Insert the RJ11 plug of the adapter into the American wall socket. * Same-type extension cable can be plugged in the native female jack of the adapter whose another end connects to a telephone or fax machine.
* Matched screws are attached to mount the adapter on the wall or any place if necessary.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case shell: ABS
  Female pin: gold plated phosphor copper
  RJ11/RJ12 socket: gold plated phosphor copper

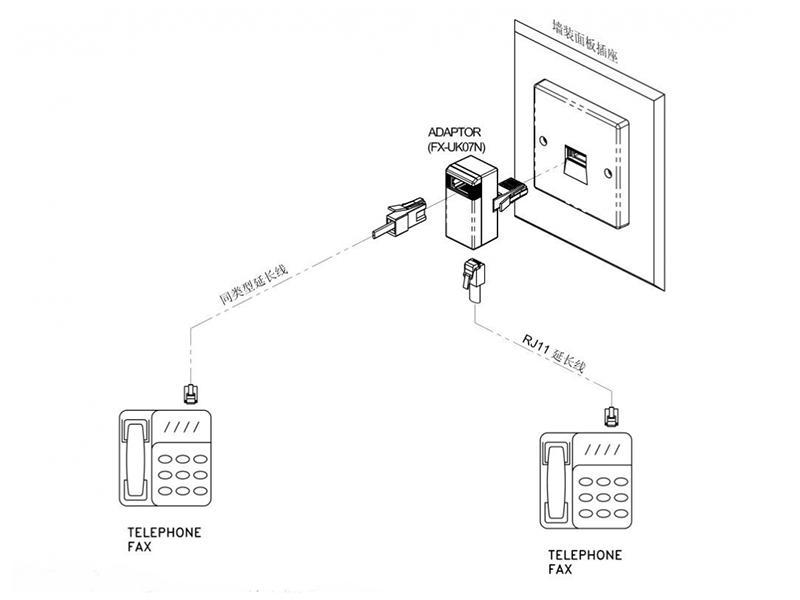

Description

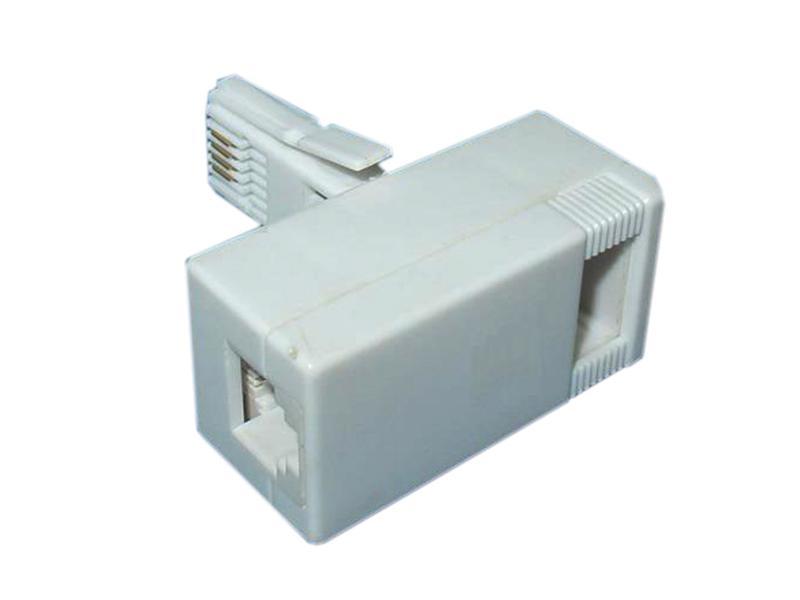

The telephone accessory, switching the British plug to the US (RJ11/RJ12) socket, adapts to the connection of phones, fax machines and telecoms equipment. Meanwhile another British phone plug can be inserted to the female jack of the adapter.

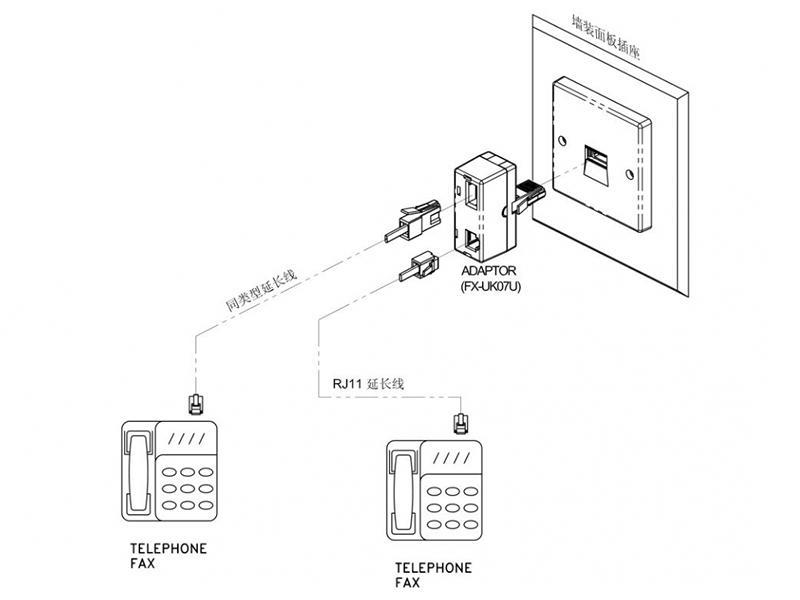

Installation
* Insert the plug of your adapter into the wall socket.
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, which can connect a telephone or fax machine.
* Corresponding extension cable can be plugged in the native female jack, which can connect another telephone or fax machine.
* Two telephones or fax machines can be used at the same time for adaption of different interfaces.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case shell: ABS
  British plug terminal: nickel plated brass
  Female pin: gold plated phosphor copper
  RJ11/RJ12 jack: gold plated phosphor copper

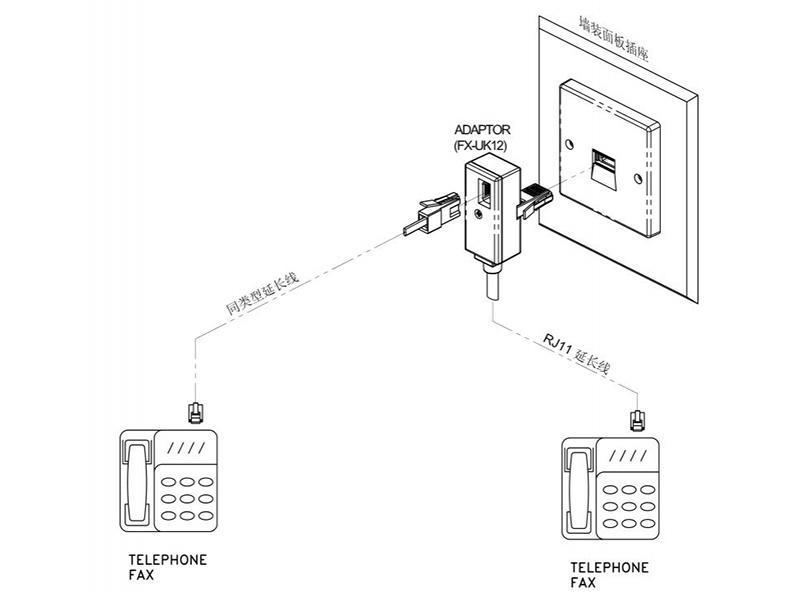

Description

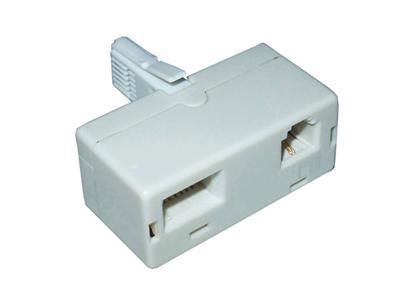

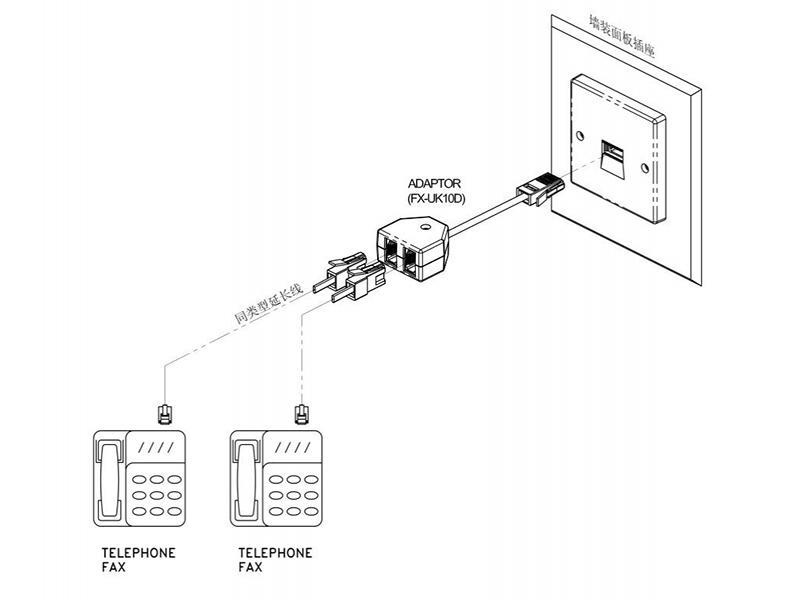

The phone splitter adapter, switching the British plug to the US (RJ11/RJ12) plug, which can directly connect to phones, fax machines and other communication terminal devices. Meanwhile other British phone plugs can be inserted to the female jack of the adapter.

Installation

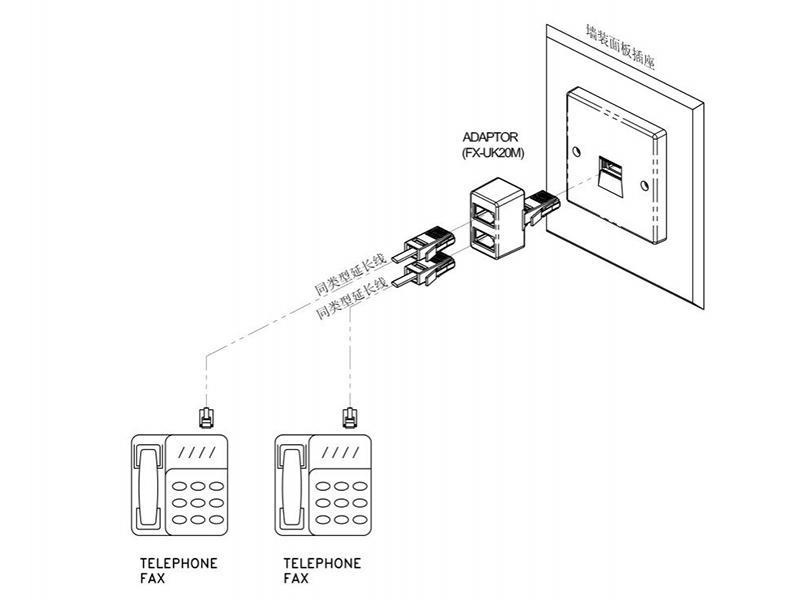

* Insert the plug of your adapter into the wall socket.
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, which can connect a telephone or fax machine.
* Corresponding extension cable can be plugged in the native female jack, which can connect another telephone or fax machine.
* Two telephones or fax machines can be used at the same time for adaption of different interfaces.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case shell: ABS
  British plug terminal: nickel plated brass
  Female pin: gold plated phosphor copper
  RJ11/RJ12 socket: gold plated phosphor copper

Description

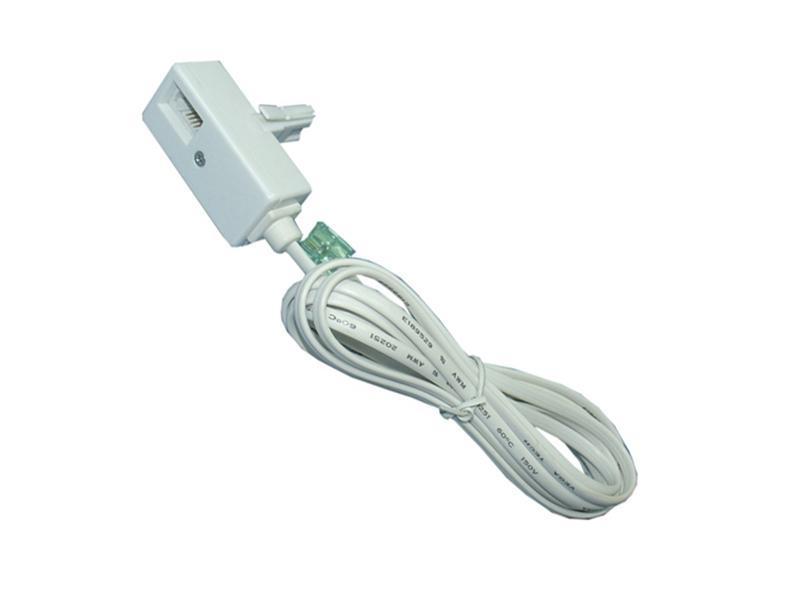

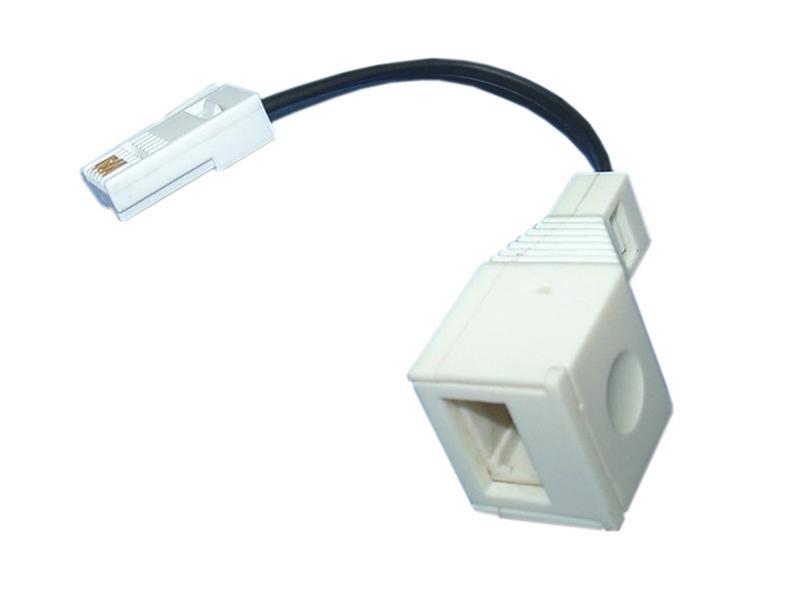

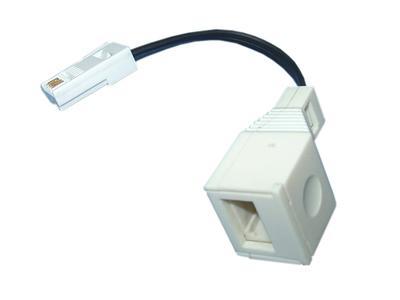

A British extension cable to extend the immobile sockets to everywhere you want.

Installation

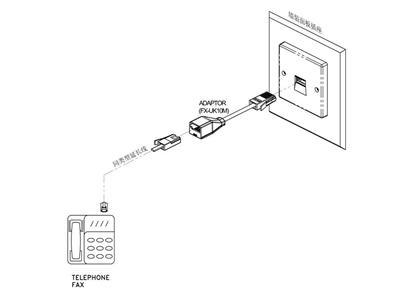

* The socket adapter is utilized to extend the fixed socket to elsewhere.
* Plug the adapter into the wall socket panel
* One telephone or fax machine can be plugged into the socket of the adapter according to the needs.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  British plug terminal: nickel plated brass
  Female pin: gold plated phosphor copper

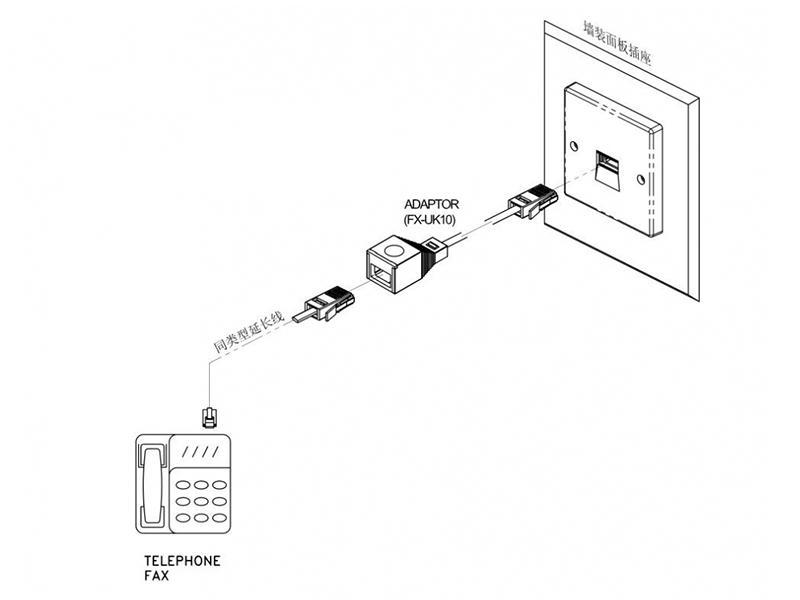

Description
A British extension cable to extend the immobile sockets to everywhere you want.

Installation

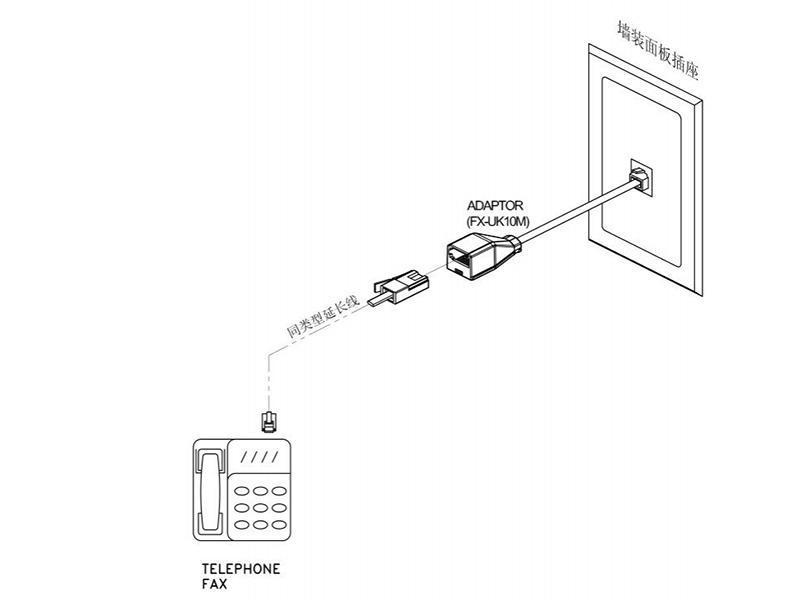

* The socket adapter is utilized for switching the American sockets to the British ones and extend it.
* Plug the RJ11 adapter into the American wall socket panel
* Same-type extension cable can be plugged in female jack and another end can connect another telephone or fax machine.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
• Materials

  Case Shell: ABS
  Female pin: gold plated phosphor copper
  RJ11/RJ12 socket: gold plated phosphor copper

Description

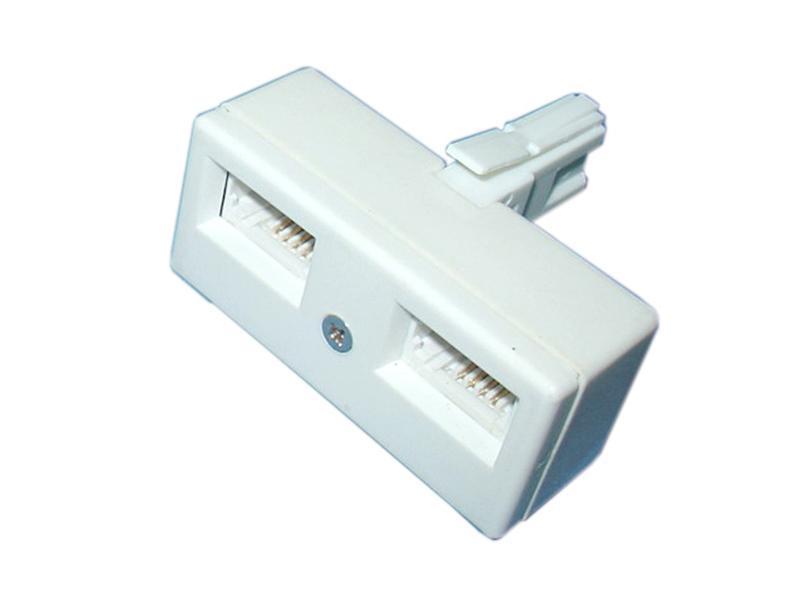

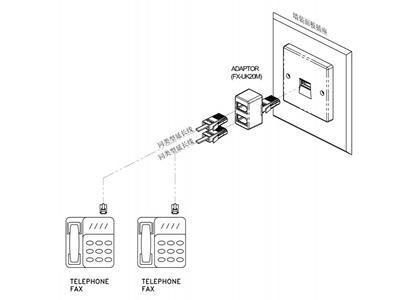

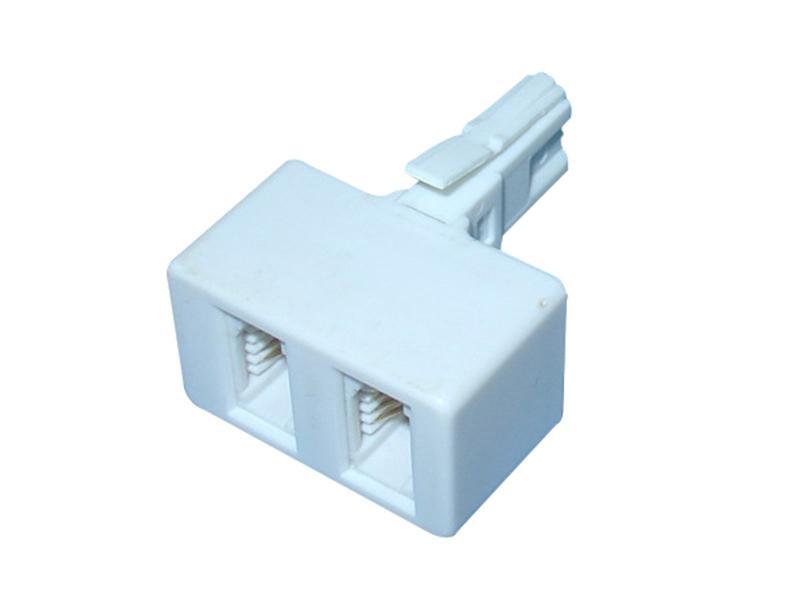

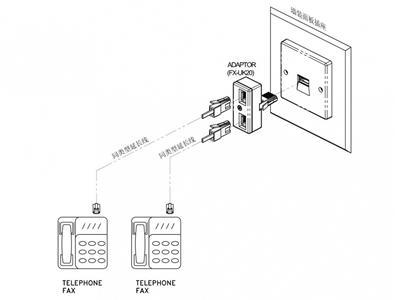

A telephone splitter adapter, expand one single British socket to two same sockets, which adapts to the connection of two phones, fax machines or any communications equipment.

Installation

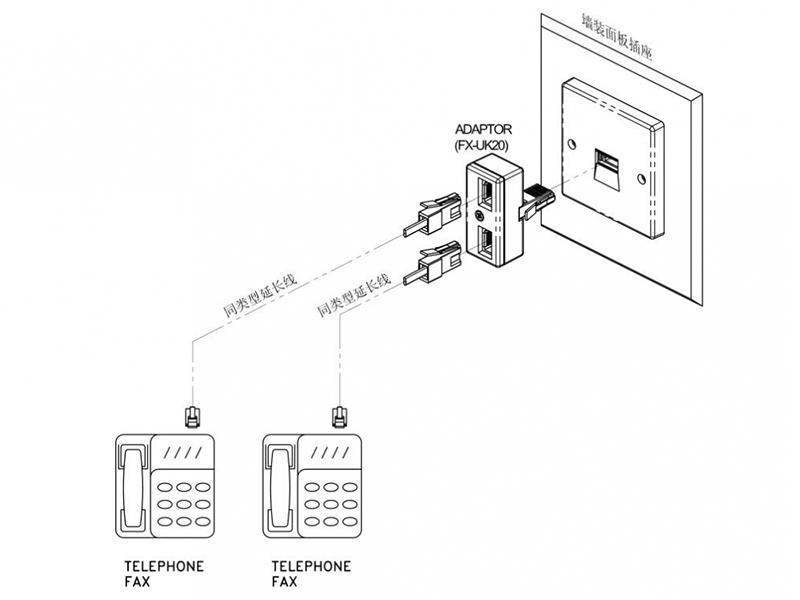

* The adapter is split into two sockets.
* Lock the telephone wire inside the junction box then the signal is linked.
* The splitter adapter features two sockets, which can respectively connect one telephone or fax machine according to the needs.
* Matched screws are attached to mount the junction box on the wall if necessary.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case shell: ABS
  British plug terminal: PC
  Female pin: gold plated phosphor copper
  RJ11/RJ12 socket: gold plated phosphor copper

Description

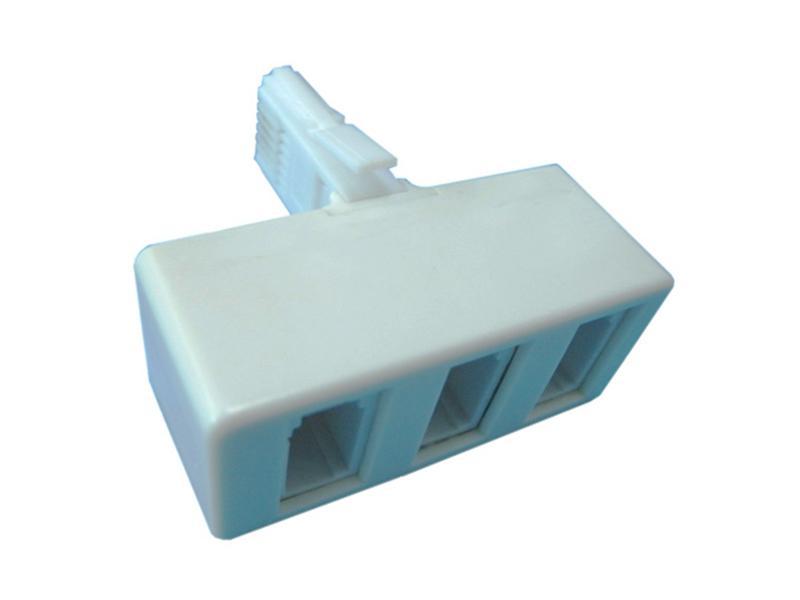

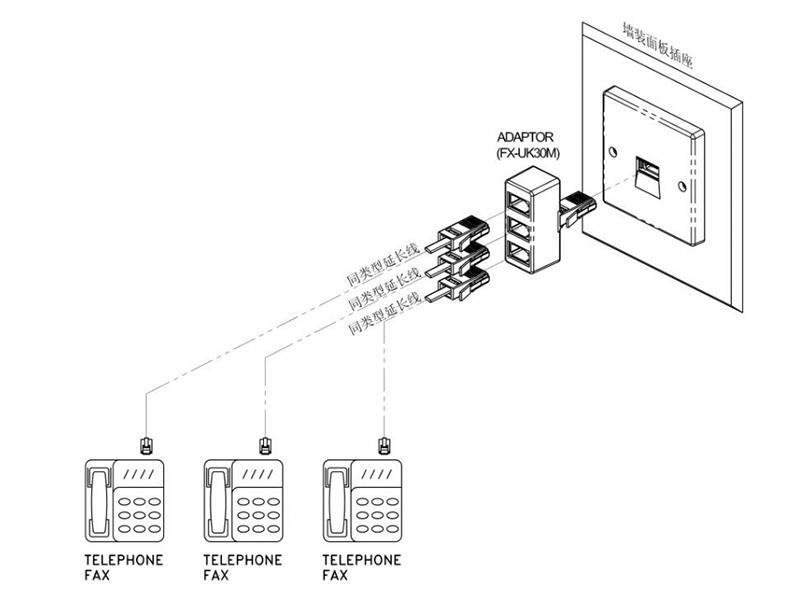

A telephone splitter adapter, expand one single British socket to three same-standardized sockets, which adapts to the connection of three phones, fax machines or any communications equipment.

Installation
* The adapter is split into three sockets.
* Insert the plug of your adapter into the wall socket.
* The splitter adapter features three sockets, which can respectively connect one telephone or fax machine according to the needs.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case shell: ABS
  Female pin: gold plated phosphor copper
  British plug: PC
  British plug terminal: gold plated brass

Shown above are some of our telephone adapters made according to the socket types of the equipment. We have wall mount adapters and inline adapters according to the needs of your communication application. If you have specific needs, please let us know your complete list of specifications and we can provide custom products for your communication system.
