Telephone Adapter to Netherlands

Description

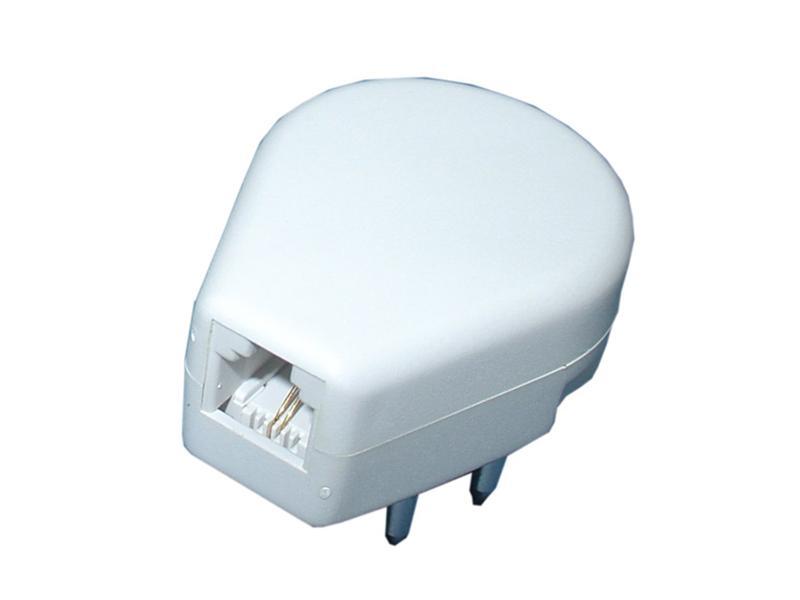

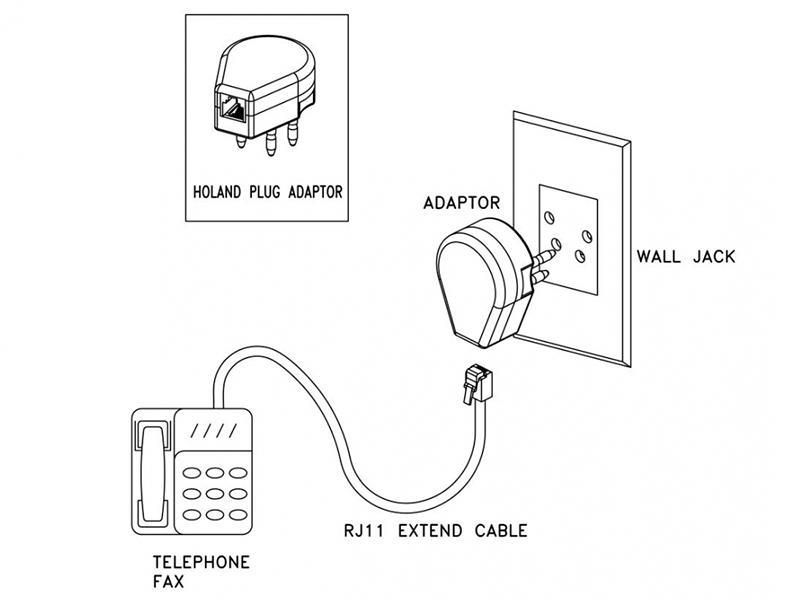

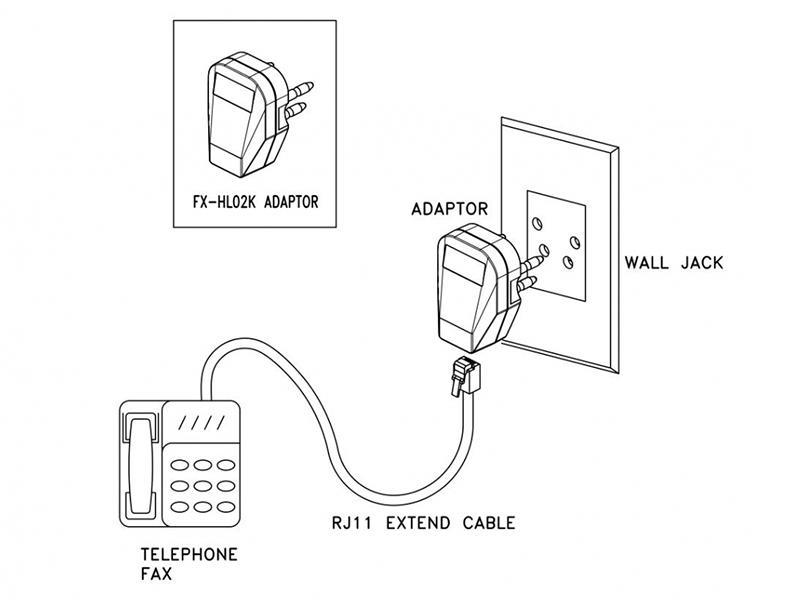

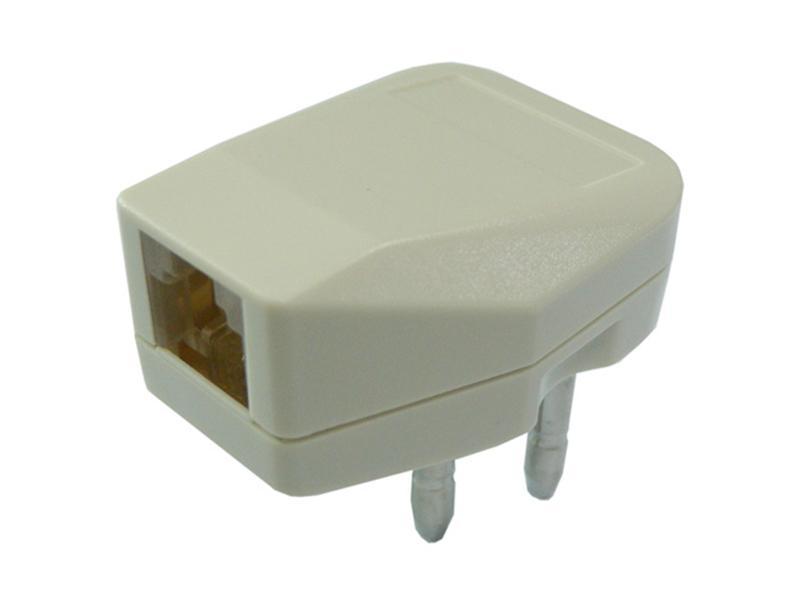

The telephone socket adapter splitter, switching the Netherlands telecoms plug to the US (RJ11/RJ12) receptacle, hence adapts to the communication connections of phones, fax machines and other Network terminal equipment.

Installation

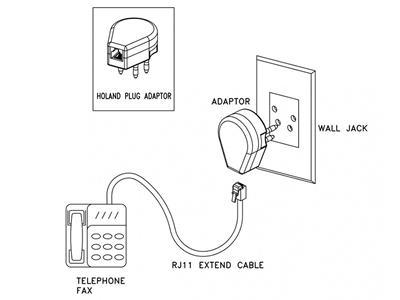

* Connect the Holland plug of the Adaptor into the telephone wall socket
* Connect your RJ11 plug of extend cable into the adaptor RJ11 socket
* Connect your another RJ11 plug of extend cable into the telephone (or Fax) RJ11 socket

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Pin: nickel plated brass
  RJ11/RJ12 jack: gold plated phosphor copper

Description

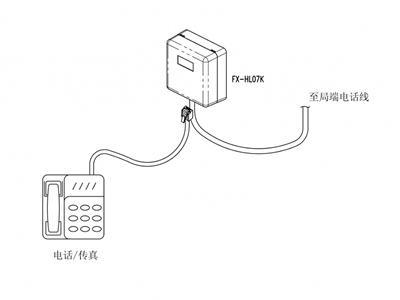

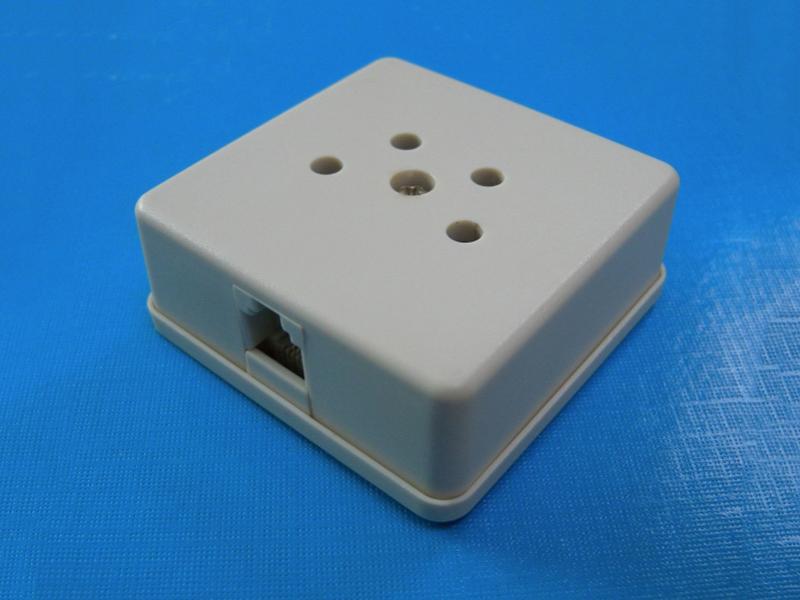

A telephone junction box, used in connecting the arranged communication wires to the US (RJ11/RJ12) sockets for convenience of communication connection of phones, fax machines or communication terminal equipment.

Installation
* Insert the plug of your adapter into the wall socket panel.
* Plug the RJ11 extension cord into the RJ11 female jack of the splitter adapter and connect the other end to a telephone or fax machine.
* Plug the corresponding extension cord into the native female socket of the telephone adapter and connect the other end to another telephone or fax machine.
* Two telephones or fax machines can be used at the same time to adapt to the different interfaces.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Pin: nickel plated brass
  RJ11/RJ12 socket: gold plated phosphor copper

Description

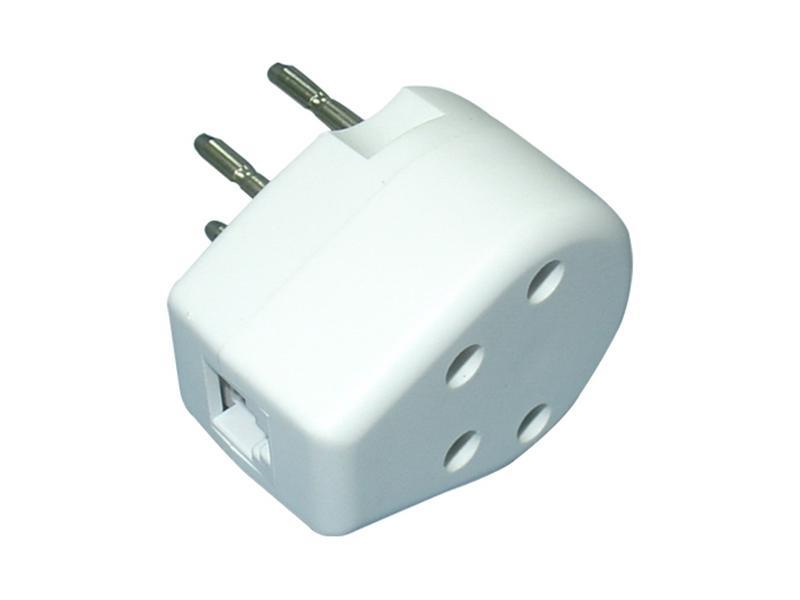

The telephone socket adapter, transforming the Netherlands plug to the US (RJ11/RJ12) socket, adapts to the connection of phones, fax machines and communication terminal equipment. Meanwhile another Netherlands phone plug can also be inserted to the female jack of the adapter.

Installation

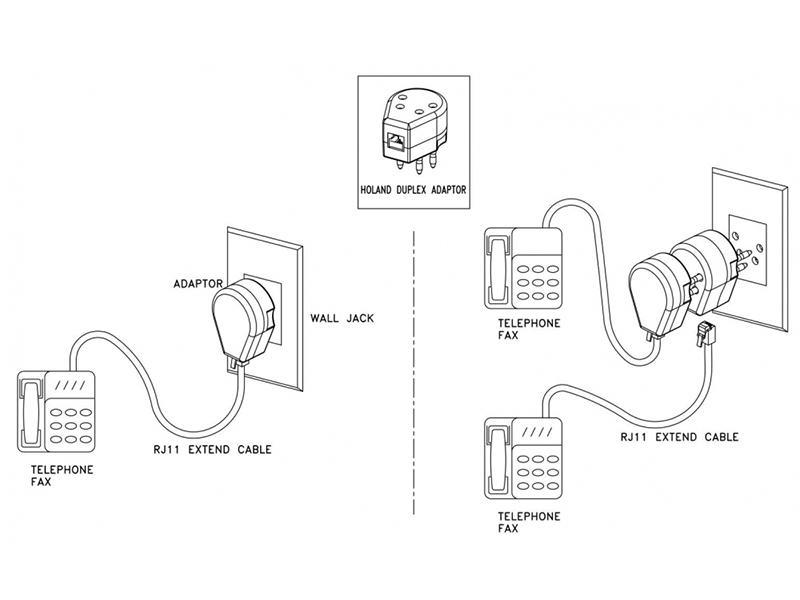

* Pull out your using Holland plug and put your duplex adaptor plug into telephone wall socket
* Connect the Holland plug of the adaptor into the duplex adaptor socket
* Connect your RJ11 plug of extend cable into the duplex adaptor RJ11 socket
* Connect your RJ11 another plug of extend cable into the telephone (or Fax machine) RJ11 socket
* Then you can use the 2 telephones (or Fax machines) at the same time

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Pin: nickel plated brass
  RJ11/RJ12 socket: gold plated phosphor copper

Description

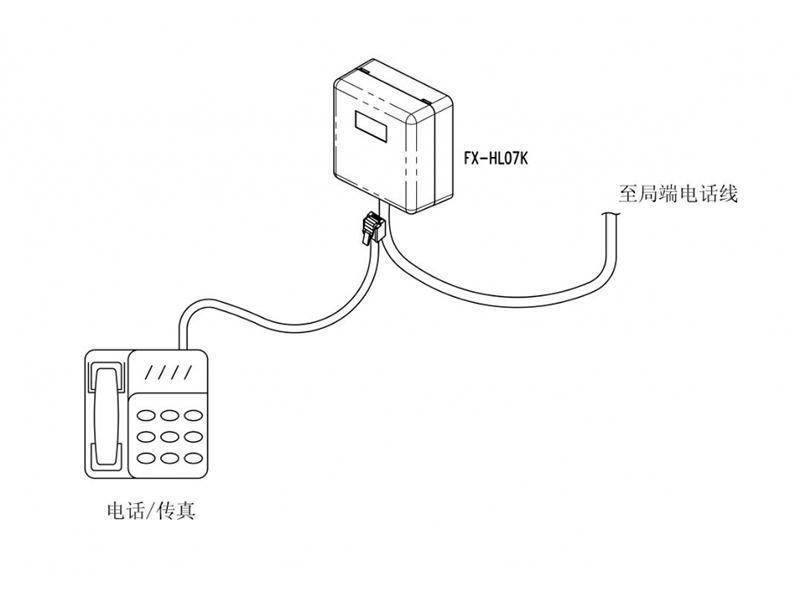

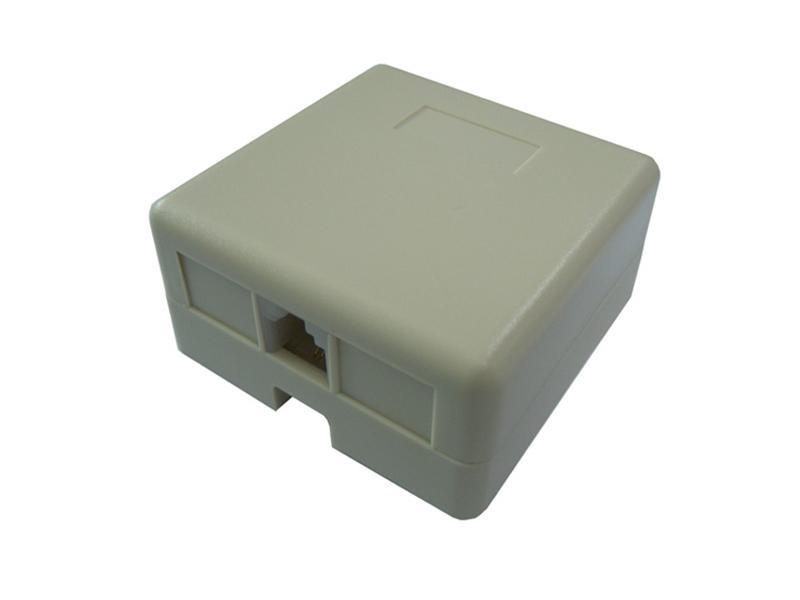

The wall mounted RJ11 Adapter, switching the Netherlands telecom plug to the US (RJ11/RJ12) plug, which can directly connect to phones, fax machines and data terminal equipment. Meanwhile another Netherlands phone plug can also be inserted to the female jack of the adapter.

Installation

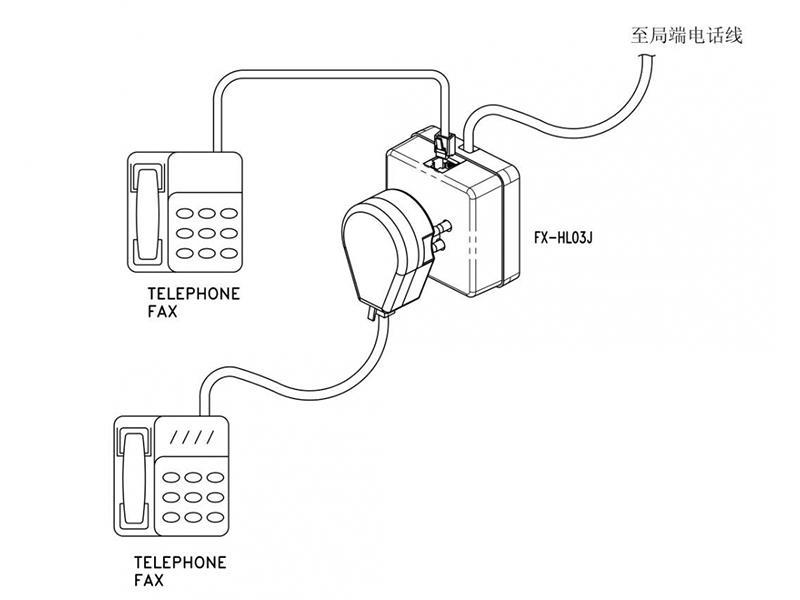

* Lock the telephone wire inside the junction box and then the signal is linked.
* Insert the Netherlands plugs to the corresponding sockets of the junction box to easily connect the telephones, fax machines and other communication equipment.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Telephone wire: 26AWG/28AWG pure copper core
  Pin: nickel plated brass
  RJ11/RJ12 socket: gold plated phosphor copper

Description

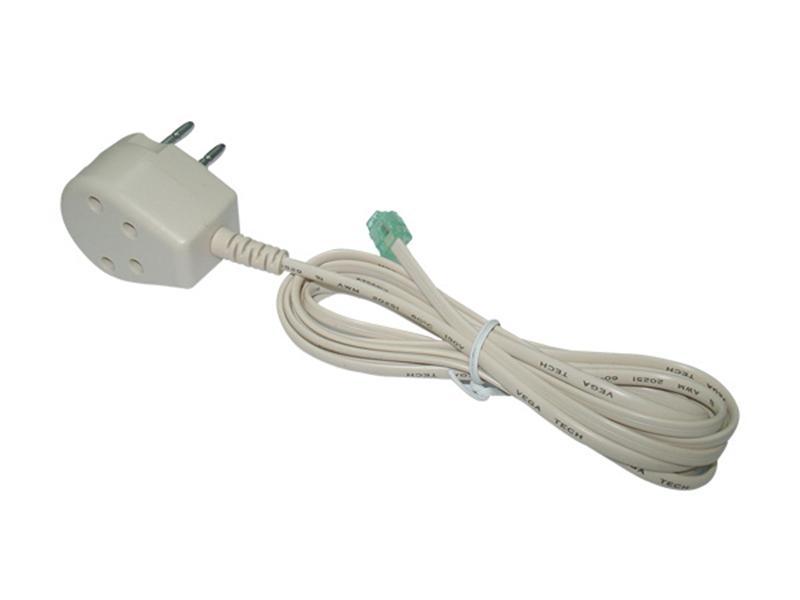

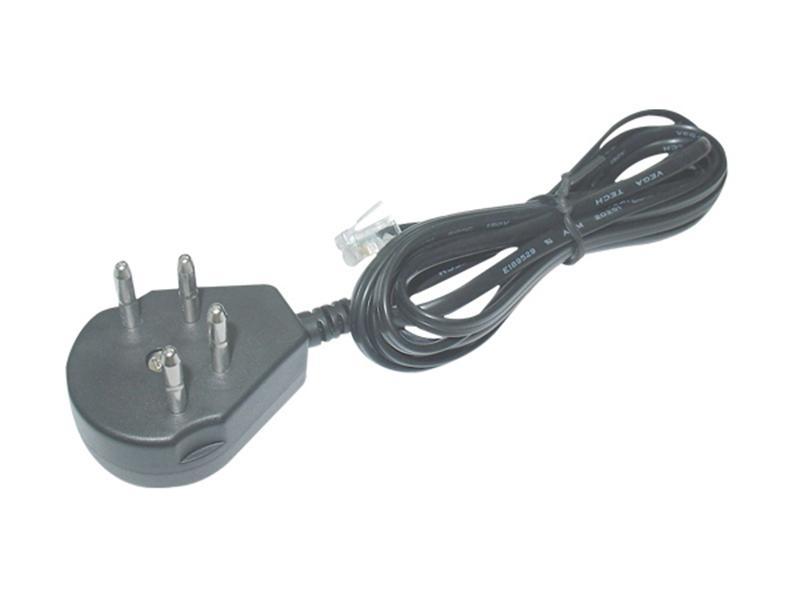

The RJ11 Adapter, switching the Netherlands telecom plug to the US (RJ11/RJ12) plug, which can directly connect to phones, fax machines and other communication terminal devices.

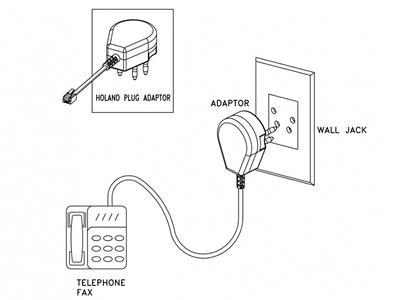

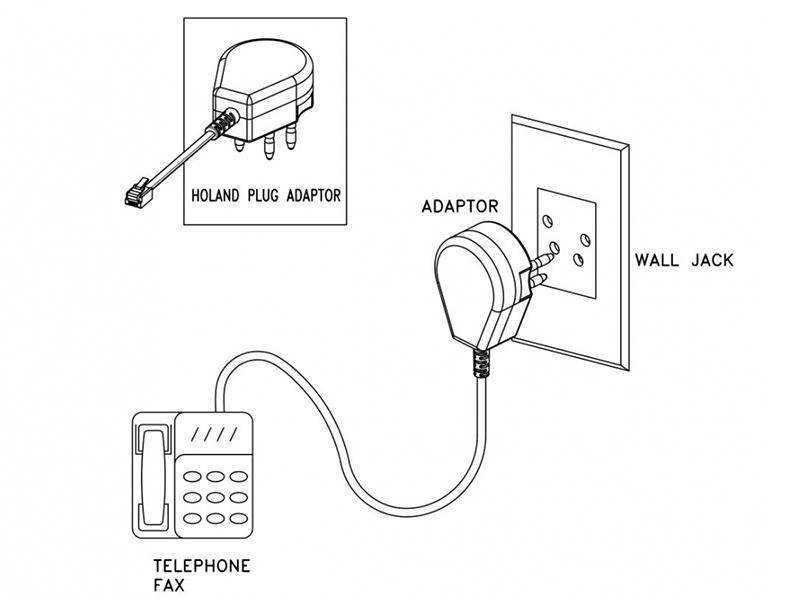

Installation
* Connect the Holland plug of the Adaptor into the telephone wall socket
* Connect your another RJ11plug of extend cable into the telephone (or Fax) RJ11 socket

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Telephone wire: 26AWG/28AWG pure copper core
  Pin: nickel plated brass
  RJ11/RJ12 socket: gold plated phosphor copper

Description

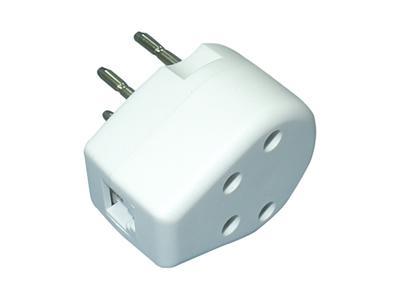

The RJ11 telephone Adapter, switching the Netherlands telecom plug to the US (RJ11/RJ12) plug, which can directly connect to phones, fax machines and other communication terminal devices. Meanwhile another Netherlands phone plug can also be inserted to the female jack of the adapter.

Installation

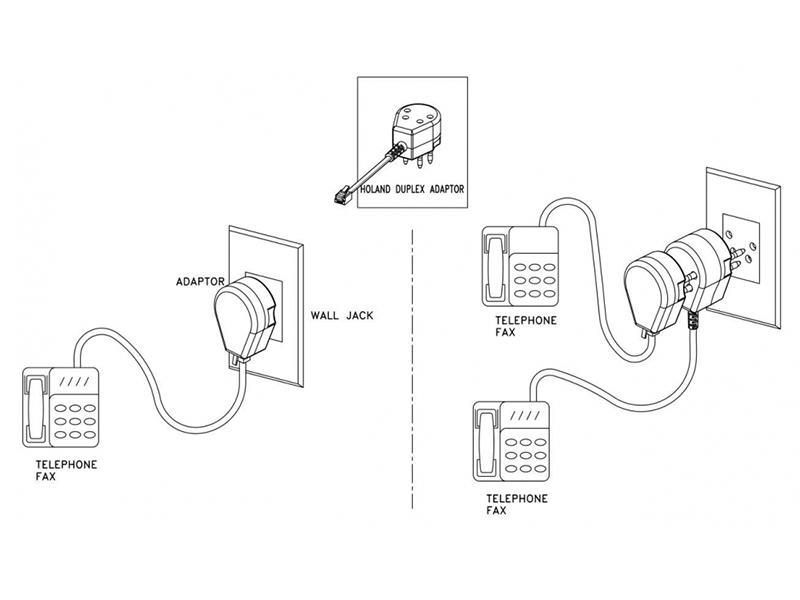

* Pull out your using Holland plug and put your duplex adaptor plug into telephone wall socket.
* Connect the Holland plug of the adaptor into the duplex adaptor socket. Connect your RJ11 plug into the telephone (or Fax machine) RJ11 socket.
* Then you can use the 2 telephones (or Fax machines) at the same time.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Telephone wire: 26AWG/28AWG pure copper core
  Pin: nickel plated brass
  RJ11/RJ12 socket: gold plated phosphor copper

Shown above are some of our telephone adapters made according to the socket types of the equipment. We have wall mount adapters and inline adapters according to the needs of your communication application. If you have specific needs, please let us know your complete list of specifications and we can provide custom products for your communication system.
