Telephone Adapter to US

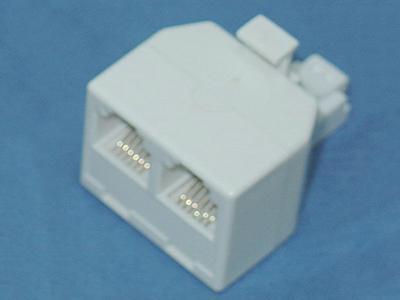

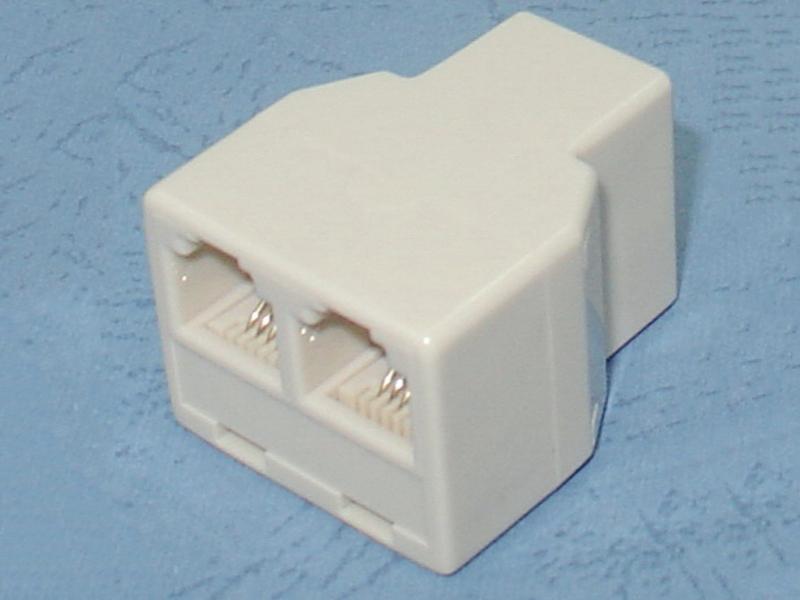

Description

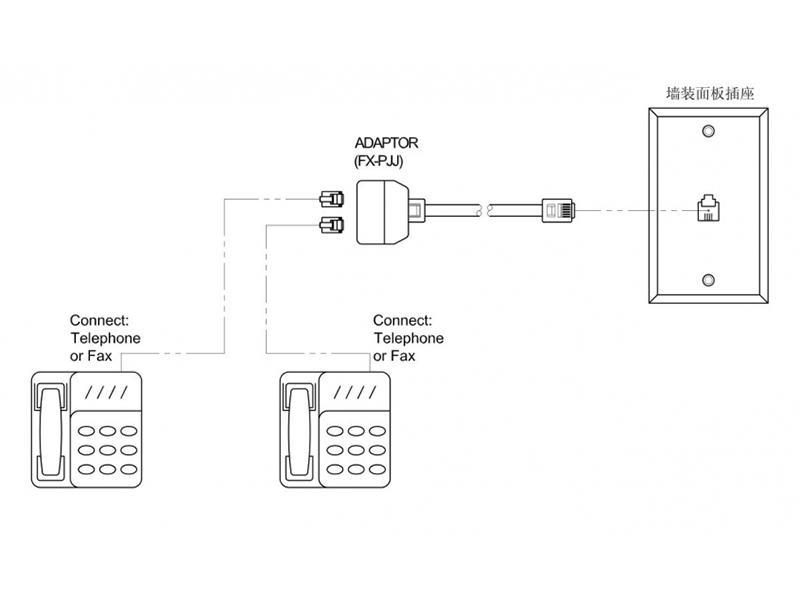

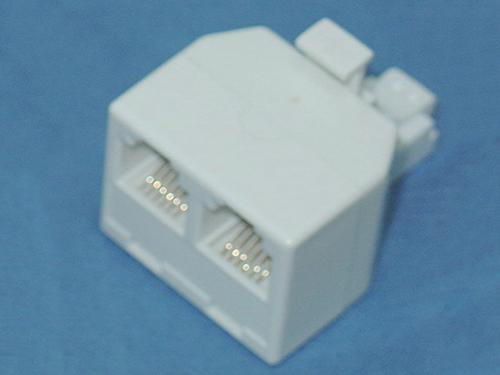

A communication adapter, expanding one single American (RJ11/RJ12) socket to two same standardized sockets, which adapts to the connection of two phones, fax machines or any communications equipment.

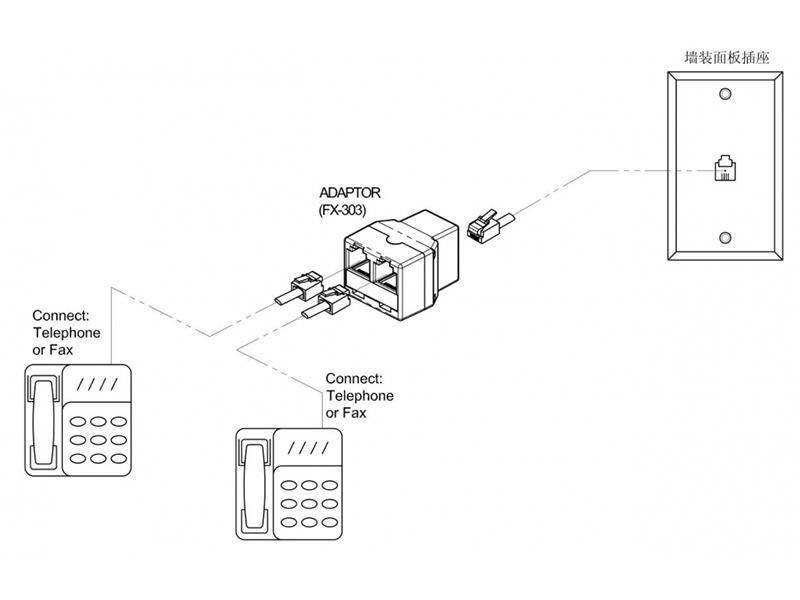

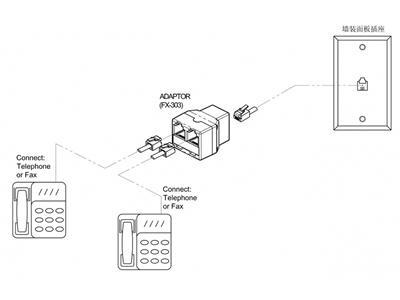

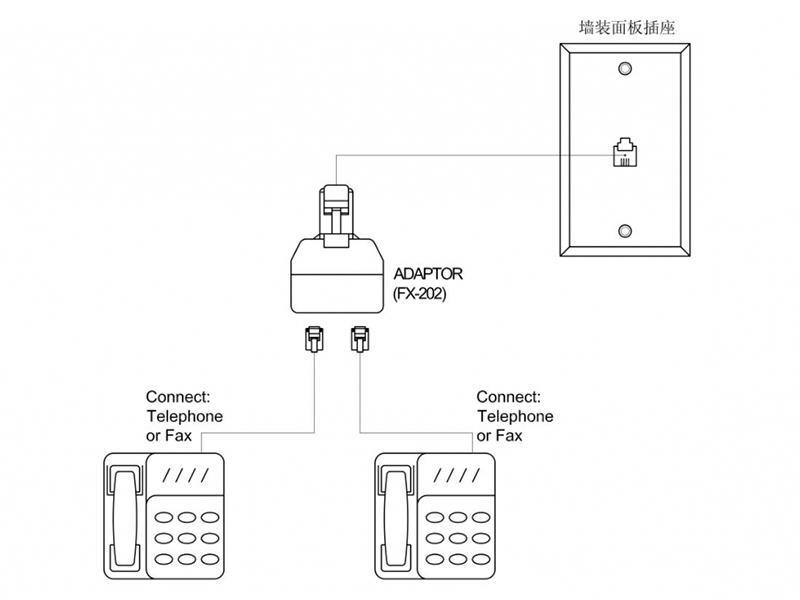

Installation
* The adapter is split into two sockets, and can be functioned to extend the fixed socket to elsewhere.
* Plug your adapter into the wall socket panel.
* The splitter adapter features two RJ11 female sockets, which can satisfy the needs of connecting one or two telephones (or fax machines).

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ11/RJ12 plug: nickel plated brass
  RJ11/RJ12 socket: gold plated phosphor copper

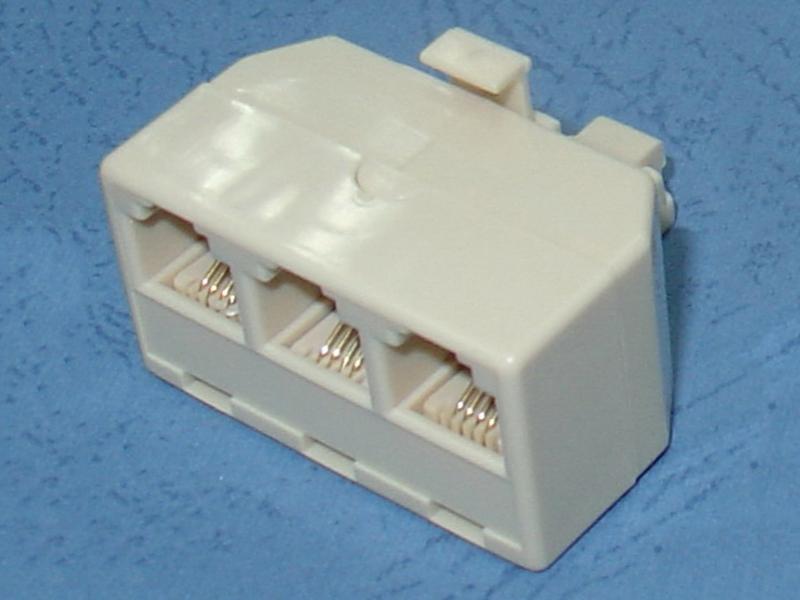

Description

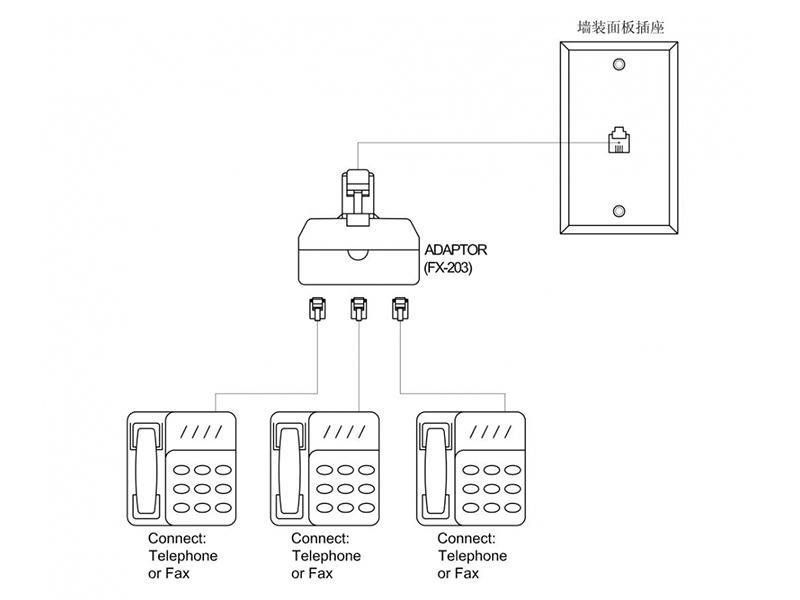

A communication adapter, expanding one single American (RJ11/RJ12) sockets to three same standardized sockets, which adapts to the connection of three phones, fax machines or any telecoms equipment.

Installation
* The communication adapter is split into three, i.e. expands one socket to three sockets.
* Plug your adapter into the wall socket panel.
* The splitter adapter features two RJ11 female sockets, which can satisfy the needs of connecting maximum three telephones (or fax machines).

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ11/RJ12 plug: nickel plated brass
  RJ11/RJ12 socket: gold plated phosphor copper

Description

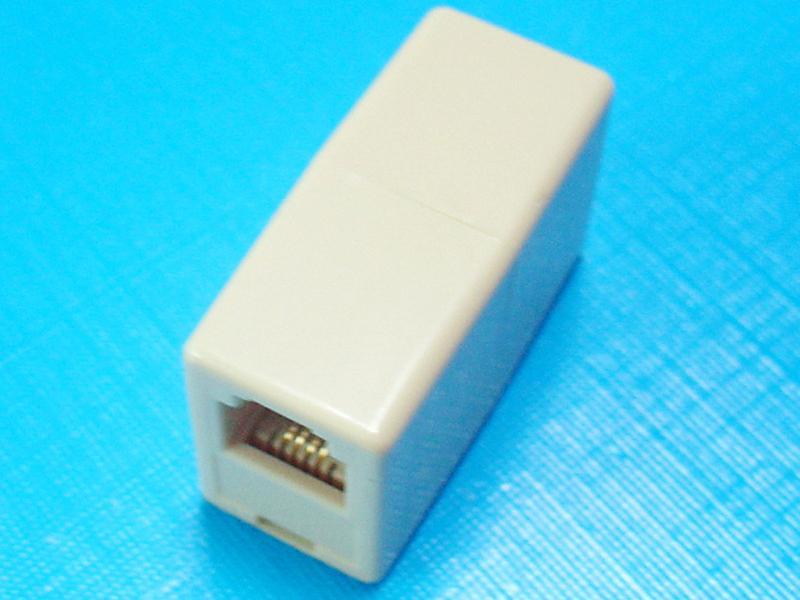

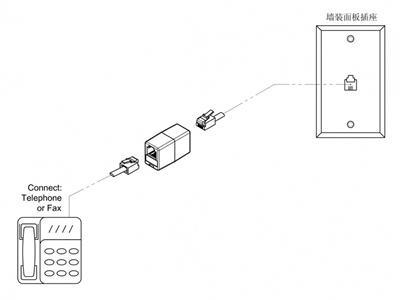

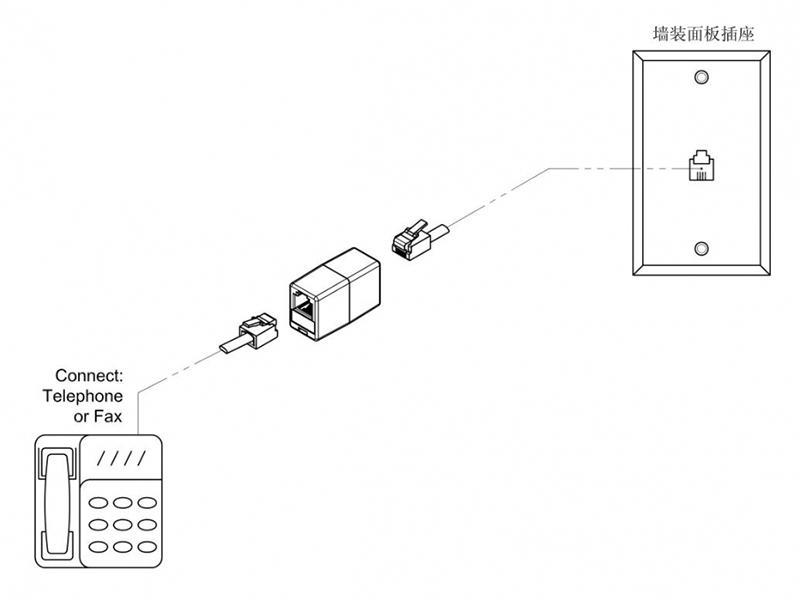

The in-line telephone cord coupler features two US (RJ11/RJ12) telecoms sockets and can directly connect two telephone wires.

Installation
* The in-line telephone cord coupler features two US (RJ11/RJ12) telecoms sockets and can directly connect two telephone wires. The application method is as follows:
* Connect one R11 extension cord into one socket of the adapter and plug another end into the wall socket.
* Plug another R11 extension cable into another socket, which can connect one telephone or fax machine.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ11/RJ12 socket: gold plated phosphor copper

Description
The adapter converter can achieve the direct connection of US ethernet RJ 45 interface. Internal PCB features anti-interference wiring design. The communication adapter can directly connect two cables.

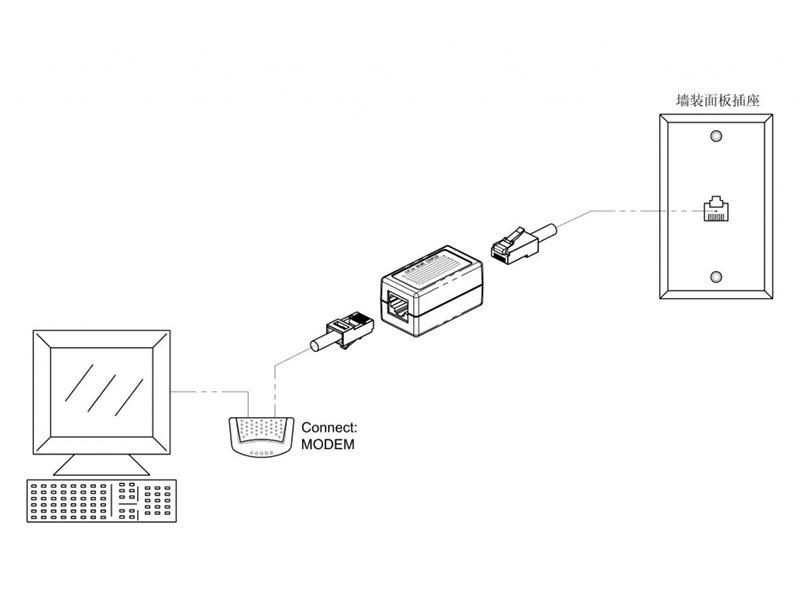

Installation
* The adapter converter can achieve the direct connection of US ethernet RJ 45 interface. Internal PCB features anti-interference wiring design. The communication adapter can directly connect two cables. The application method is as follows:
* Connect one R11 extension cord into one socket of the adapter and plug another end into the wall socket.
* Plug the R45 extension cable into another socket and connect its another end to the modem.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ11/RJ12 jack: gold plated phosphor copper
  PCB: FR-4 (double sided fiberglass board)

Description
The adapter connector can achieve the direct connections of three US RJ11/RJ12 plug interfaces. The splitter adapter can directly connect three telephone cables.

Installation
* The adapter connector can achieve the direct connections of three US RJ11/RJ12 plug interfaces. The splitter adapter can directly connect three telephone cables. The application method is as follows:
* Connect one R11 extension cord into one socket of the adapter and plug another end into the wall socket.
* Plug another R11 extension cable into other two sockets of the adapter and connect cable's another end to the communication devices, which can satisfy the connection needs of two telephones or fax machines.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ11/RJ12 jack: gold plated phosphor copper

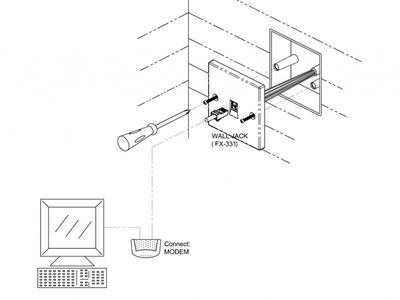

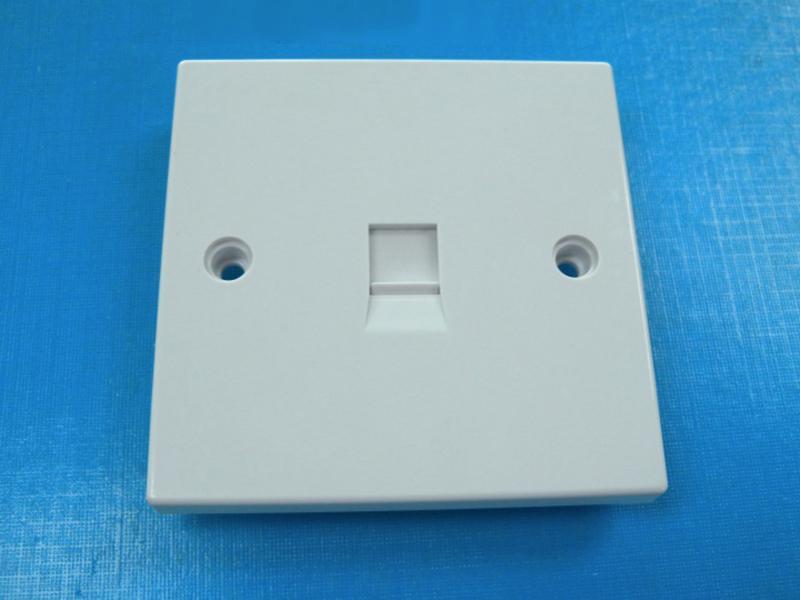

Description
The wall mount plate outlet socket features the standardized size of 86*86. Connect the arranged inner cables to the terminals according to the identified locations. The settled US RJ45 socket can connect the modem and then connect network by one RJ 45 extension cable.

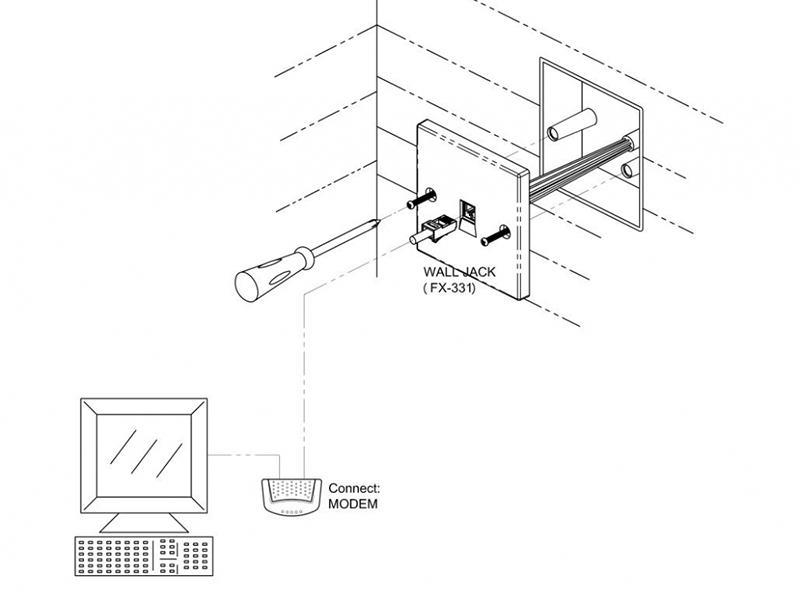

Installation
* Connect the arranged inner cables to the corresponding terminals according to the identified locations and then the signal will be linked.
* Fix the wall jack on the inner box by attached screws.
* Connect the wall jack and the modem by one RJ45 extension cable.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ45 jack: gold plated phosphor copper

Description
The telephone flasher bell will flash when receive the call, which is suitable for the hearing-impaired population.

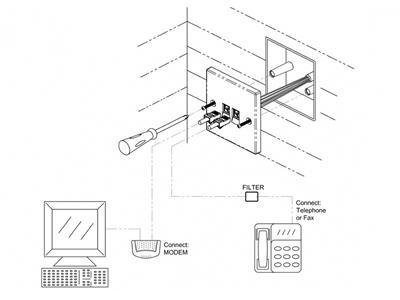

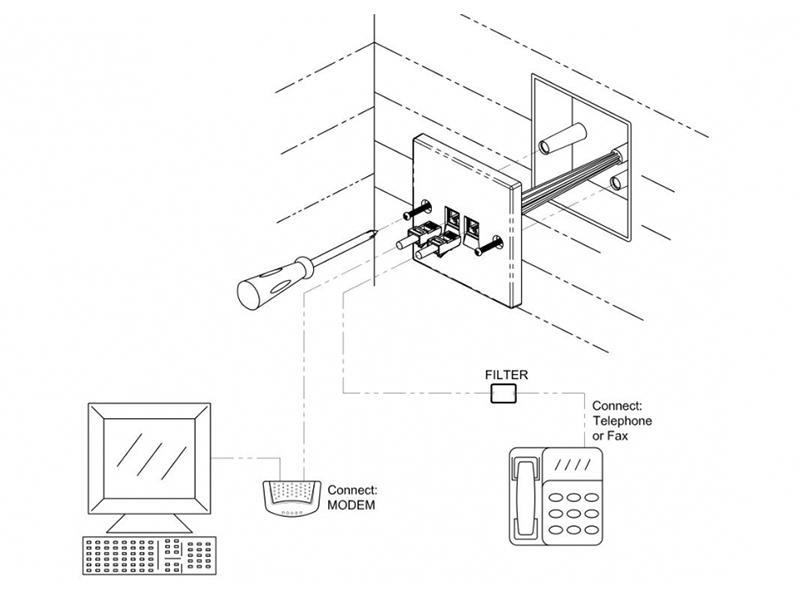

Installation
* Connect the arranged inner box cables to the corresponding terminals according to the identified locations and then the signal will be linked.
* Fix the wall jack on the inner box by attached screws.
* Connect the wall jack (the socket printed a computer symbol) and the modem by one RJ45 extension cable to connect the network.
* Connect the wall jack (the socket printed a telephone symbol) and the filter by one RJ45 extension cable to call or fax.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ45 jack: gold plated phosphor copper
  Telephone wire: 26AWG/28AWG pure copper core

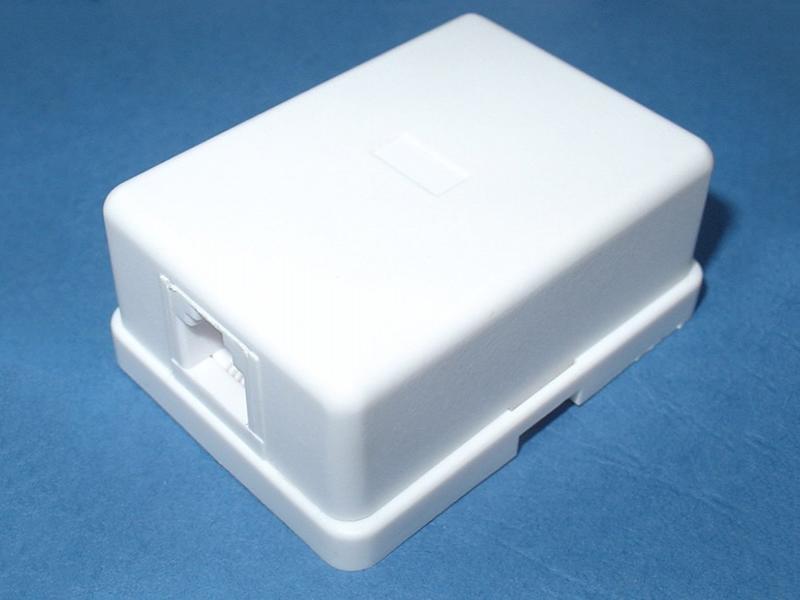

Description

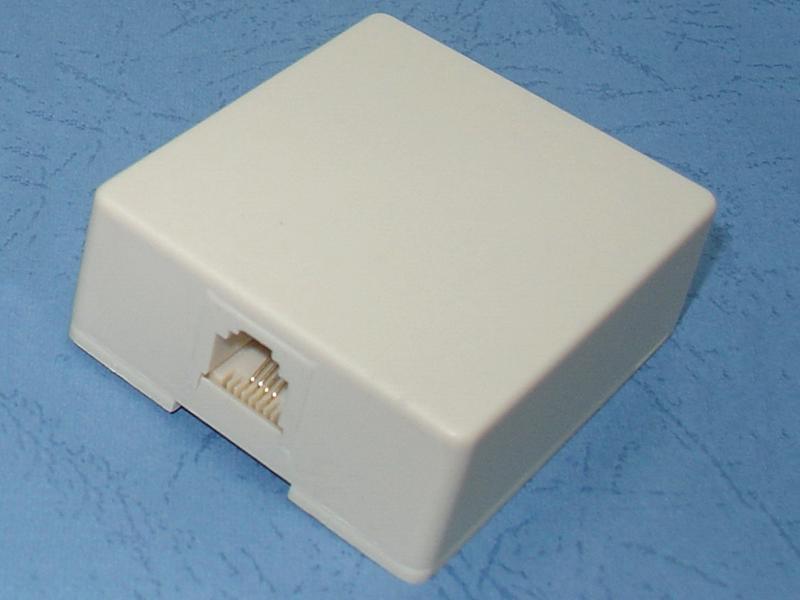

One telephone junction box with US RJ11/RJ12 interfaces, which is convenient for the connection of the telephone, fax machines or other communication devices with US plugs. Connect the settled household telephone cables with the telephone adapter and attached double sides adhesive tape is available for fixing the junction box on the wall.

Installation

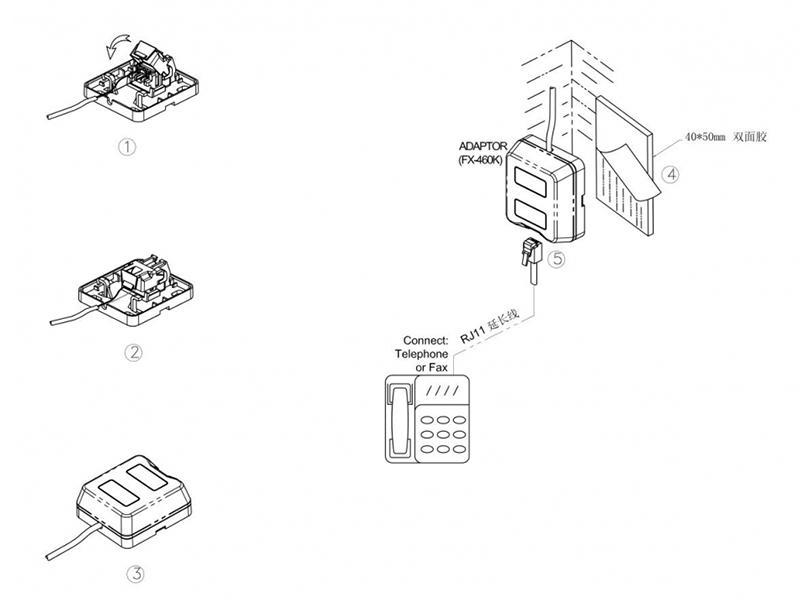

The adapter is the American junction box and the application method is as follows:
Open the upper cover, put the telephone wire on the internal insulation displacement connector as picture ①.
Push down the internal cover as indicated by the arrow. Then the signal is connected.
When you have done the below steps, it will be like as picture ②.
Remount the upper cover as picture③.
If necessary, the adapter can be fixed on the wall or elsewhere by attached double sides adhesive tape.
Connect the RJ11 socket of the adapter and the telephone or fax machine by RJ11 extension cable.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ11/RJ12 jack: gold plated phosphor copper

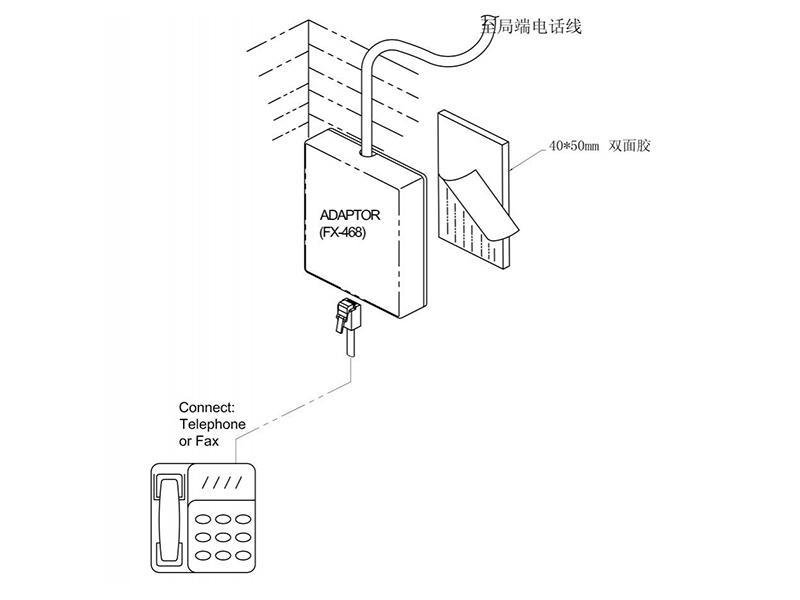

Description

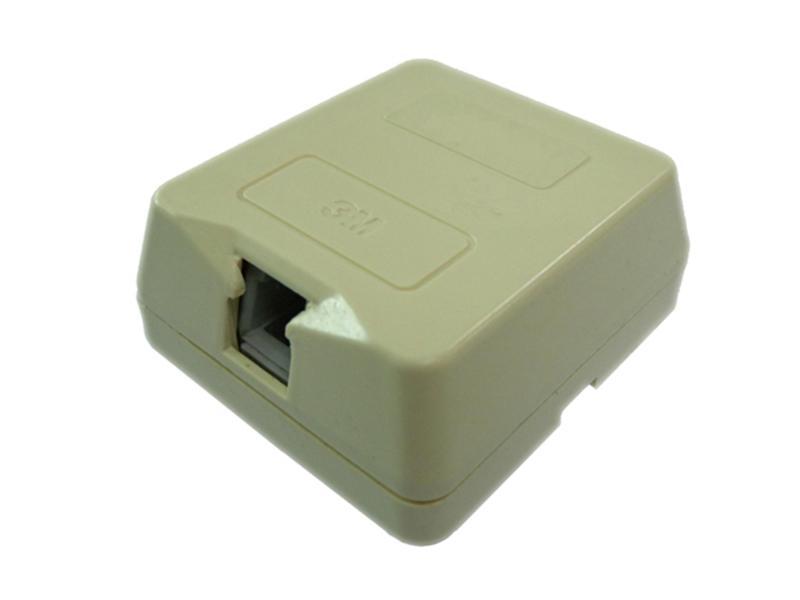

One telephone junction box with US RJ11/RJ12 sockets interfaces, which is convenient for the connection of the telephone, fax machines or other communication devices with US plugs. Connect the settled household telephone cables with the telephone adapter and attached screws and double sides adhesive tape are available for fixing the junction box on the wall.

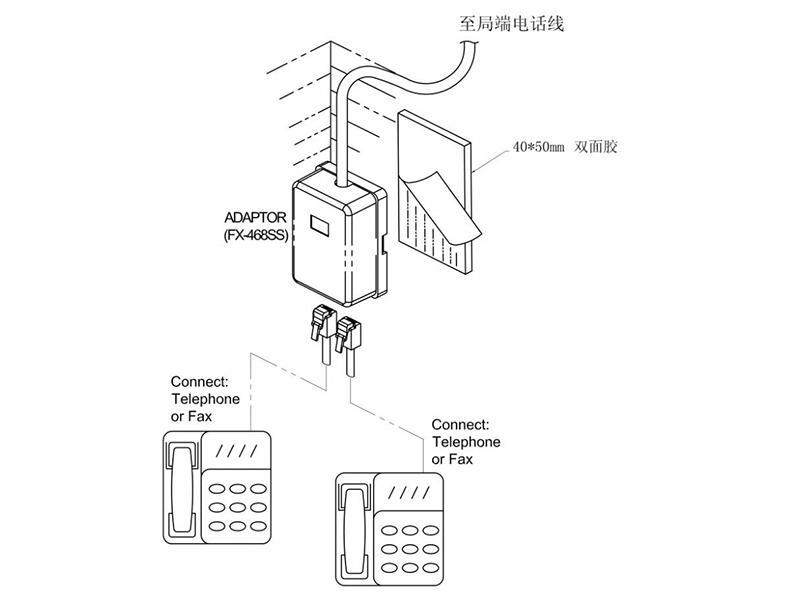

Installation
The adapter is an American junction box.
Lock the telephone wires inside the junction box and then the signal is connected.
One telephone, fax machine or telecoms equipment can be plugged into the RJ11 socket of the adapter according to the needs.
If necessary, attached screws and double sides adhesive tape are available for fixing the junction box on the wall or elsewhere.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ11/RJ12 jack: gold plated phosphor copper

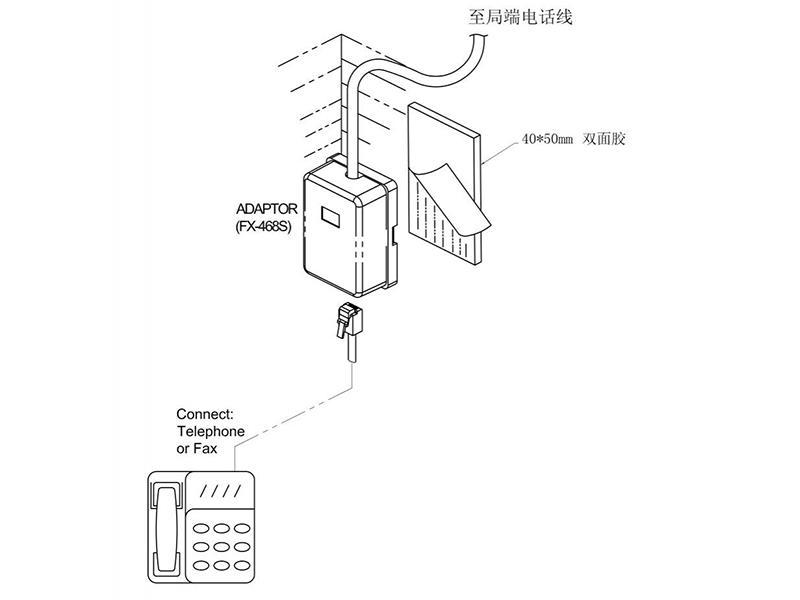

Description

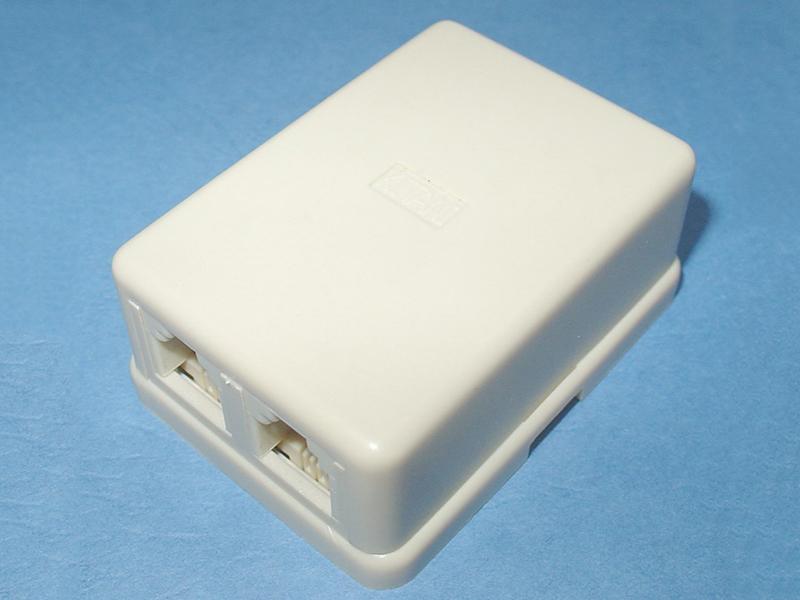

One telephone junction box with US RJ11/RJ12 interfaces, which is convenient for the connection of the telephone, fax machines or other communication devices with US RJ11/RJ12 plugs. Connect the settled household telephone cables with the telephone adapter and screws and double sides adhesive tape are available for fixing the junction box on the wall.

Installation
* The adapter is split into two sockets, and can be functioned to extend the fixed socket to elsewhere.
* Plug your adapter into the wall socket panel.
* The splitter adapter features two RJ11 female sockets, which can connect two RJ11 extension cables and satisfy the needs of connecting one or two telephones (or fax machines).

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ11/RJ12 jack: gold plated phosphor copper

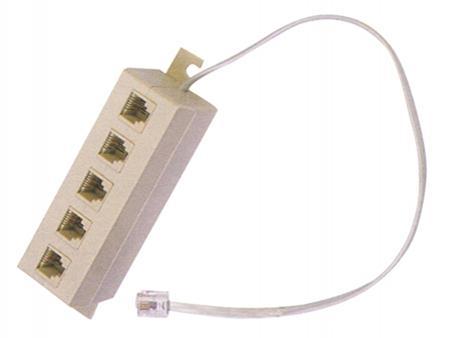

Description

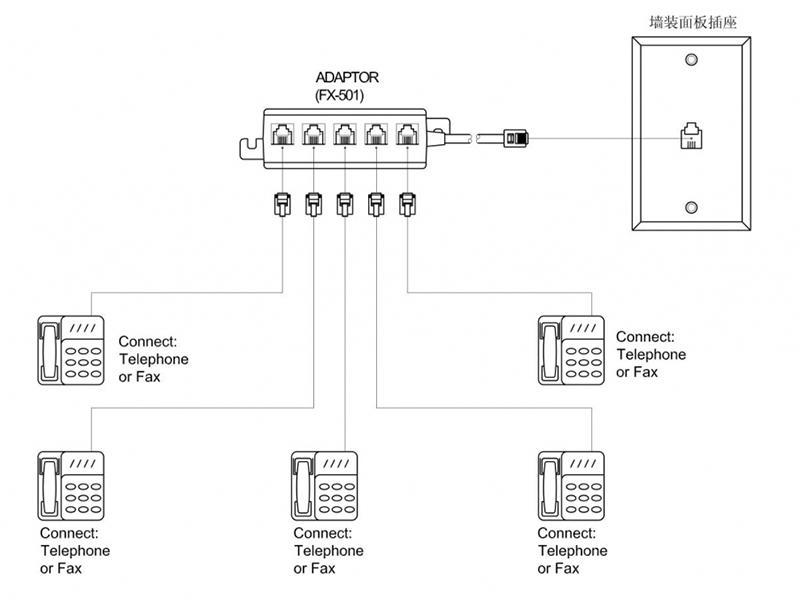

A communication splitter adapter, expanding one single American (RJ11/RJ12) socket to five same standardized sockets, which adapts to the connection of five phones, fax machines or any telecoms equipment.

Installation
* The communication adapter is split into five, i.e. expands one socket to five sockets.
* Plug your adapter into the wall socket.
* The splitter adapter features two RJ11 female sockets, which can connect five RJ11 extension cables and satisfy the needs of connecting maximum 5 telephones (or fax machines).

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Telephone wire: 26AWG/28AWG pure copper core
  RJ11/RJ12 plug: nickel plated brass
  RJ11/RJ12 socket: gold plated phosphor copper

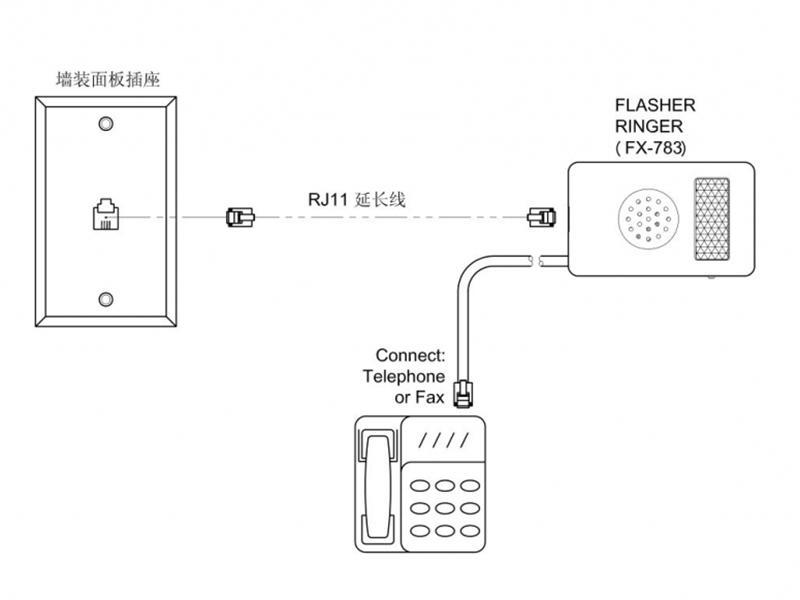

Description

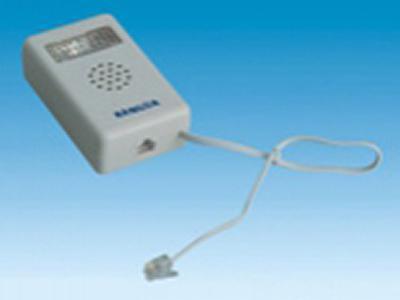

The telephone ringer amplifier is suitable for the noisy environment or hearing-impaired population. When receive the call, telephone accessory will flash and increase the bell volume. The general application method is as follows:

Installation
The telephone ringer amplifier is suitable for the noisy environment or hearing-impaired population. When receive the call, telephone accessory will flash and increase the bell volume. The general application method is as follows:
* Connect the RJ11 socket of the telephone ringer amplifier to the wall socket by RJ11 extension cord.
* Self-mounted RJ11 extension cable of the telephone flasher bell can connect the telephone or fax machine.
* Turn on the switch of the telephone ringer amplifier.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ45 socket: gold plated phosphor copper
  Telephone wire: 26AWG/28AWG pure copper core

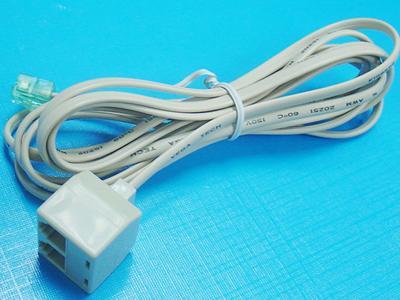

Description

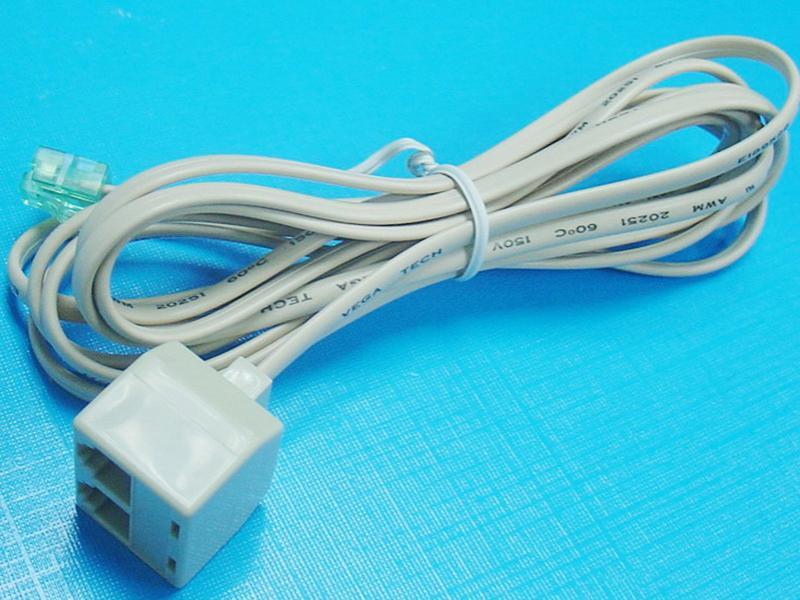

An American (RJ11/RJ12) extension cable and can extend the immobile socket to elsewhere you want.

Installation
* The telephone splitter adapter is split into two sockets, and can be functioned to extend the fixed socket to elsewhere.
* Plug your adapter into the wall socket panel.
* The splitter adapter features two RJ11 female sockets, which can satisfy the needs of connecting one or two telephones (or fax machines).

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Telephone wire: 26AWG/28AWG pure copper core
  RJ11/RJ12 socket: gold plated phosphor copper
  Female pin: gold plated phosphor copper

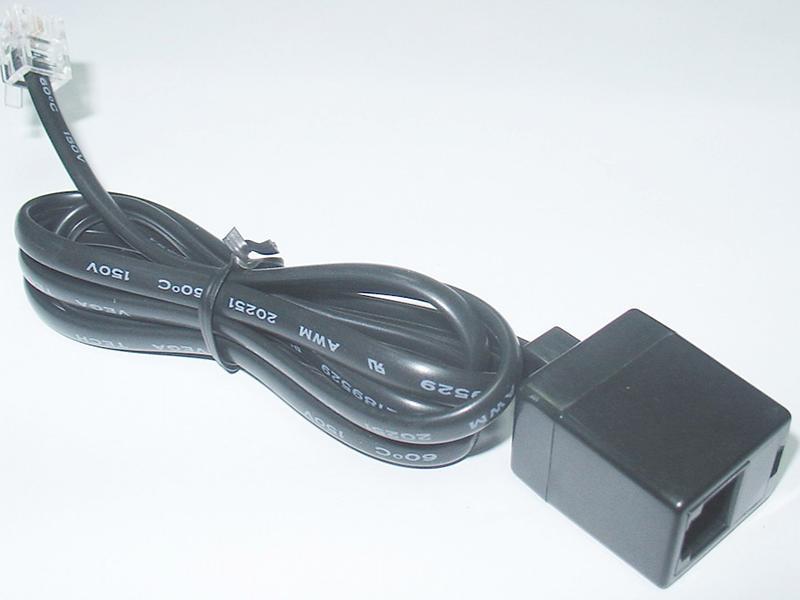

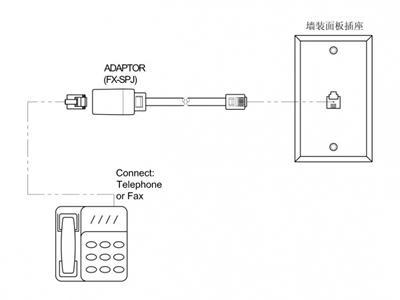

Description

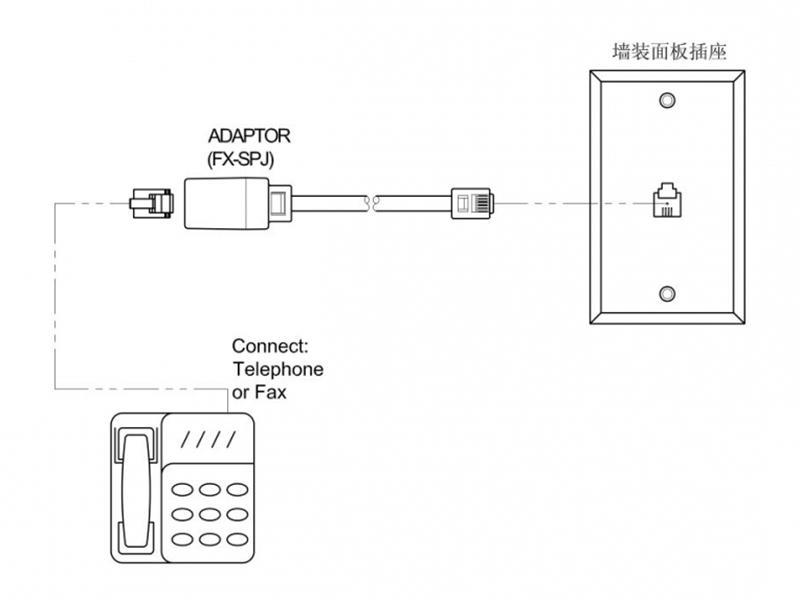

US (RJ11/RJ12) extension cable and can extend the immobile socket to elsewhere you want.

Installation
* The communication adapter can be functioned to extend the fixed socket to elsewhere.
* Plug your adapter into the wall socket.
* The splitter adapter features one RJ11 female socket, which can connect one telephone (or fax machine) or other communication device according to the needs.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Telephone wire: 26AWG/28AWG pure copper core
  RJ11/RJ12 plug: nickel plated brass
  Female pin: gold plated phosphor copper

Shown above are some of our telephone adapters made according to the socket types of the equipment. We have wall mount adapters and inline adapters according to the needs of your communication application. If you have specific needs, please let us know your complete list of specifications and we can provide custom products for your communication system.
