Telephone Adapter to French

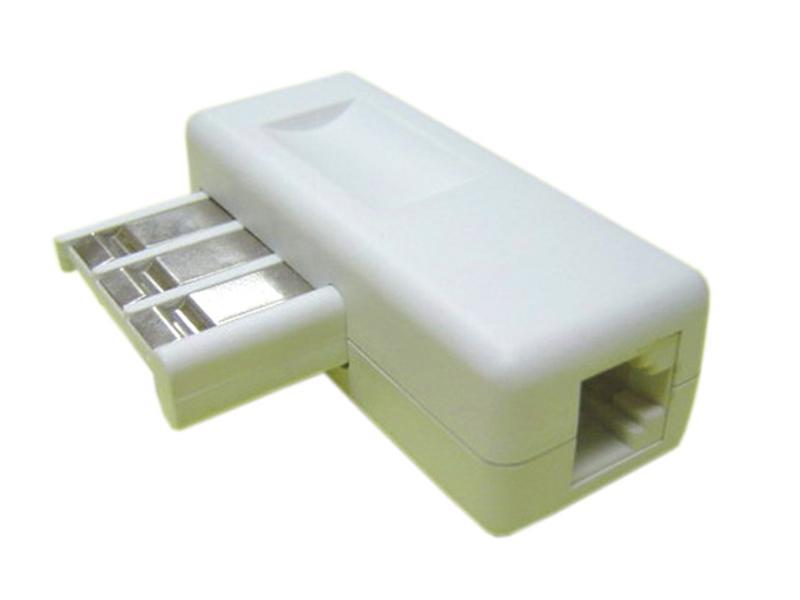

Description
The telephone adapter male to female RJ11, switching the France plug to the US (RJ11/RJ12) receptacle, adapts to the connection of phones, fax machines and other communication devices.

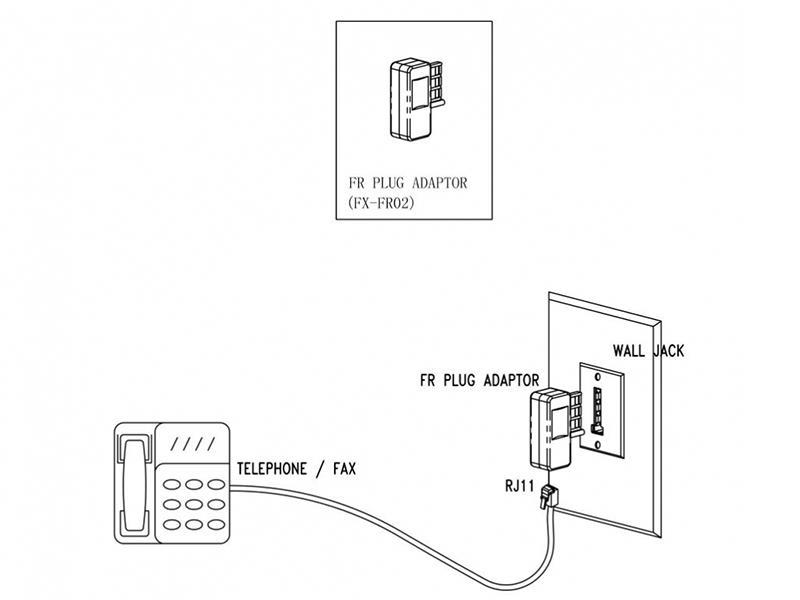

Installation
* Plug the adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, whose another end connects to a telephone or fax machine.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Pin: nickel plated brass
  RJ11/RJ12 jack: gold plated phosphor copper

Description

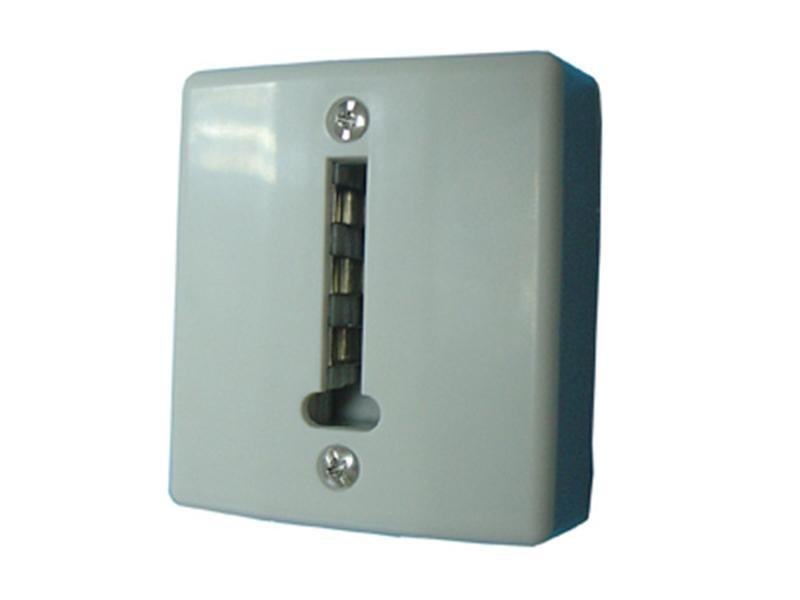

A French telephone junction box, which connects the prepared communication wires to the built-in terminals, which are connected with the metal clips of the sockets. The sockets are French standardized telephone receptacles, which is convenient for the connection of phones, fax machines and etc.

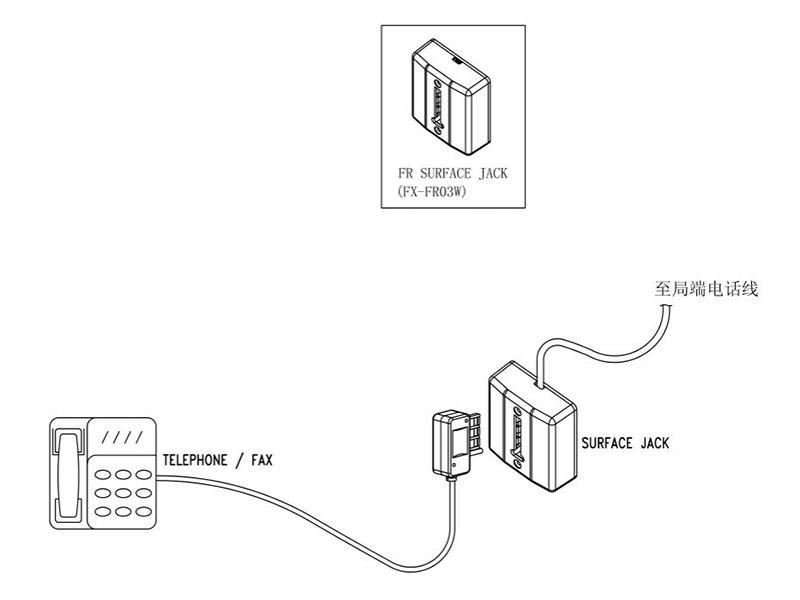

Installation
* Lock the telephone wire inside the junction box then the signal is linked.
* French plugs can be inserted to the sockets of the junction box to easily connect the telephones, fax machines and other communication equipment.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Pin: nickel plated brass
  RJ11/RJ12 jack: gold plated phosphor copper

Description

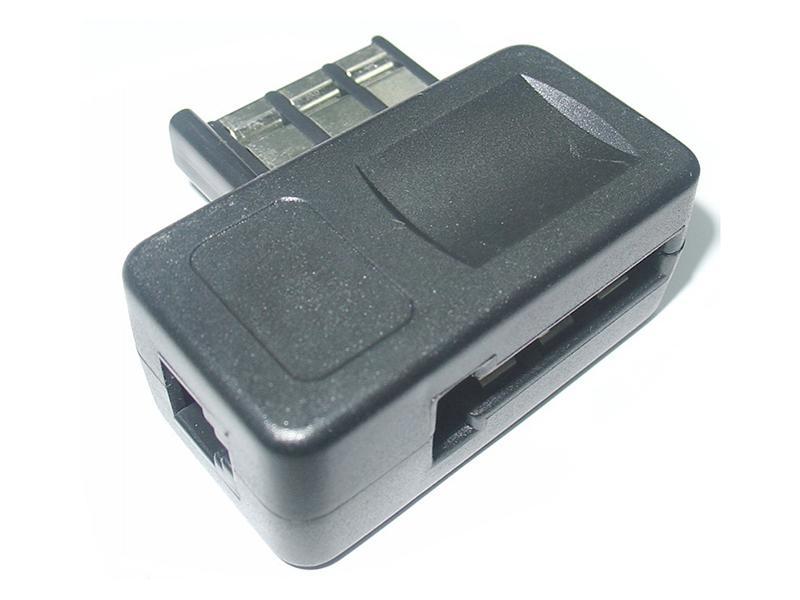

The telephone socket adapter male to female RJ11, switching the France plug to the US (RJ11/RJ12) plug, adapts to the connection of phones, fax machines and other communication devices. Meanwhile other French phone plugs can be inserted to the female end of the adapter.

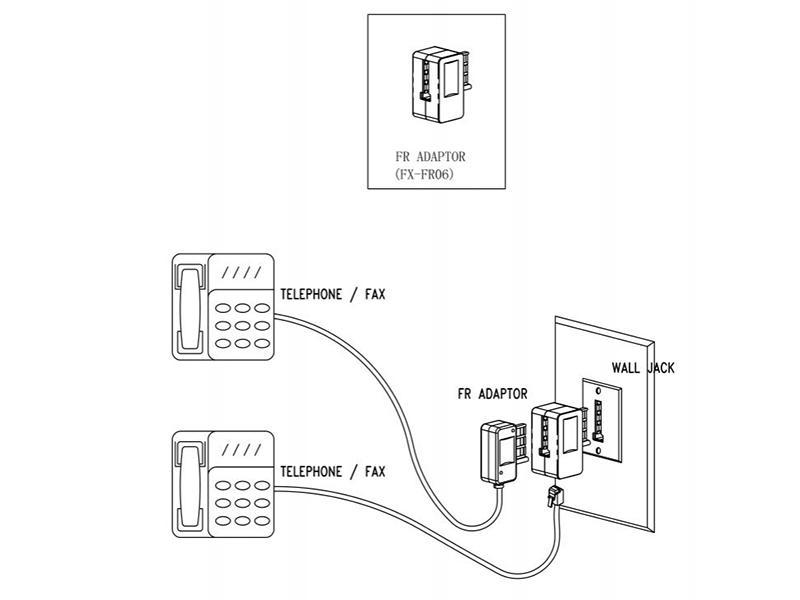

Installation
* Insert the plug of the French hermaphroditic adapter into the wall socket panel
* French extension cord can be plugged in the native female jack of the hermaphroditic adapter, which can connect a telephone or fax machine.
* RJ11 extension cord can be plugged in the RJ11 female jack of the French hermaphroditic adapter, which can connect another telephone or fax machine.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Pin: nickel plated brass
  RJ11/RJ12 plug: gold plated phosphor copper

Description

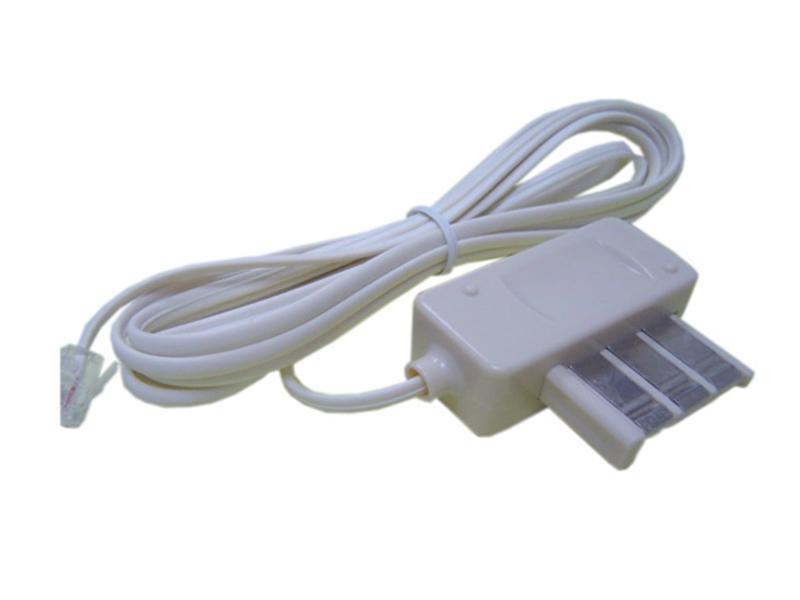

The telephone jack adapter male to female RJ11 switches the France plug to the US (RJ11/RJ12) plug, which can directly connect phones, fax machines and other communication devices. In the meantime, other French phone plugs can be inserted to the female end of the adapter.

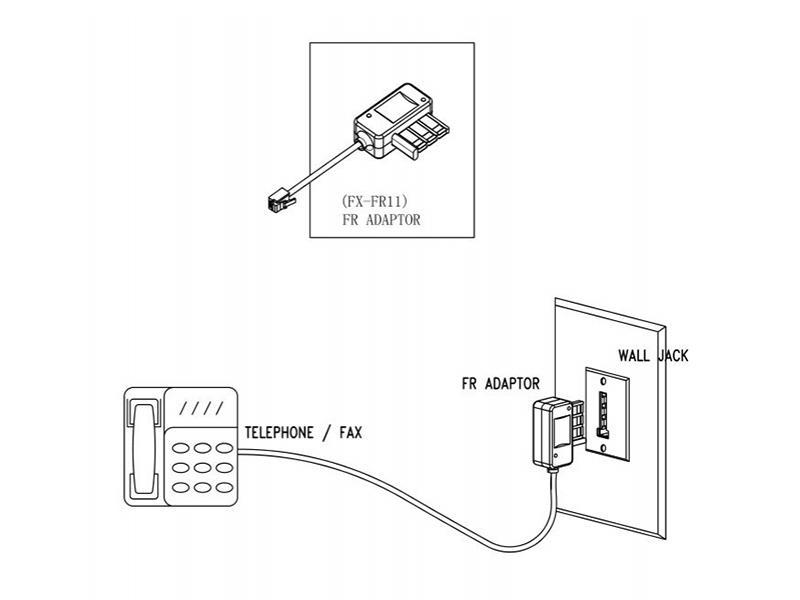

Installation
* Plug the adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, whose another end connects to a telephone or fax machine.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Telephone wire: 26AWG/28AWG pure copper core
  Pin: nickel plated brass
  RJ11/RJ12 plug: gold plated phosphor copper

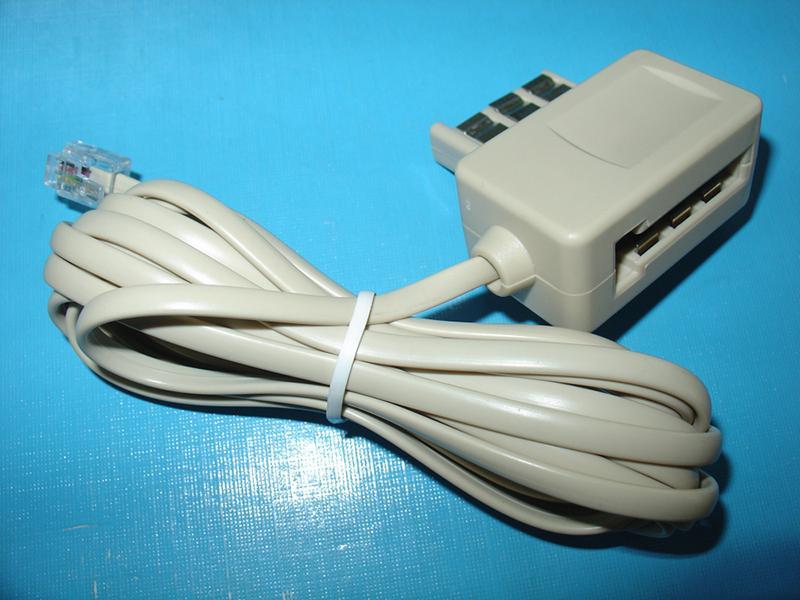

Description
The telephone socket adapter male to female RJ11 switches the France plug to the US (RJ11/RJ12) plug, which can directly connect phones, fax machines and other communication devices. In the meantime, other French phone plugs can be inserted to the female end of the adapter.

Installation

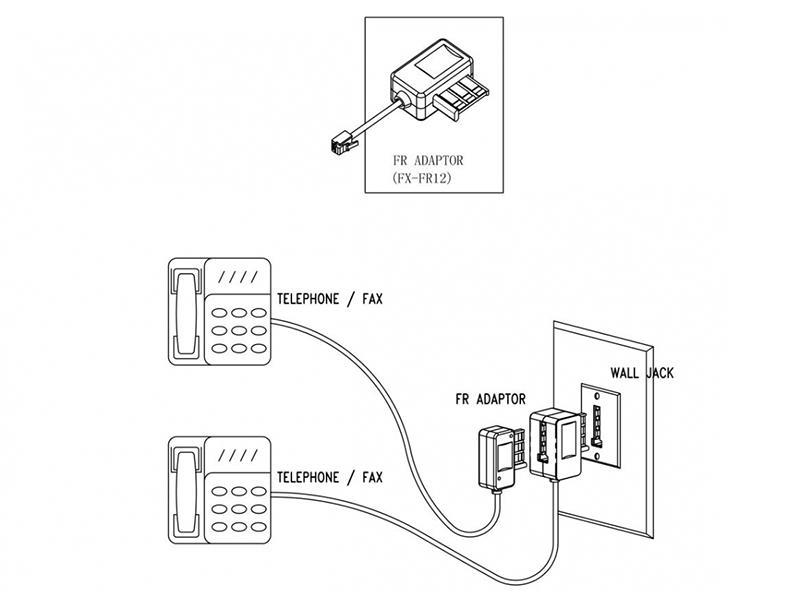

* Insert the plug of your French hermaphroditic adapter into the wall socket panel.
* RJ11 extension cord can be plugged in the RJ11 female jack of the hermaphroditic adapter, which can connect a telephone or fax machine.
* French extension cord can be plugged in the native female jack of the hermaphroditic adapter, which can connect another telephone or fax machine.
* Two telephones or fax machines can be used at the same time.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Telephone wire: 26AWG/28AWG pure copper core
  Pin: nickel plated brass
  RJ11/RJ12 plug: gold plated phosphor copper

Shown above are some of our telephone adapters made according to the socket types of the equipment. We have wall mount adapters and inline adapters according to the needs of your communication application. If you have specific needs, please let us know your complete list of specifications and we can provide custom products for your communication system.
