Telephone Adapter to Finland

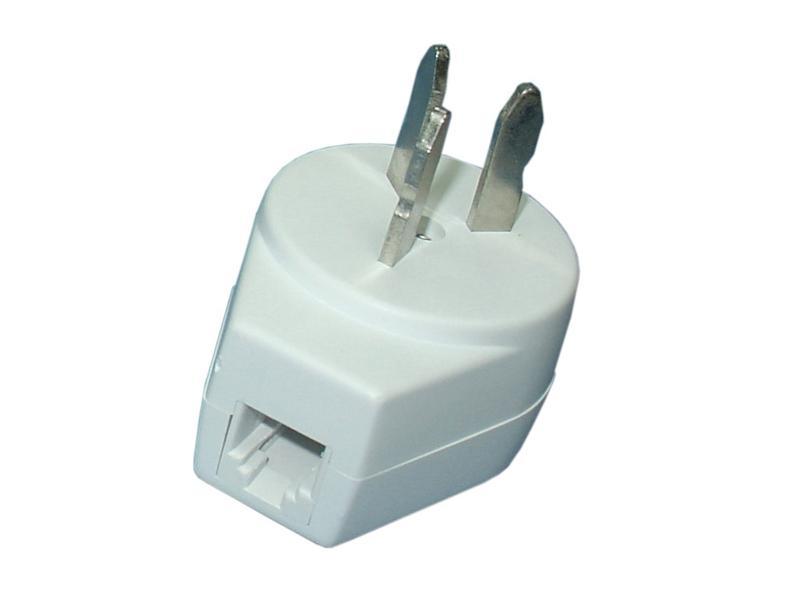

FX-FN02 Telephone Adapter

Description
The ethernet network connector adapter, switching the Finland plug to the US (RJ11/RJ12) receptacle, adapts to the connection of phones, fax machines and other telecoms equipment.

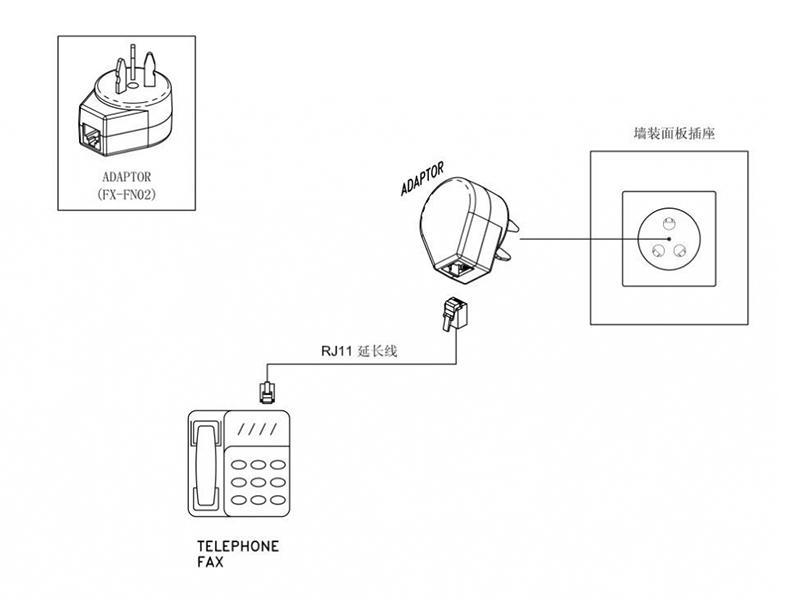

Installation
* Plug the adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack socket of the adapter, whose another end connects to a telephone or fax machine.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Pin: nickel plated brass
      RJ11/RJ12 jack: gold plated phosphor copper

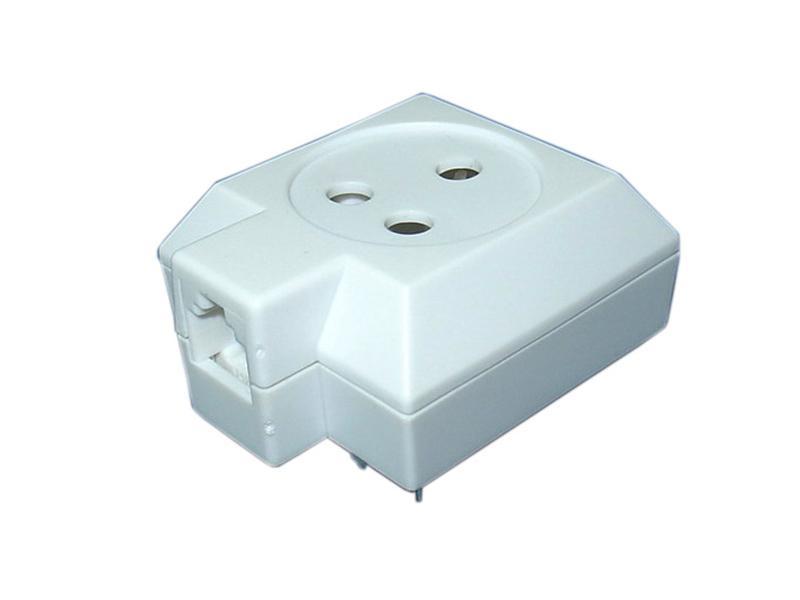

FX-FN06 Telephone Jack Adapter

Description
The telephone socket adapter, switching the Finland plug to the US (RJ11/RJ12) socket, adapts to the connection of phones, fax machines and other communication devices. Meanwhile another Finland phone plug can be inserted to the female end of the adapter.

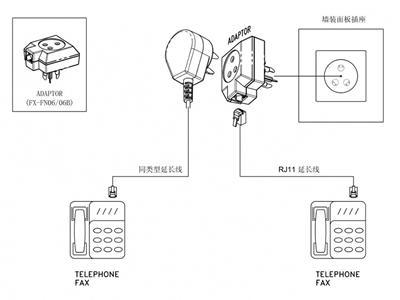

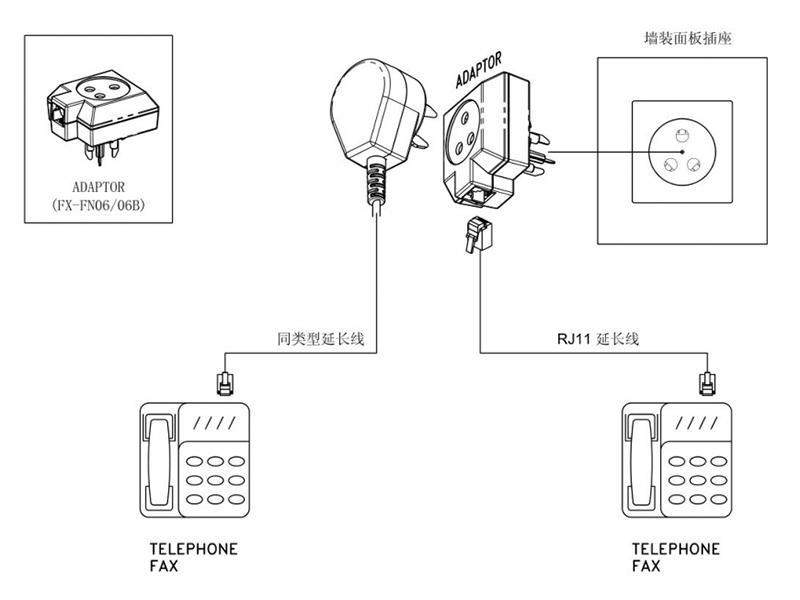

Installation
* Insert the plug of the French hermaphroditic adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack of the French hermaphroditic adapter, which can connect a telephone or fax machine.
* French extension cord can be plugged in the native female jack of the hermaphroditic adapter, which can connect another telephone or fax machine.
* Two phones or fax machines can be used at the same time to adjust to the different interfaces.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Pin and female pin: nickel plated brass
      RJ11/RJ12 jack: gold plated phosphor copper

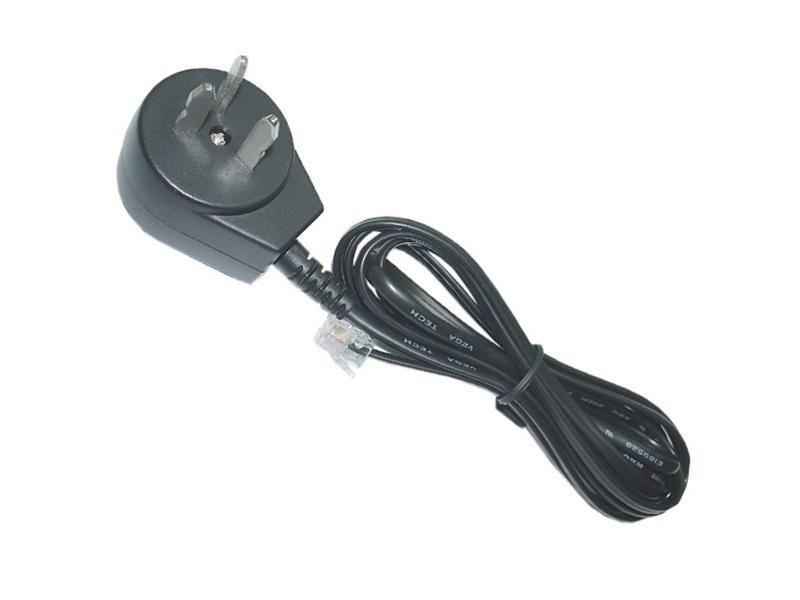

FX-FN11 Telephone Jack Adapter

Description
The phone jack adapter, switching the Finland plug to the US (RJ11/RJ12) male plug, which can directly connect phones, fax machines and other communication devices.

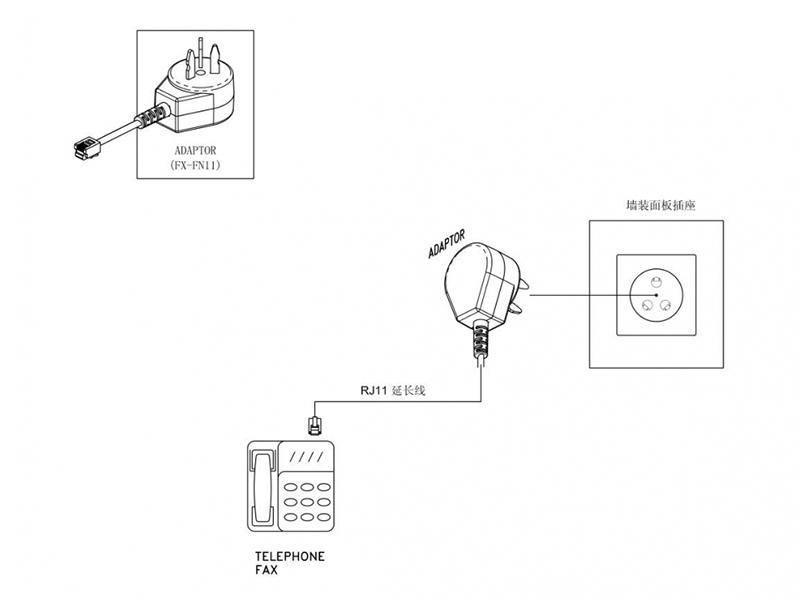

Installation
* Plug the adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack socket of the adapter, whose another end connects to a telephone or fax machine.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Telephone wire: 26AWG/28AWG pure copper core
      Pin: nickel plated brass
      RJ11/RJ12 socket: gold plated phosphor copper

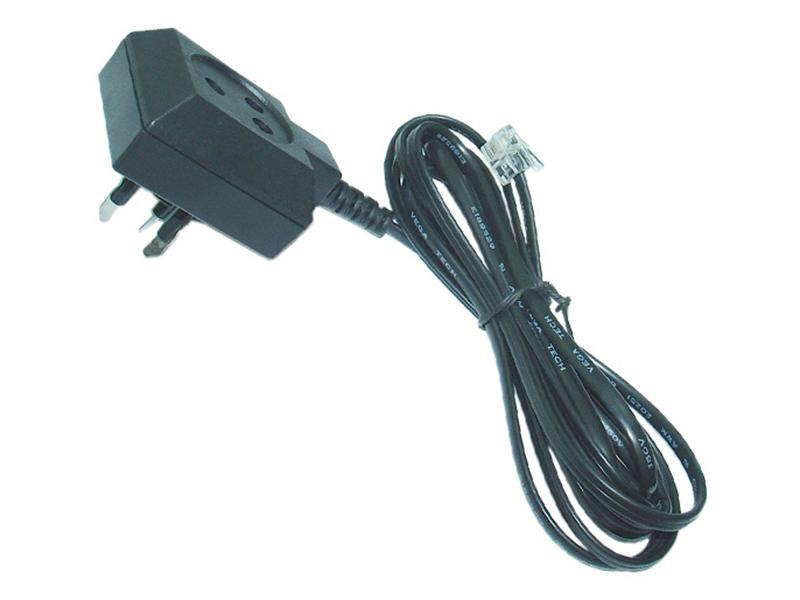

FX-FN12 Telephone Jack Adapter

Description
The telephone splitter adapter, switching the Finland plug to the US (RJ11/RJ12) male plug, which can directly connect phones, fax machines and data terminal equipment. In the meantime, another Finland phone plug can be inserted to the female socket of the adapter.

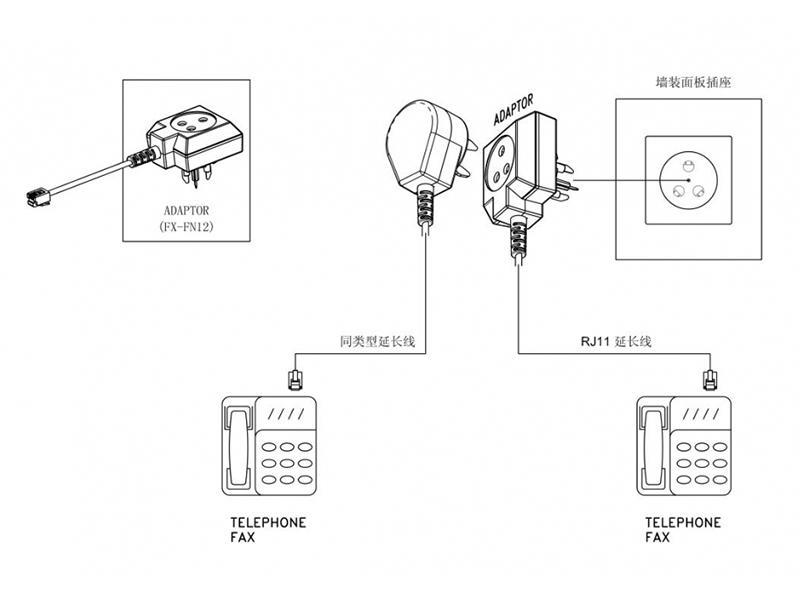

Installation
* Insert the plug of your French hermaphroditic adapter into the wall socket panel.
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, whose another end can connect a telephone or fax machine.
* Corresponding extension cord can be plugged in the native female jack socket of the adapter, which can connect another telephone or fax machine.
* Two telephones or fax machines can be used at the same time.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Telephone wire: 26AWG/28AWG pure copper core
      Pin and female pin: nickel plated brass
      RJ11/RJ12 socket: gold plated phosphor copper

Shown above are some of our telephone adapters made according to the socket types of the equipment. We have wall mount adapters and inline adapters according to the needs of your communication application. If you have specific needs, please let us know your complete list of specifications and we can provide custom products for your communication system.
