Telephone Adapter to Denmark

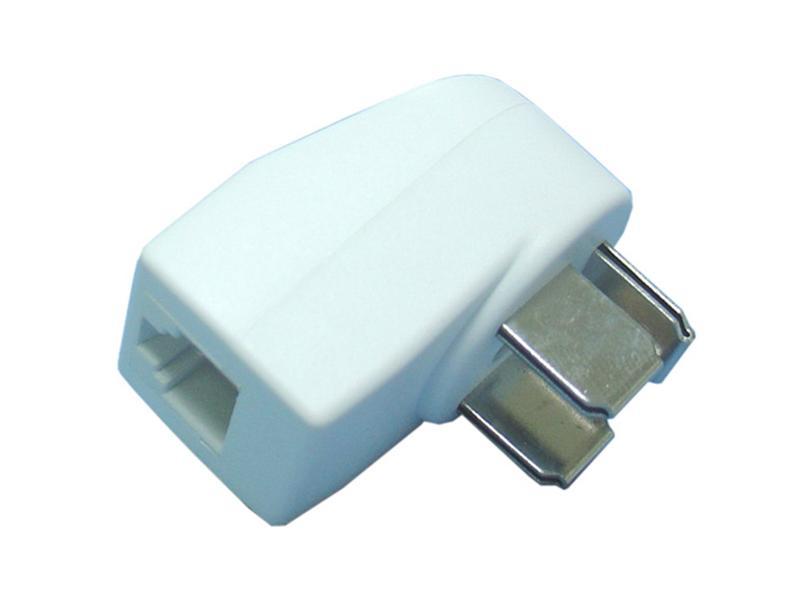

FX-DM02 Telephone Adapter

Description
This is a telephone splitter adapter that switches Danish plugs to the US (RJ11/RJ12) jack, hence it adapts to the connection of communication devices, such as telephone, fax machines, etc.

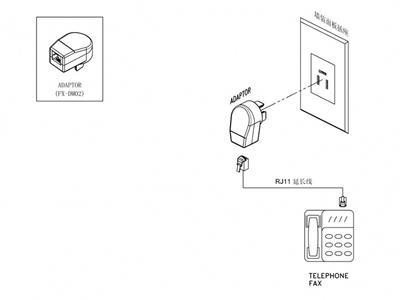

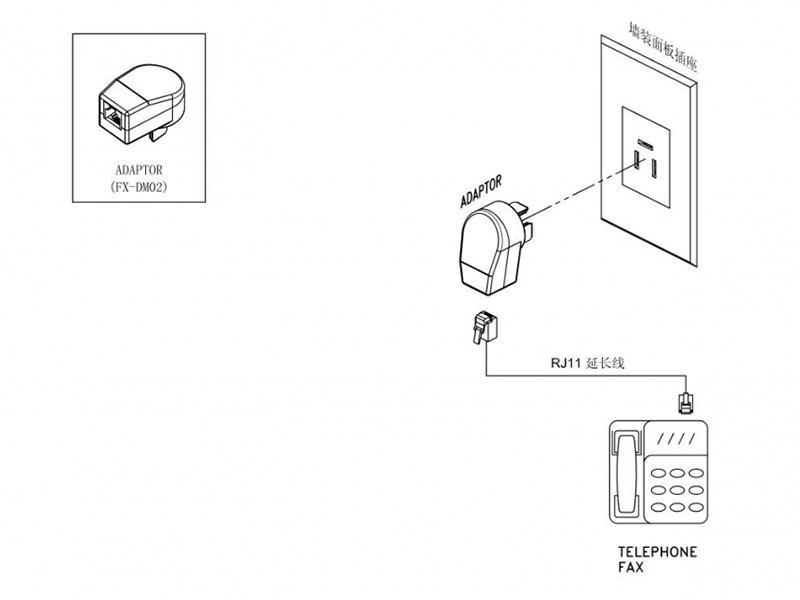

Installation
* Plug the adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, which can connect to a telephone or fax machine.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Pin: nickel plated brass
      RJ11/RJ12 socket: gold plated phosphor copper

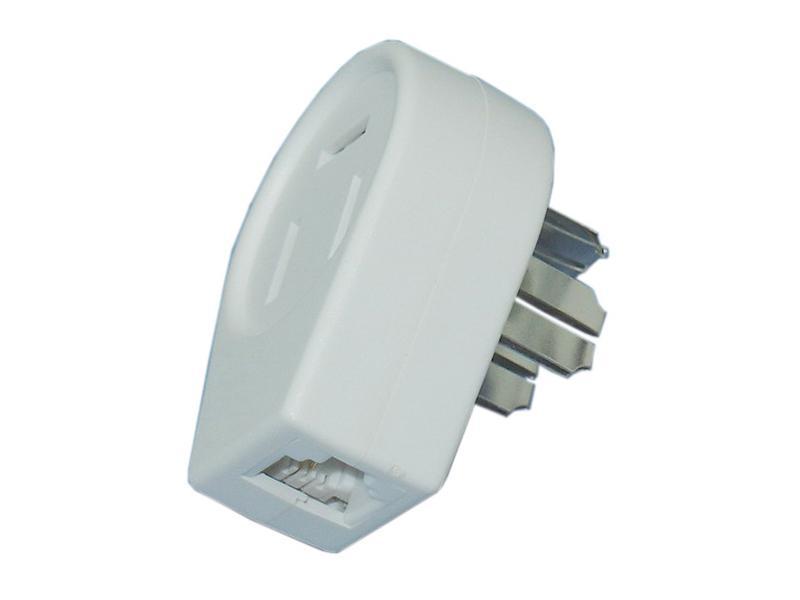

FX-DM06 Telephone Adapter

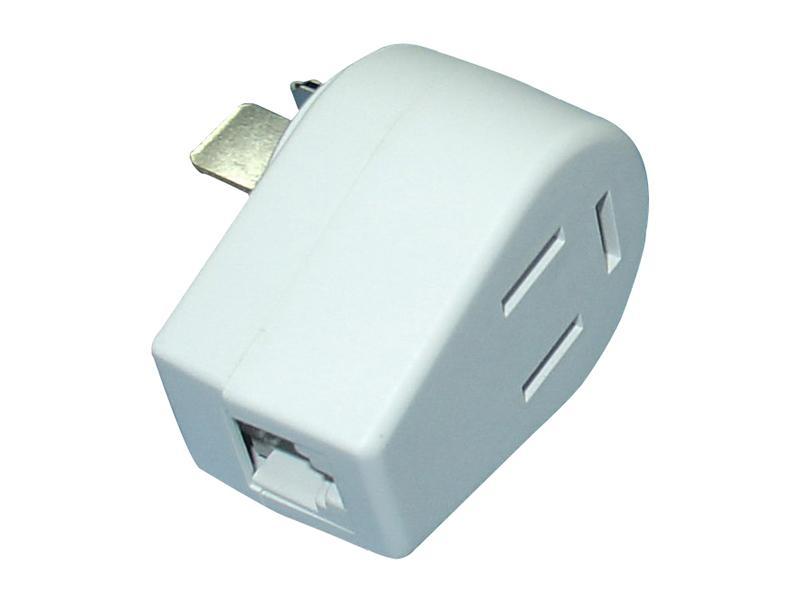

FX-DM06B Telephone Socket Adapter

Description
A telephone cord coupler, switching the Denmark plug to the US (RJ11/RJ12) jack, adapts to the connection of telecoms equipment, such as telephone, fax machines, etc. Meanwhile the female end can connect to another Denmark telephone plug.

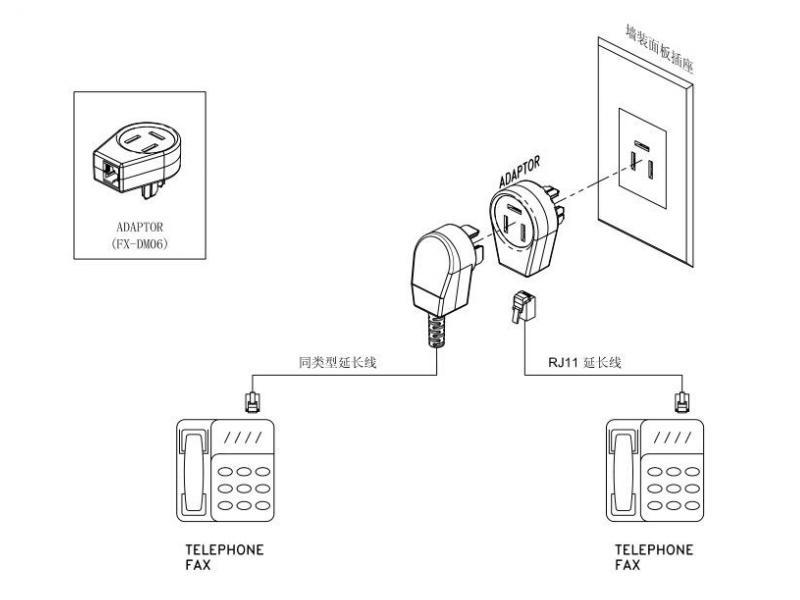

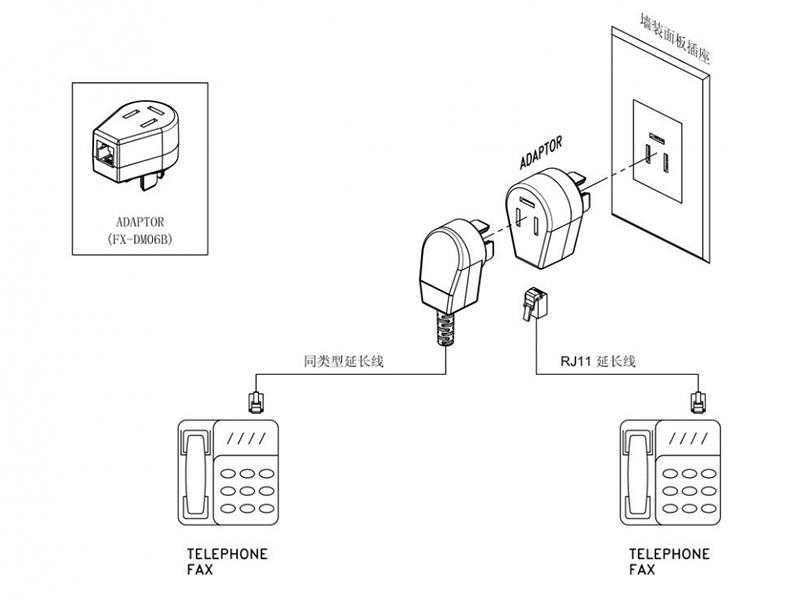

Installation
* Insert the plug of the adapter into the wall socket panel.
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter and connected to a telephone or fax machine.
* Denmark extension cord can be plugged in the Denmark female jack of the adapter and another end can connect another telephone or fax machine.
* Two telephones or fax machines can be used at the same time to adapt to different sockets.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Pin and female pin: nickel plated brass
      RJ11/RJ12 socket: gold plated phosphor copper

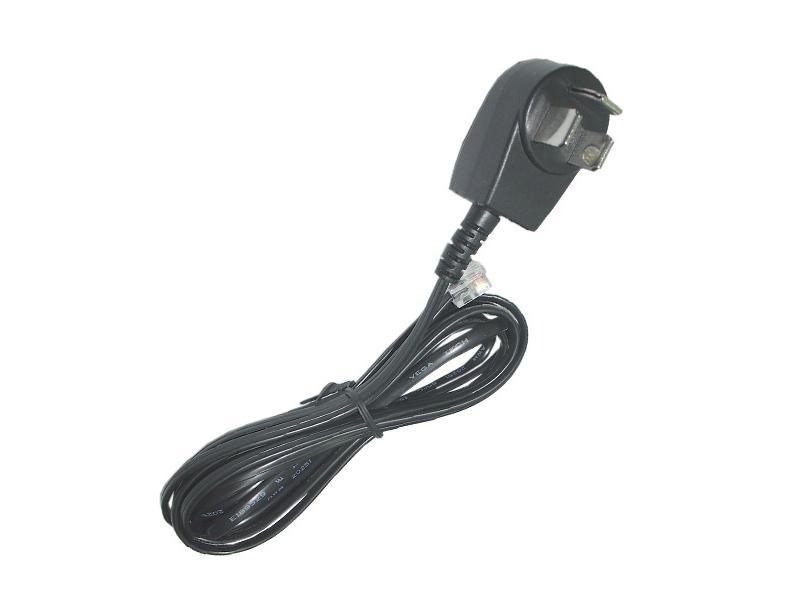

FX-DM11 Telephone Socket Adapter

Description
A telephone socket adapter, adapting the Denmark plug to fit US (RJ11/RJ12) plugs, which can directly connect communication equipment, such as telephones, fax machines, etc.

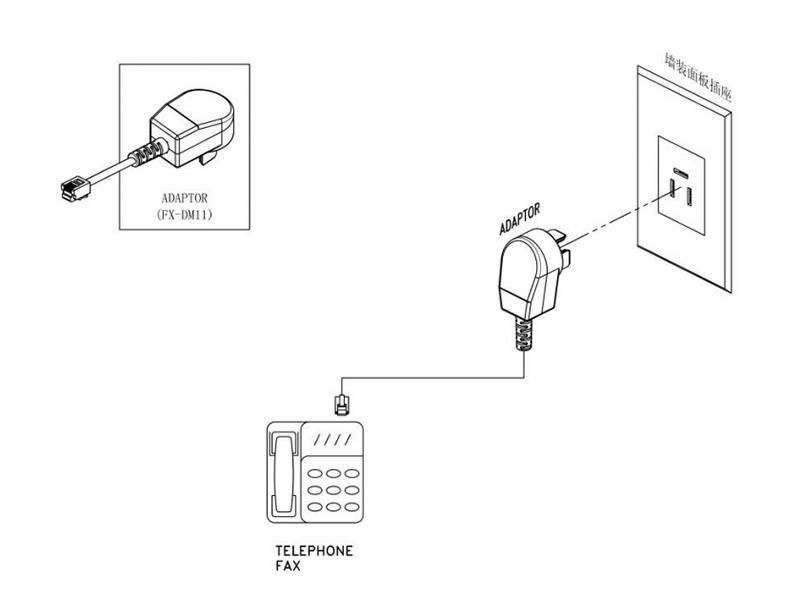

Installation
* Plug the adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, whose another end connects to a telephone or fax machine.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Telephone wire: 26AWG/28AWG pure copper core
      Pin: nickel plated brass
      RJ11/RJ12 socket: gold plated phosphor copper

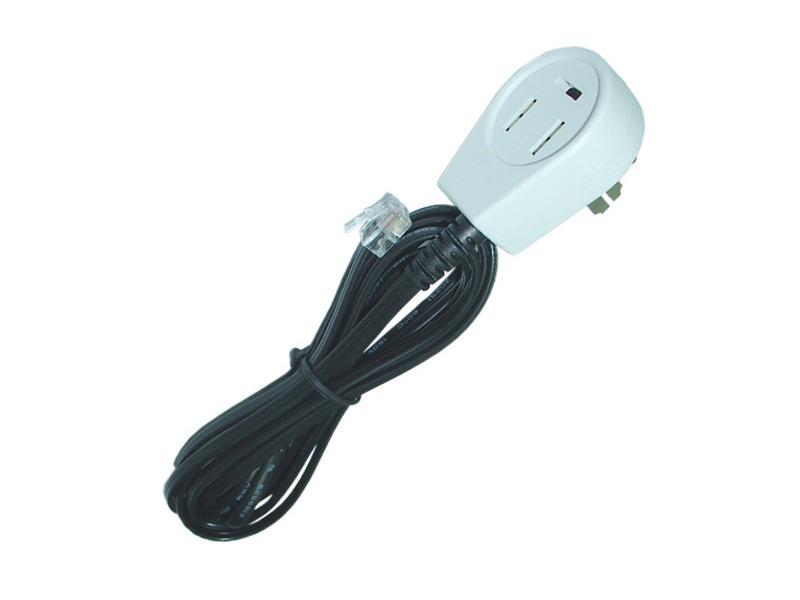

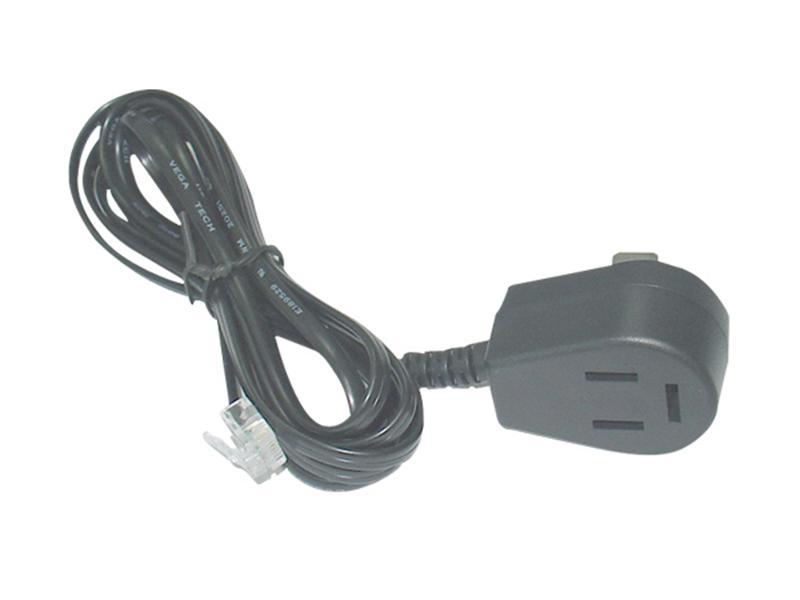

FX-DM12 Telephone Socket Adapter
FX-DM12B Telephone Socket Adapter

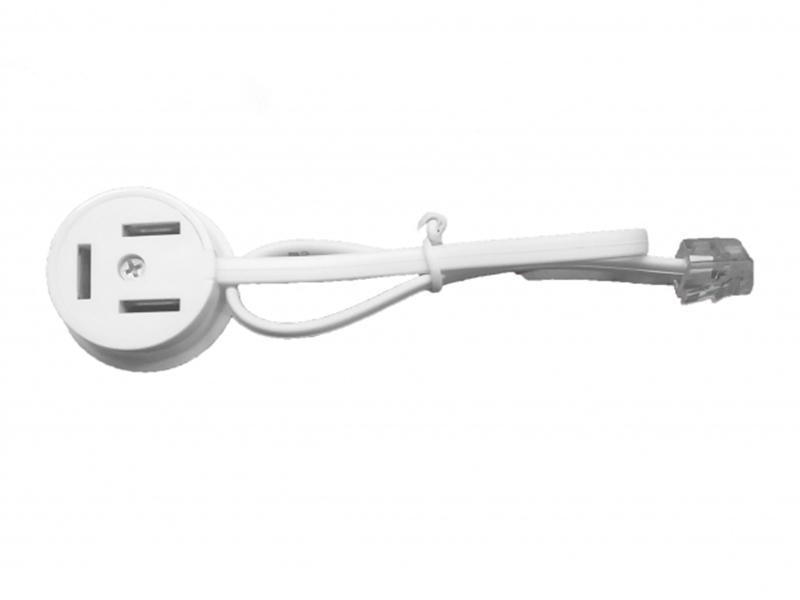

FX-DM12R Telephone Socket Adapter

Description
A phone splitter adapter, switching the Denmark plug to the US (RJ11/RJ12) plug, which directly connects to communication equipment, such as telephone, fax machines, etc. Meanwhile the female end can connect to another Denmark telephone plug.

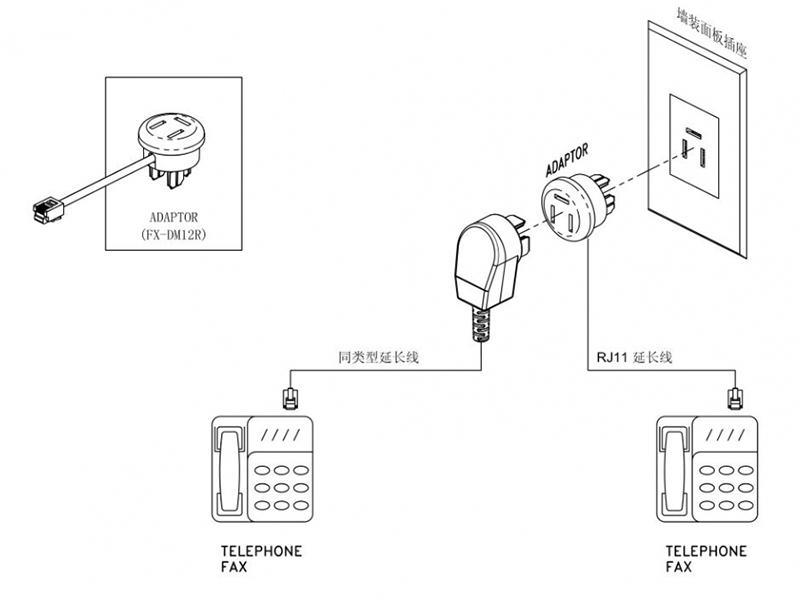

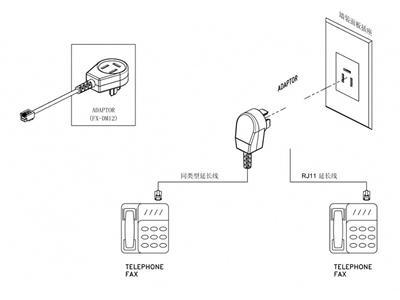

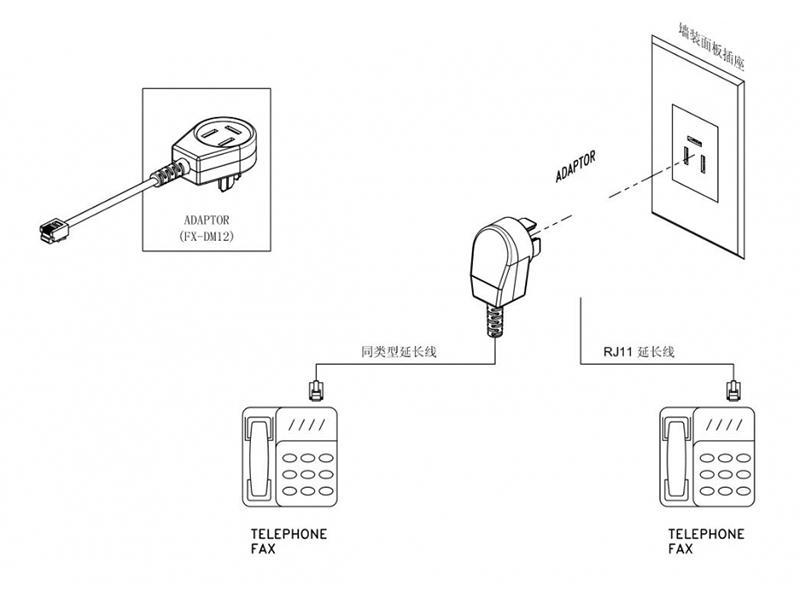

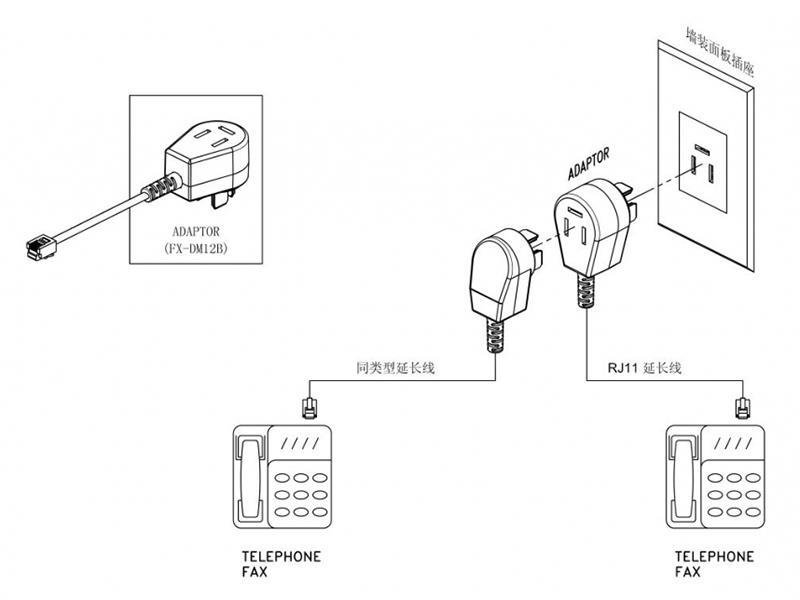

Installation
* Insert the plug of the adapter into the wall socket panel.
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, whose another end can connect to a telephone or fax machine.
* Denmark extension cord can be plugged in the Denmark female jack of the adapter and another end can connect another telephone or fax machine.
* Two telephones or fax machines can be used at the same time to adapt to different sockets.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Telephone wire: 26AWG/28AWG pure copper core
      Pin: nickel plated brass
      RJ11/RJ12 socket: gold plated phosphor copper

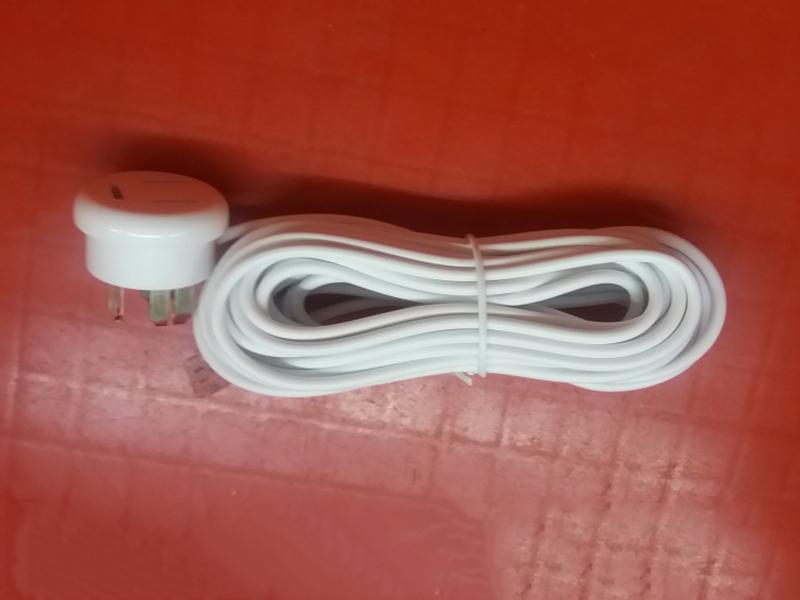

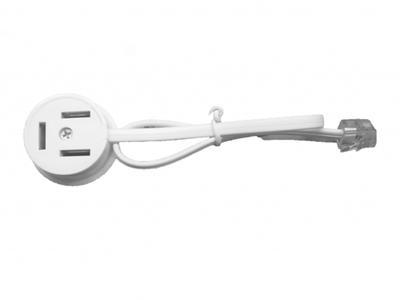

FX-DM13 Telephone Jack Adapter

Description
A phone splitter adapter, switching the US (RJ11/RJ12) socket to the Denmark socket, into which the Denmark extension cord can be directly plugged.

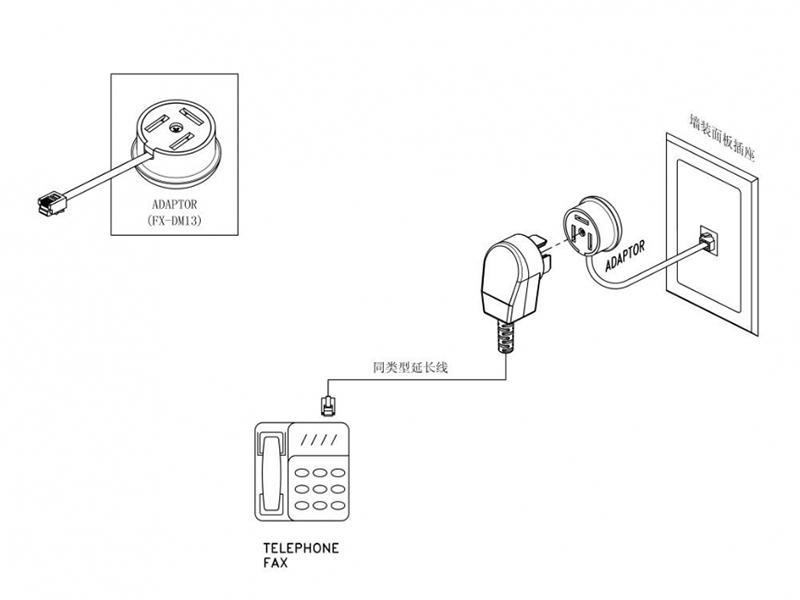

Installation
* Insert the RJ11 plug of adapter into the USA wall socket panel.
* Same-type extension cord can be plugged in the RJ11 female jack of the adapter, whose another end connects to a telephone or fax machine.

Parameters
  • Performance parameter
      Mechanical durability: 500 minimum insert and extract
      Contact resistance: <0.5Ω
      Insulation resistance: >100MΩ
      Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%～96%
  • Materials
      Case Shell: ABS
      Telephone wire: 26AWG/28AWG pure copper core
      Female pin: nickel plated brass
      RJ11/RJ12 socket: gold plated phosphor copper

Shown above are some of our telephone adapters made according to the socket types of the equipment. We have wall mount adapters and inline adapters according to the needs of your communication application. If you have specific needs, please let us know your complete list of specifications and we can provide custom products for your communication system.
