Telephone Adapter to Italian

Description

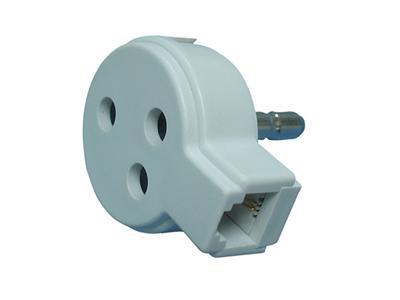

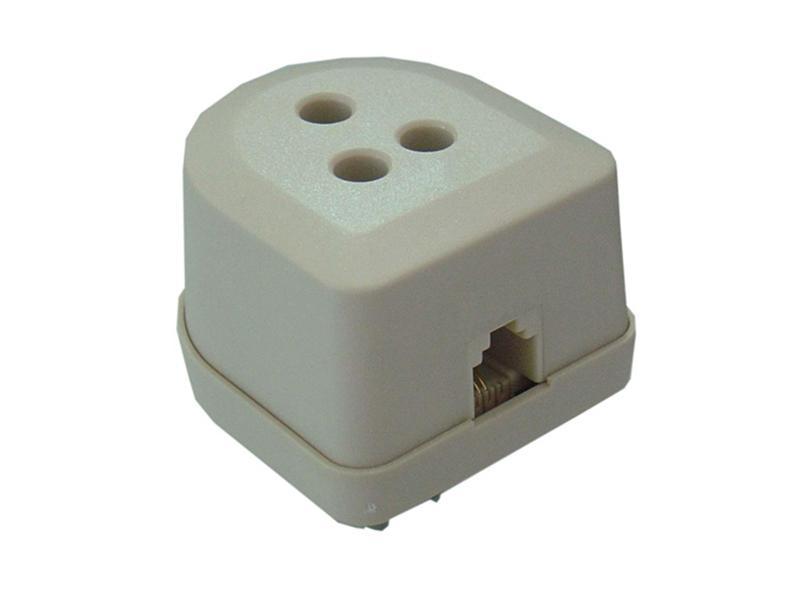

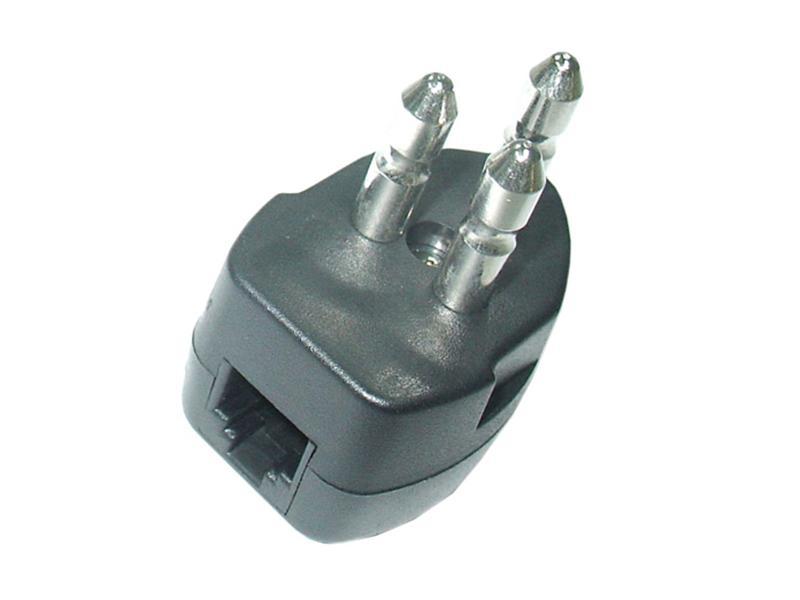

The ethernet splitter, switching the Italian plug to the US (RJ11/RJ12) socket, which adapts to the connection of phones, fax machines and other communication devices.

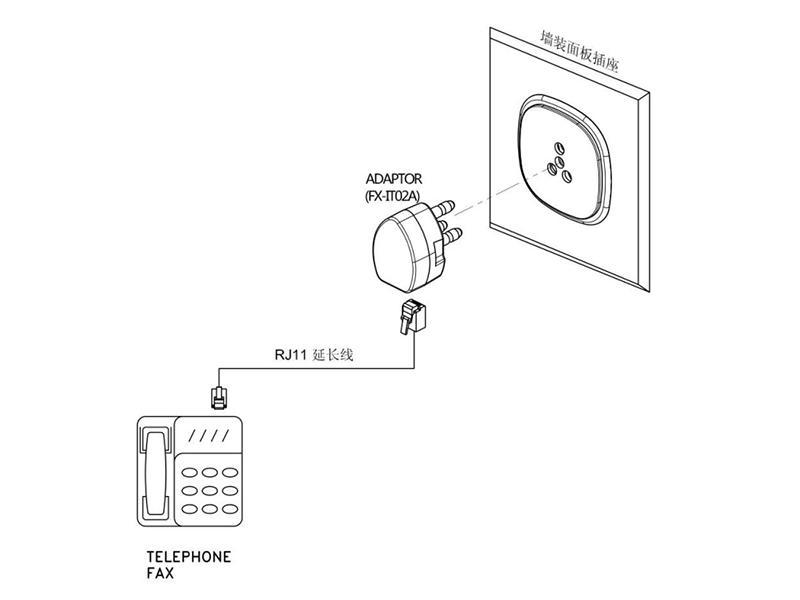

Installation

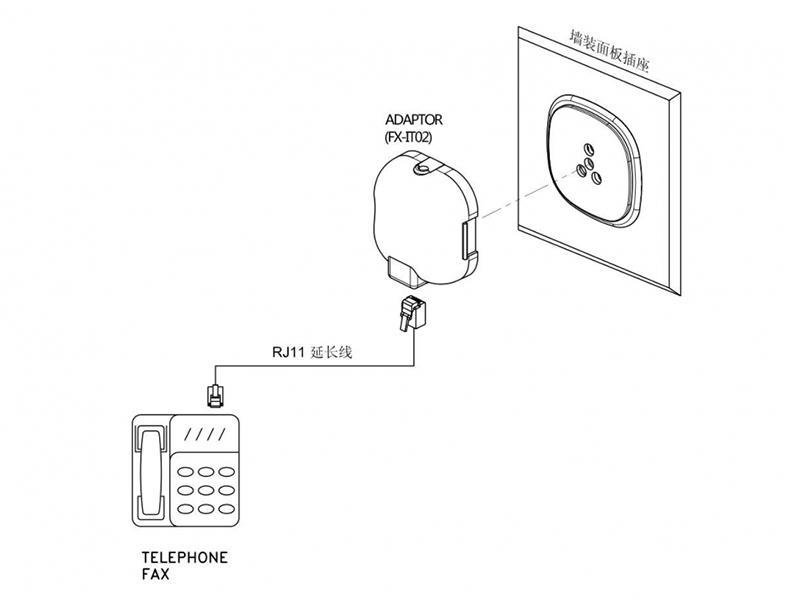

* Plug the adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, whose another end connects to a telephone or fax machine.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Pin: nickel plated brass
  RJ11/RJ12 jack: gold plated phosphor copper

Description

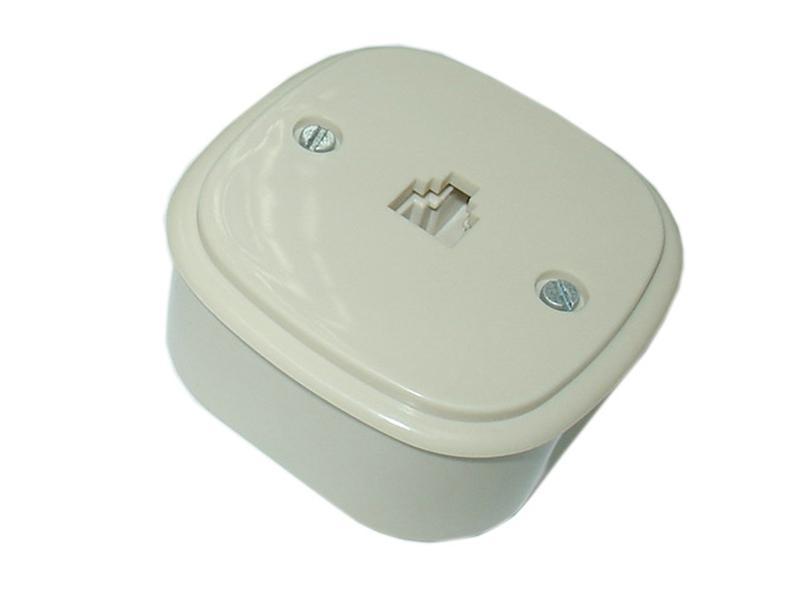

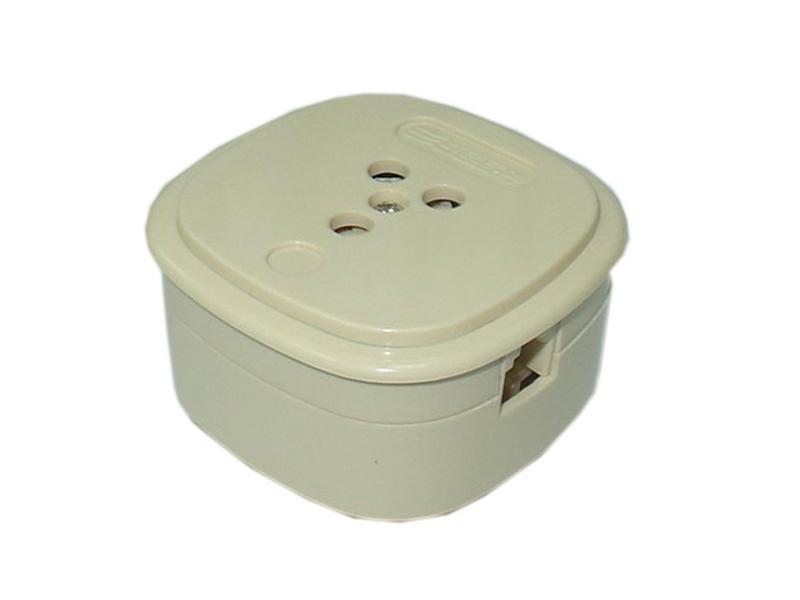

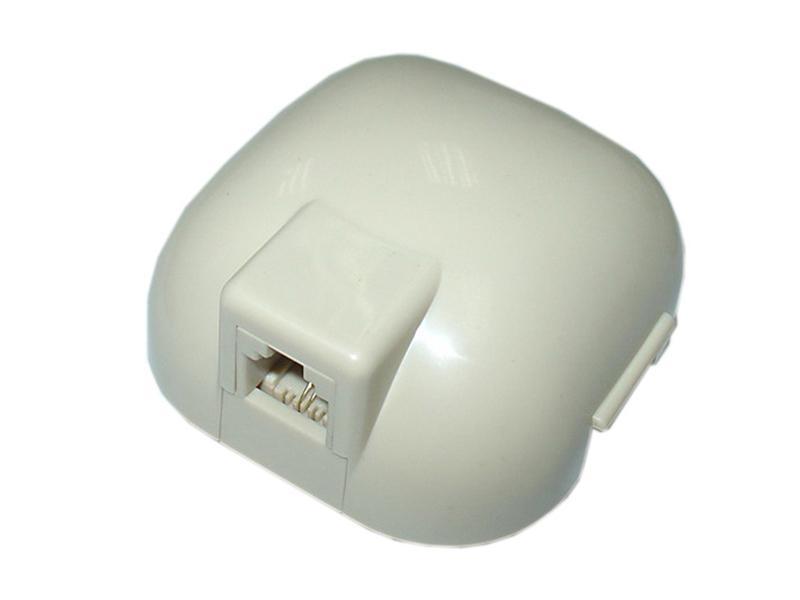

An Italian size standardized telephone junction box, connecting to the household communication wires, can be transformed to telephone splitter adapter with US (RJ11/RJ12) jack, which are convenient for the connection of communication terminal devices.

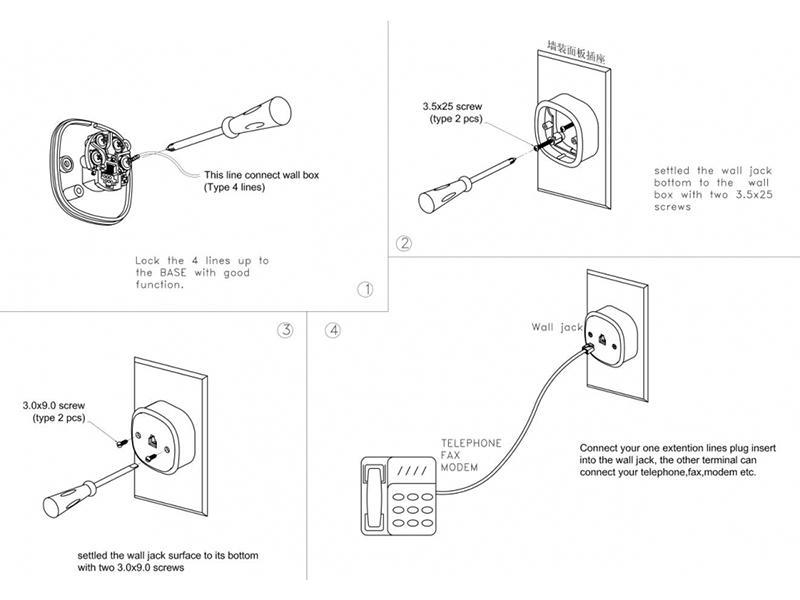

Installation

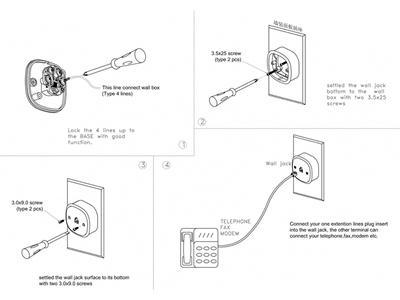

* Lock the 4 lines up to the BASE with good function.
* Settle the wall jack bottom to the wall box with two 3.5x25 screws
* Settle the wall jack surface to its bottom with two 3.0x9.0 screws
* Connect your one extension line plug into the wall jack, the other terminal can connect your telephone, fax, modem, etc.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Terminal: nickel plated brass
  RJ11/RJ12 jack: gold plated phosphor copper

Description

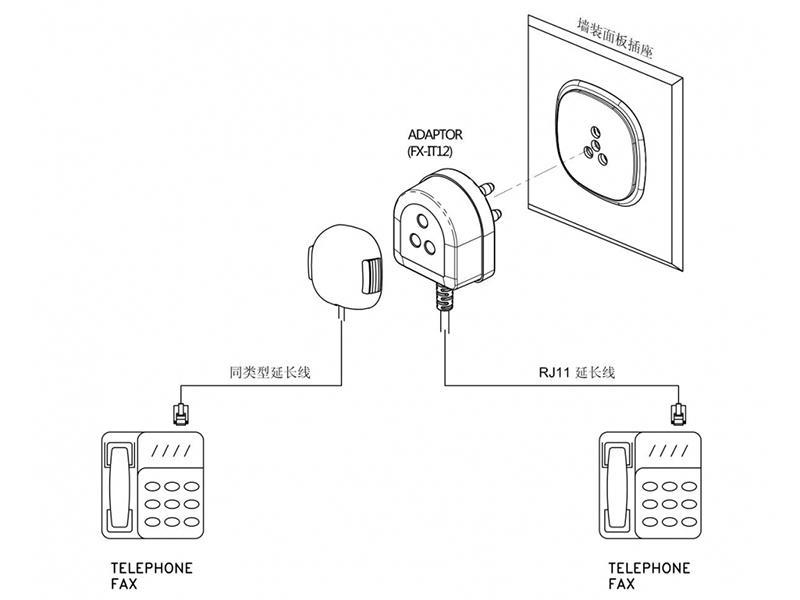

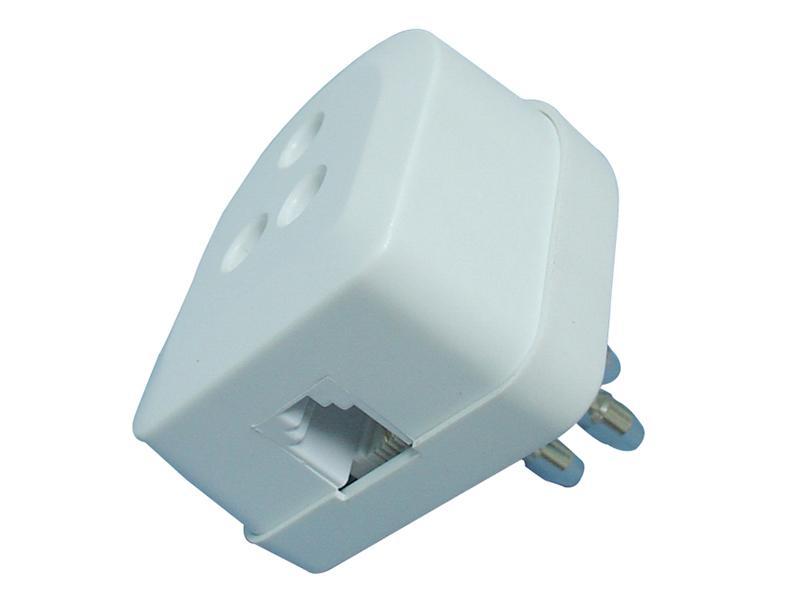

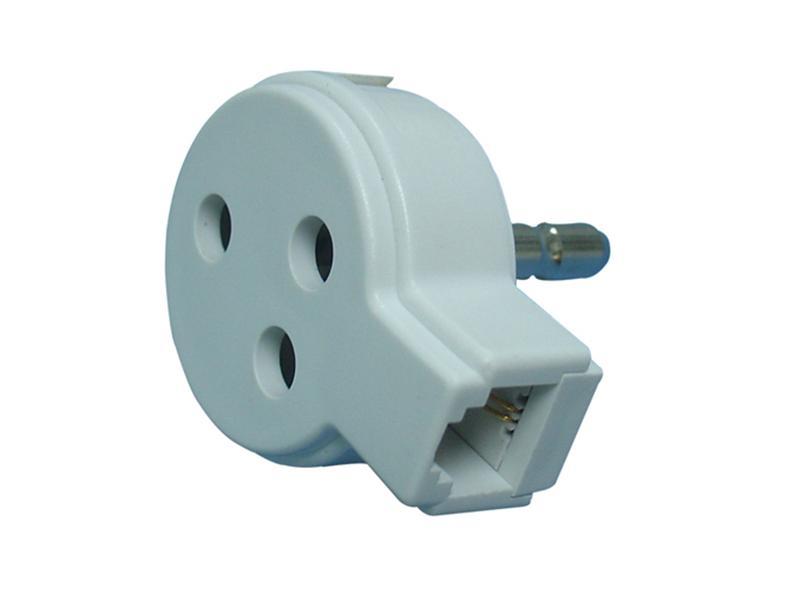

The phone splitter adapter, switching the Italian plug to the US (RJ11/RJ12) jack, hence adapts to the connection of phones, fax machines and other communication devices. Meanwhile another Italian phone plug can be connected to the female socket of the adapter.

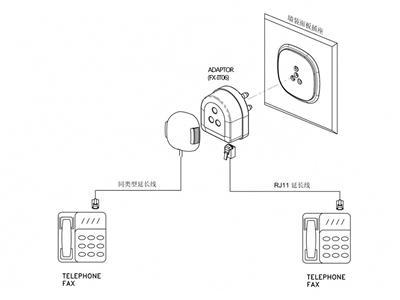

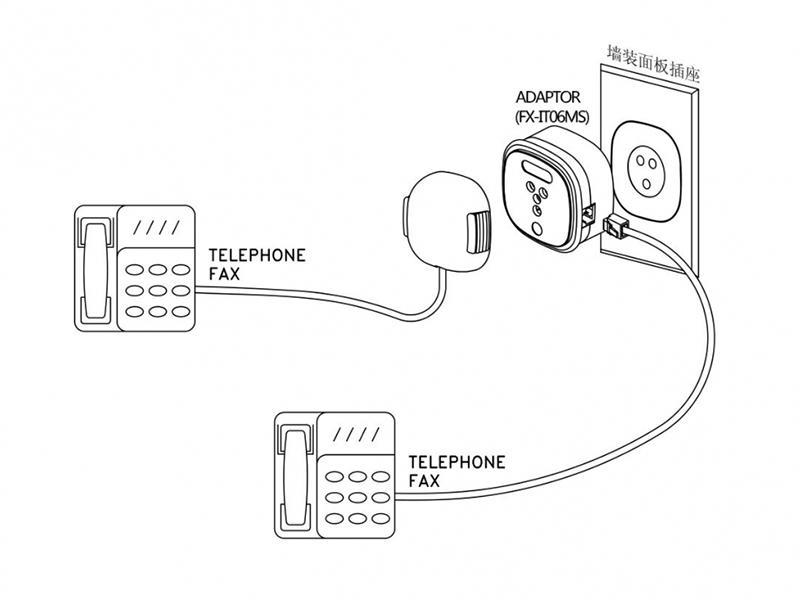

Installation

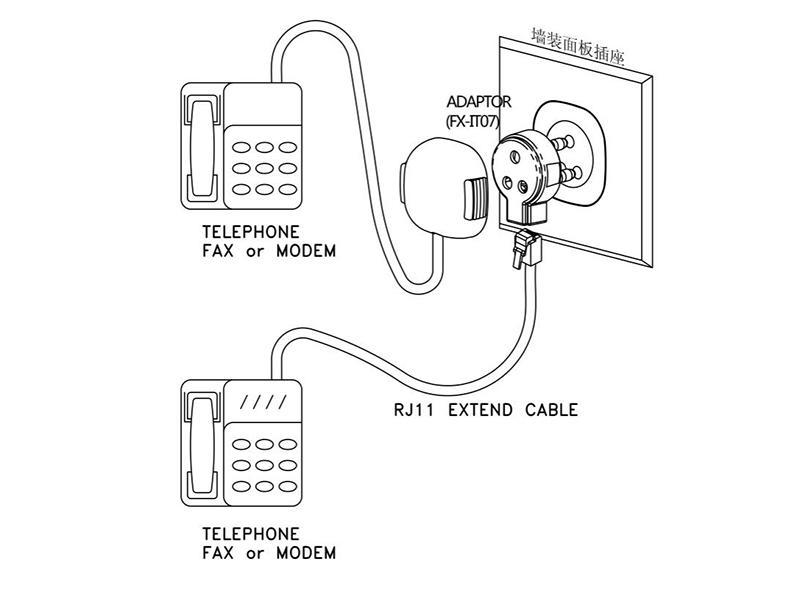

* Insert the plug of your adapter into the wall socket.
* Plug RJ11 extension cord to the RJ11 female jack of the adapter and connect the other end to a telephone or a fax machine.
* Italian extension cord can be plugged in the native female jack and the other end can be connected to another telephone or fax machine.
* Two telephones or fax machines can be used at the same time for adaption of different interfaces.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Pin and female pin: nickel plated brass
  RJ11/RJ12 jack: gold plated phosphor copper

Description

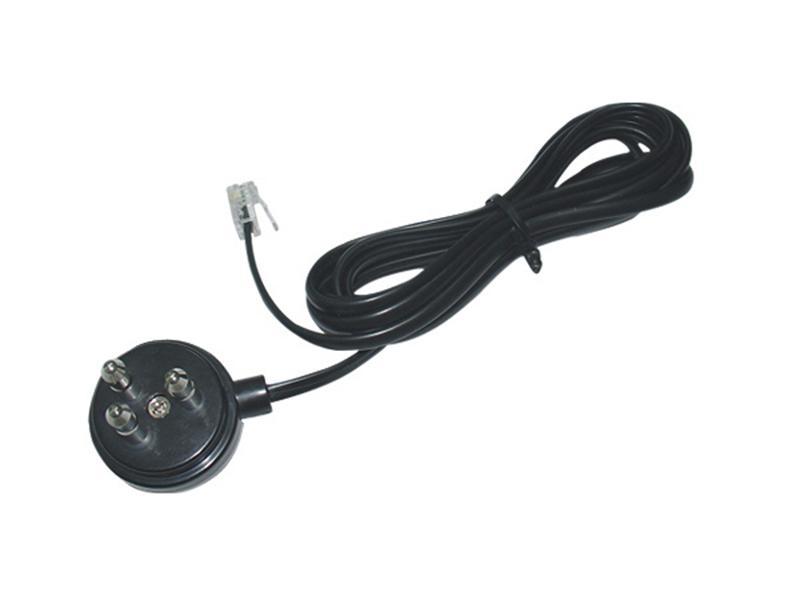

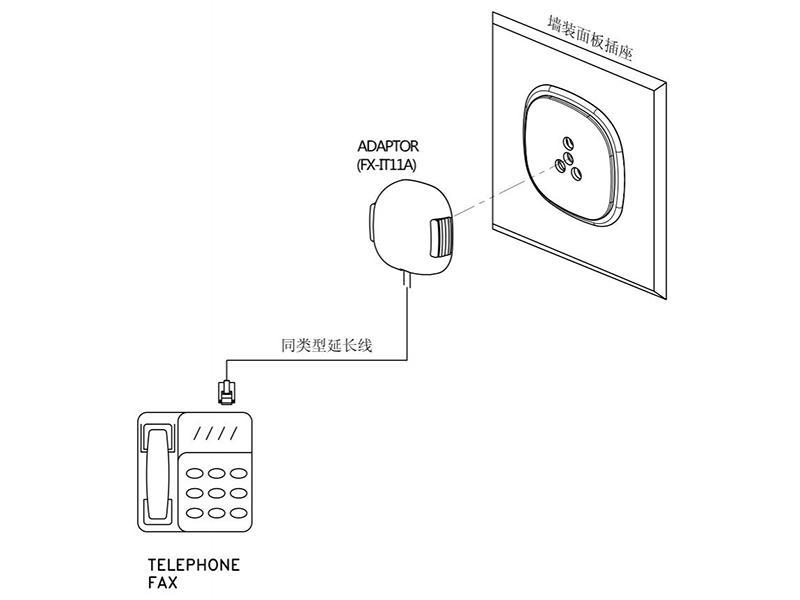

The telephone socket adapter, switching the Italian plug to the US (RJ11/RJ12) telecom plug, which can directly connect phones, fax machines and other communication devices.

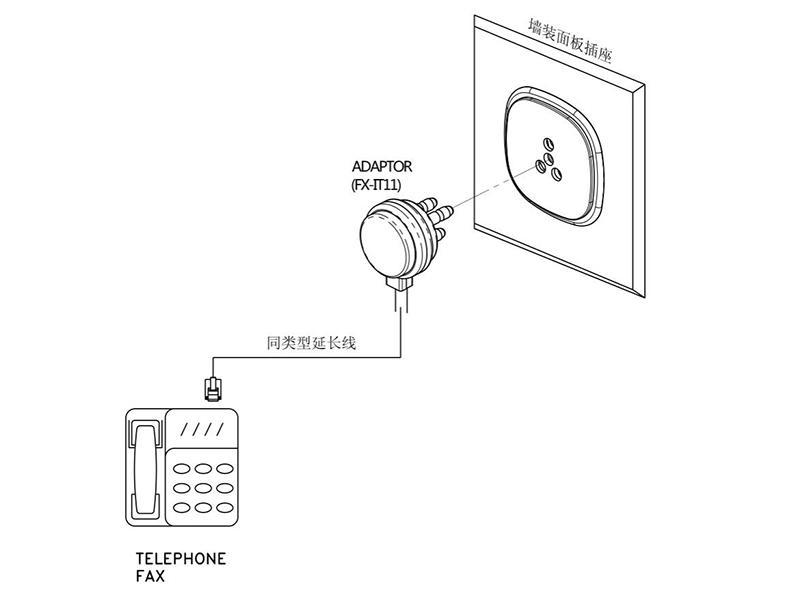

Installation

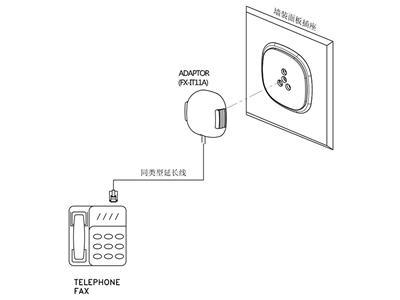

* Plug the adapter into the wall socket panel
* RJ11 extension cord can be plugged in the RJ11 female jack of the adapter, whose another end connects to a telephone or fax machine.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Telephone wire: 26AWG/28AWG pure copper core
  Pin: nickel plated brass
  RJ11/RJ12 socket: gold plated phosphor copper

Description

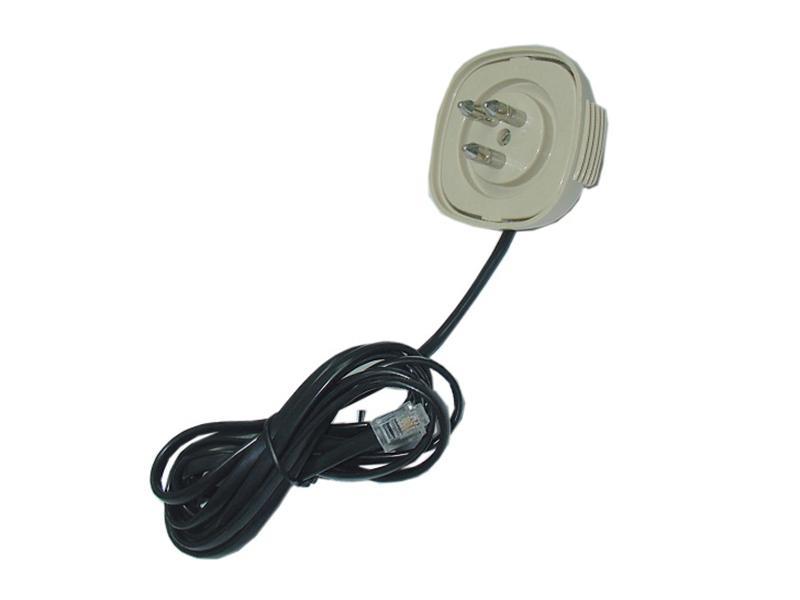

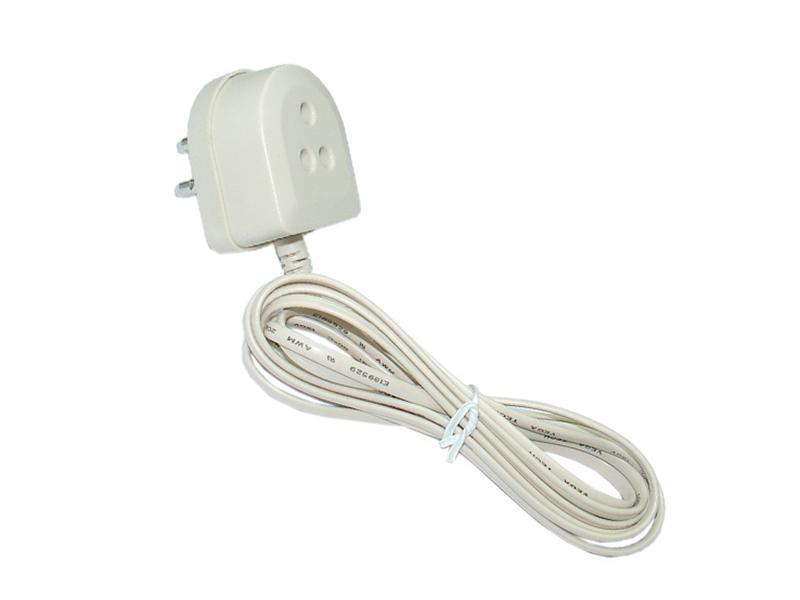

The phone splitter adapter, switching the Italian plug to the US (RJ11/RJ12) plug, which can directly connect to phones, fax machines and other communication devices. Meanwhile other Italian phone plugs can be connected to the female socket of the adapter.

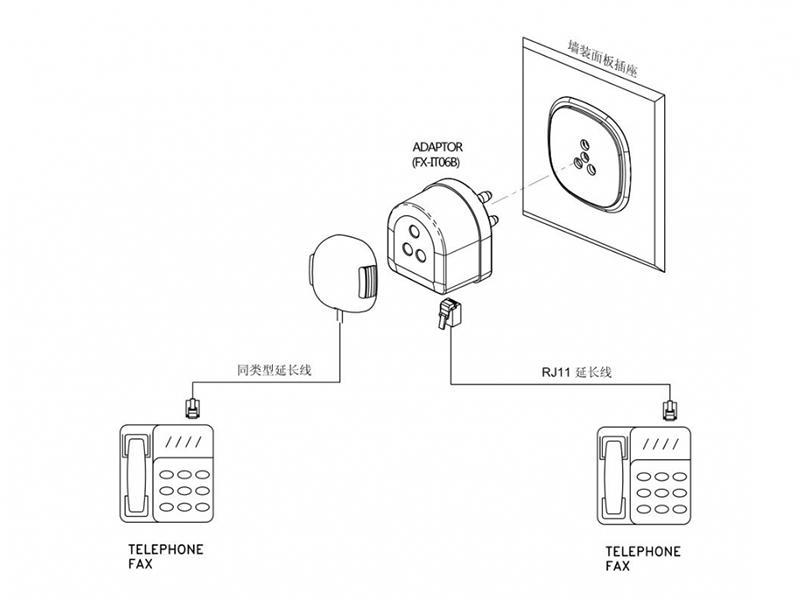

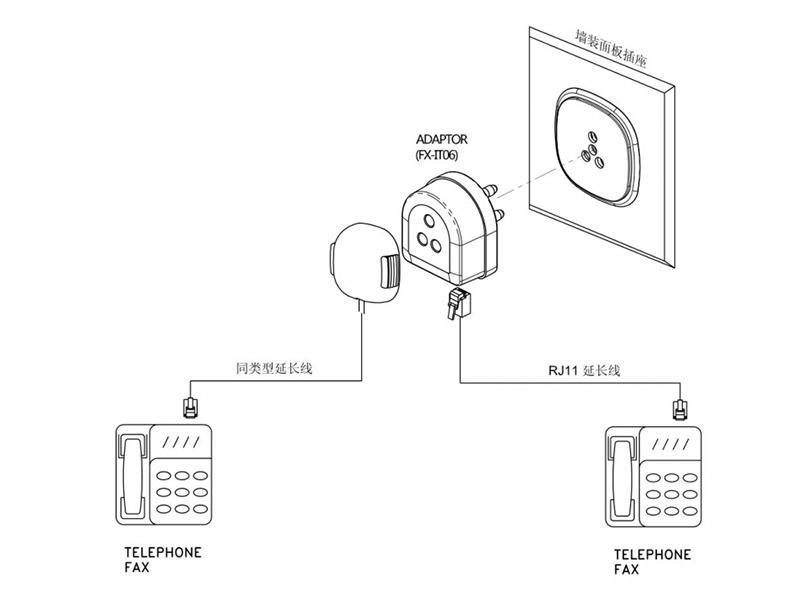

Installation
* Insert the plug of your adapter into the wall socket.
* Plug RJ11 extension cord to the RJ11 female jack of the adapter and connect the other end to a telephone or a fax machine.
* Italian extension cord can be plugged in the native female jack and the other end can be connected to another telephone or fax machine.
* Two telephones or fax machines can be used at the same time for adaption of different interfaces.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Telephone wire: 26AWG/28AWG pure copper core
  Pin: nickel plated brass
  RJ11/RJ12 socket: gold plated phosphor copper

Description

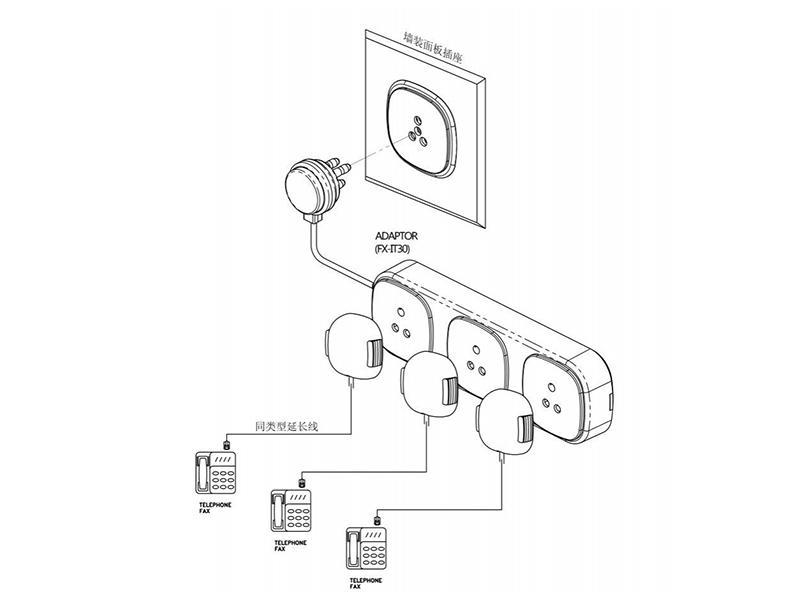

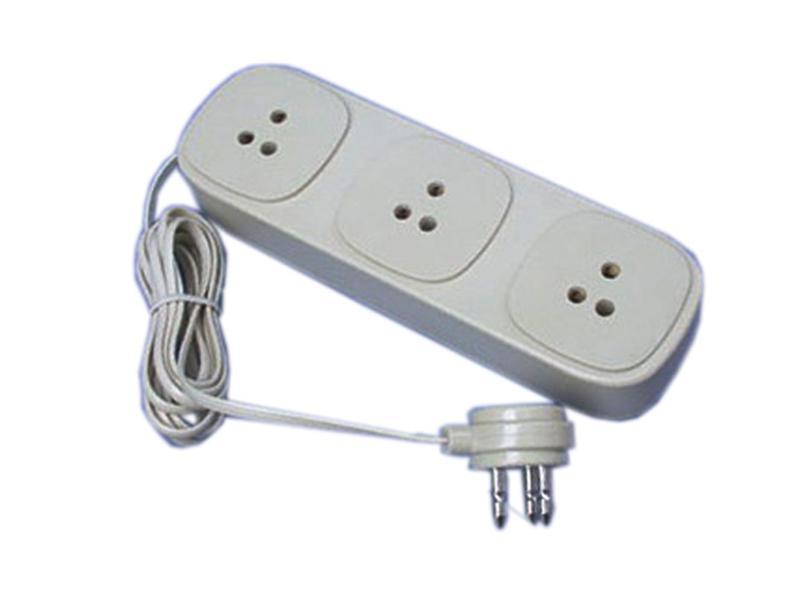

This socket adapter (extension socket) transform single Italian socket to three sockets, which can connect three telephone plugs.

Installation
* Insert the plug of your adaptor to the wall socket.
* The adapter features 3 Italian sockets, which can connect three telephone extension cables.

• Performance parameter

  Mechanical durability: 500 minimum insert and extract
  Contact resistance: <0.5Ω
  Insulation resistance: >100MΩ
  Compression strength: AC 1.0KV (50Hz for one minute), leakage current≤2.0mA, without breakdown or flashover phenomena.
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  Pin and female pin: nickel plated brass
  Telephone wire: 26AWG/28AWG pure copper core

Shown above are some of our telephone adapters made according to the socket types of the equipment. We have wall mount adapters and inline adapters according to the needs of your communication application. If you have specific needs, please let us know your complete list of specifications and we can provide custom products for your communication system.
